MBF1958XES3 02 – CABINET PARTS

MBF1958XES3 02 – CABINET PARTS

Written by

in

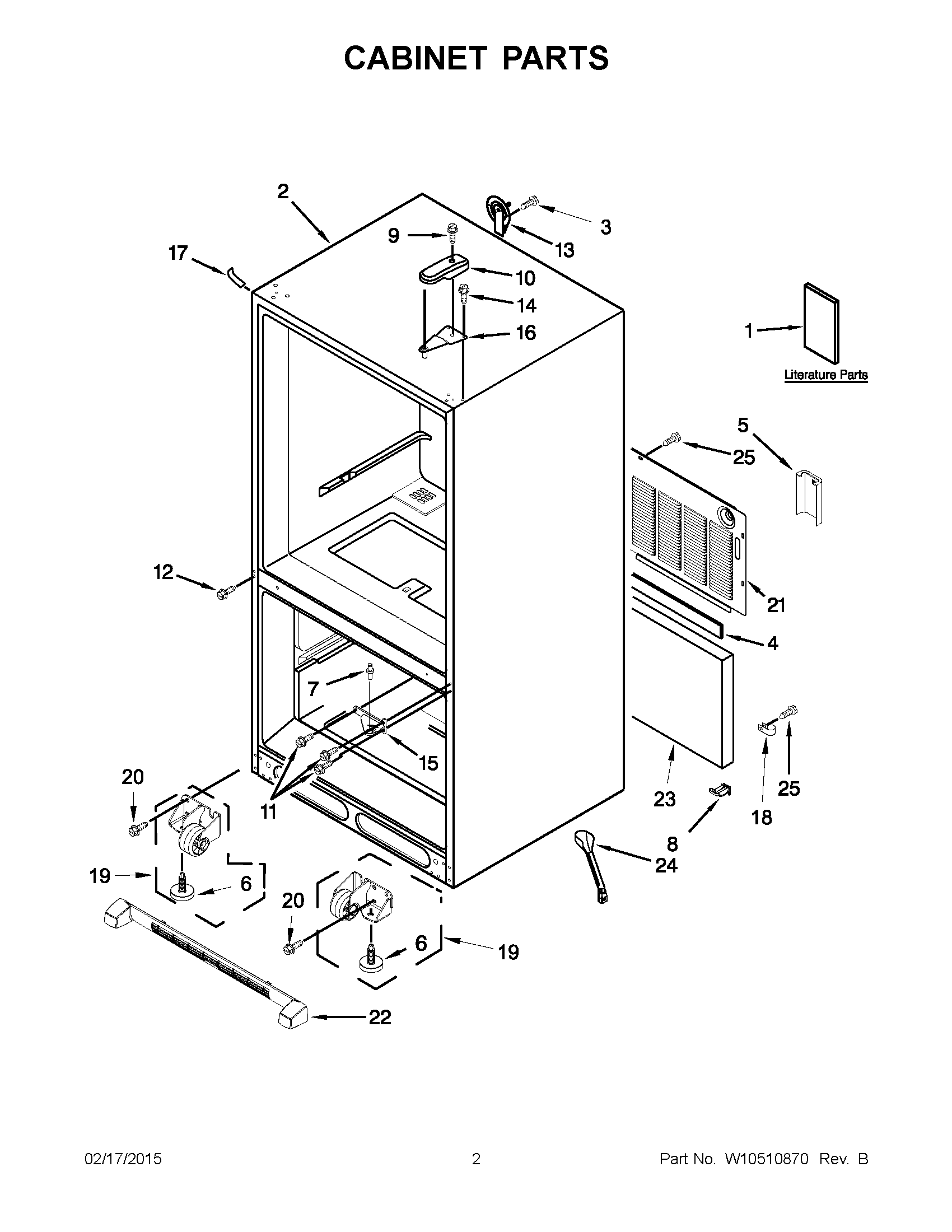

MBF1958XES3 02 – CABINET PARTS

Products

PositionProduct
1AMAY W10325960
1MAY W10366206SP
1BMAY W10475386
2LINER (NOT A SERVICEABLE PART)
3MAY 12990504
4MAY B5759655
5GUARD-WATER VALVE
6Brake, Foot
7MAY 10351006
8MAY W10216614
9MAY 12992602
10ACOVER, HINGE(BLACK)
10MAY 12477601W
11MAY 12990101
12Screw (8)
13MAY 12726003
14SCREW (6)
15MAY 12607103WD
15AMAY 12607104ED
16MAY 12566606ED
17Cover, Corner (2) (White)
17ACOVER, CORNER (BLACK)
18CLAMP, TUBE
19ROLLER ASSY. (FRONT) (LEFT)
19AROLLER ASSY. (FRONT) (RIGHT)
20Screw (8)
21MAY W10210978
22Grille Assembly (White)
22AGrille Assembly (Black)
23Insulation, Sound
24MAY W10210987
25SCREW (10)
