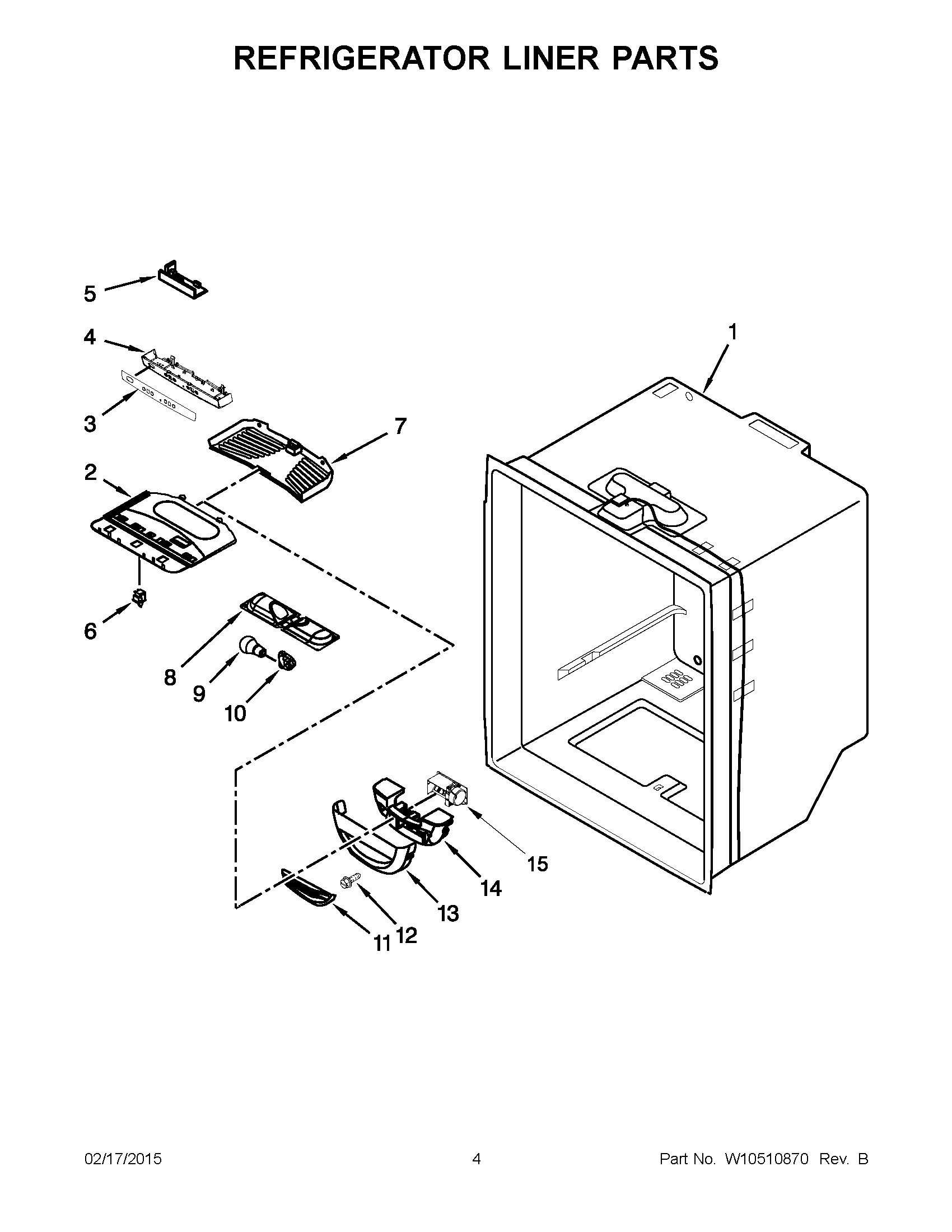

MBF1958XES3 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY 12868701
2	MAY W10464757
3	Overlay
4	MAY W10464769
5	MAY W10503278
6	Switch, Light (2)
7	MAY 12806501
8	MAY W10443023
9	DAMPER, CONTROL
10	Socket, Light
11	MAY 12806801
12	MAY 12990604
13	MAY 12806701
14	INSULATION
15	BULB, LIGHT (2)
