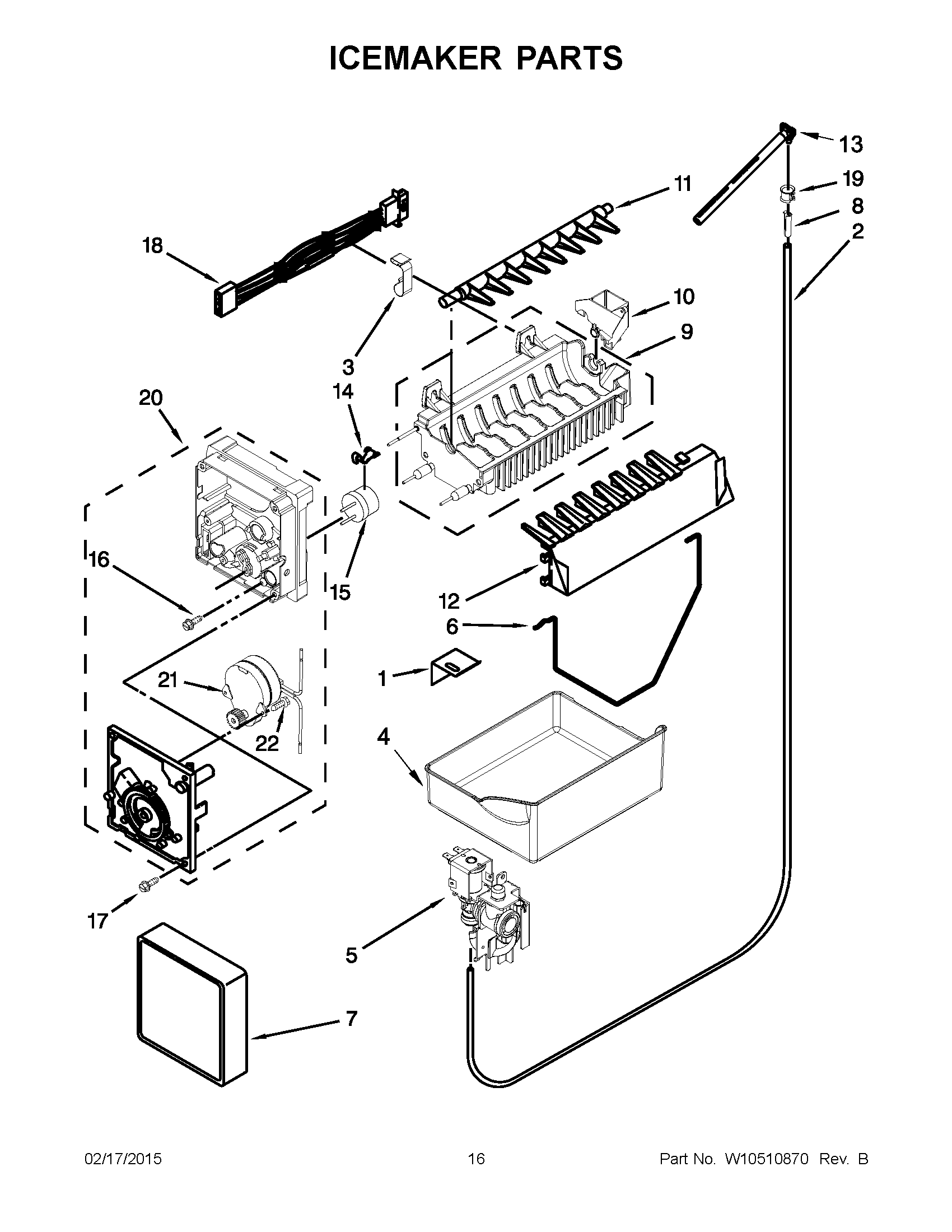

MBF1958XES3 09 – ICEMAKER PARTS

Products

Position	Product
1	MAY 2256086
2	MAY W10449192
3	CLAMP, WIRE
4	MAY W10171529
5	MAY W10420082
6	ARM-SHUT OFF
7	MAY W10377174
8	MAY A3223101
9	ASSEMBLY, MOLD AND HEATER
10	MAY W10410073
11	MAY W10318914
12	ICE STRIPPER
13	MAY 10463203
14	Clip
15	MAY W10290336
16	MAY 8533917
17	Screw (3)
18	MAY W10458985
19	Clip
20	ASSEMBLY, MODULE AND MOTOR
21	LINER (NOT A SERVICEABLE PART)
22	Screw (3)
100	ASSEMBLY, ICEMAKER (COMPLETE)
