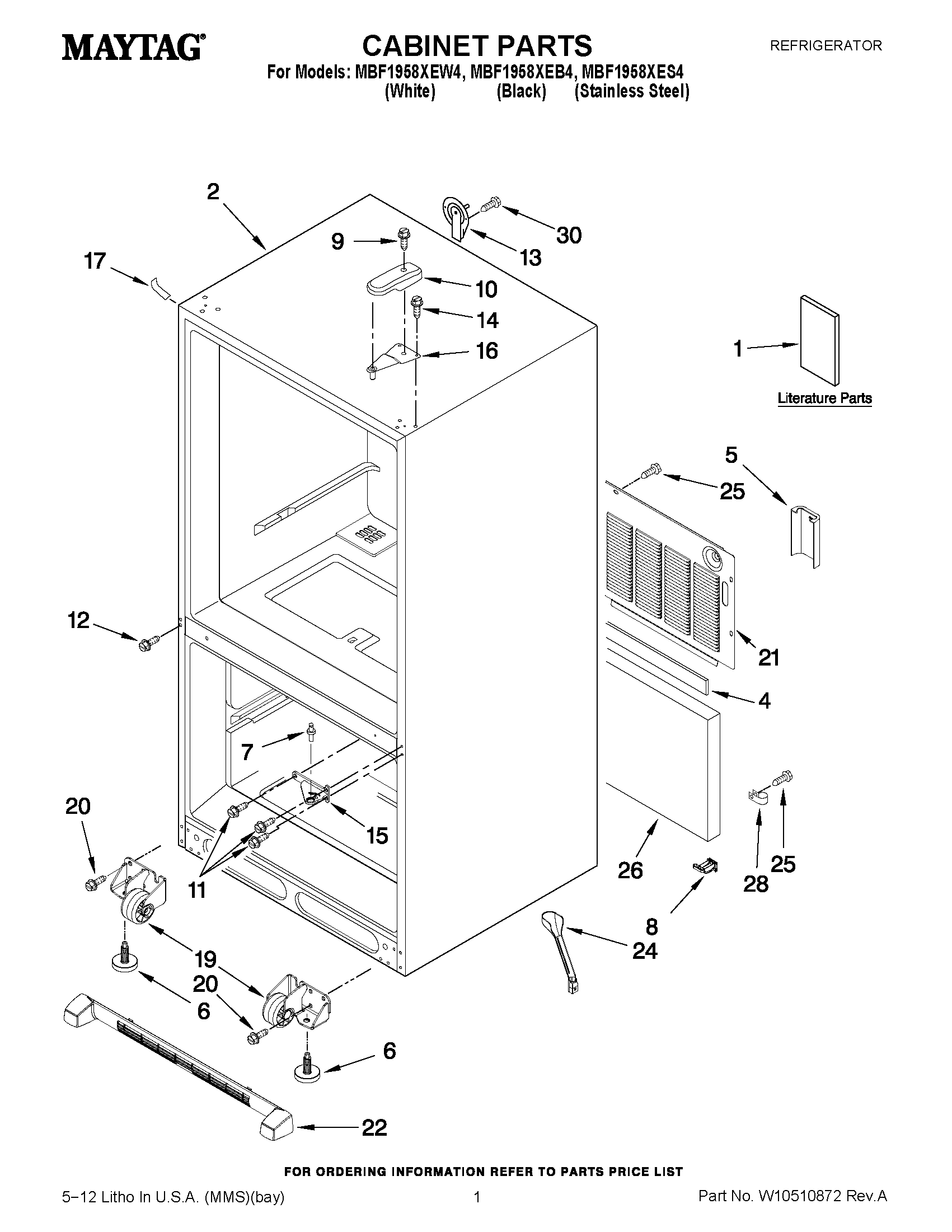

MBF1958XES4 01 – CABINET PARTS – Aparts

MBF1958XES4 01 – CABINET PARTS

Products

Position	Product
1	MAY W10496296
1	MAY W10325960
1	MAY W10366206SP
2	LINER (NOT A SERVICEABLE PART)
4	MAY B5759655
5	GUARD-WATER VALVE
6	Brake, Foot
7	MAY 10351006
8	MAY W10216614
9	MAY 12992602
10	COVER, HINGE(BLACK)
10	MAY 12477601W
11	MAY 12990101
12	Screw (8)
13	MAY 12726003
14	SCREW (6)
15	MAY 12607104ED
15	MAY 12607103WD
16	MAY 12566606ED
17	COVER, CORNER (BLACK)
17	Cover, Corner (2) (White)
19	ROLLER ASSY. (FRONT) (LEFT)
19	ROLLER ASSY. (FRONT) (RIGHT)
20	Screw (8)
21	MAY W10210978
22	Grille Assembly (Black)
22	Grille Assembly (White)
24	MAY W10210987
25	SCREW (10)
26	Insulation, Sound
28	CLAMP, TUBE
30	MAY 12990504
