MBF1958XES6 02 – CABINET PARTS – Aparts

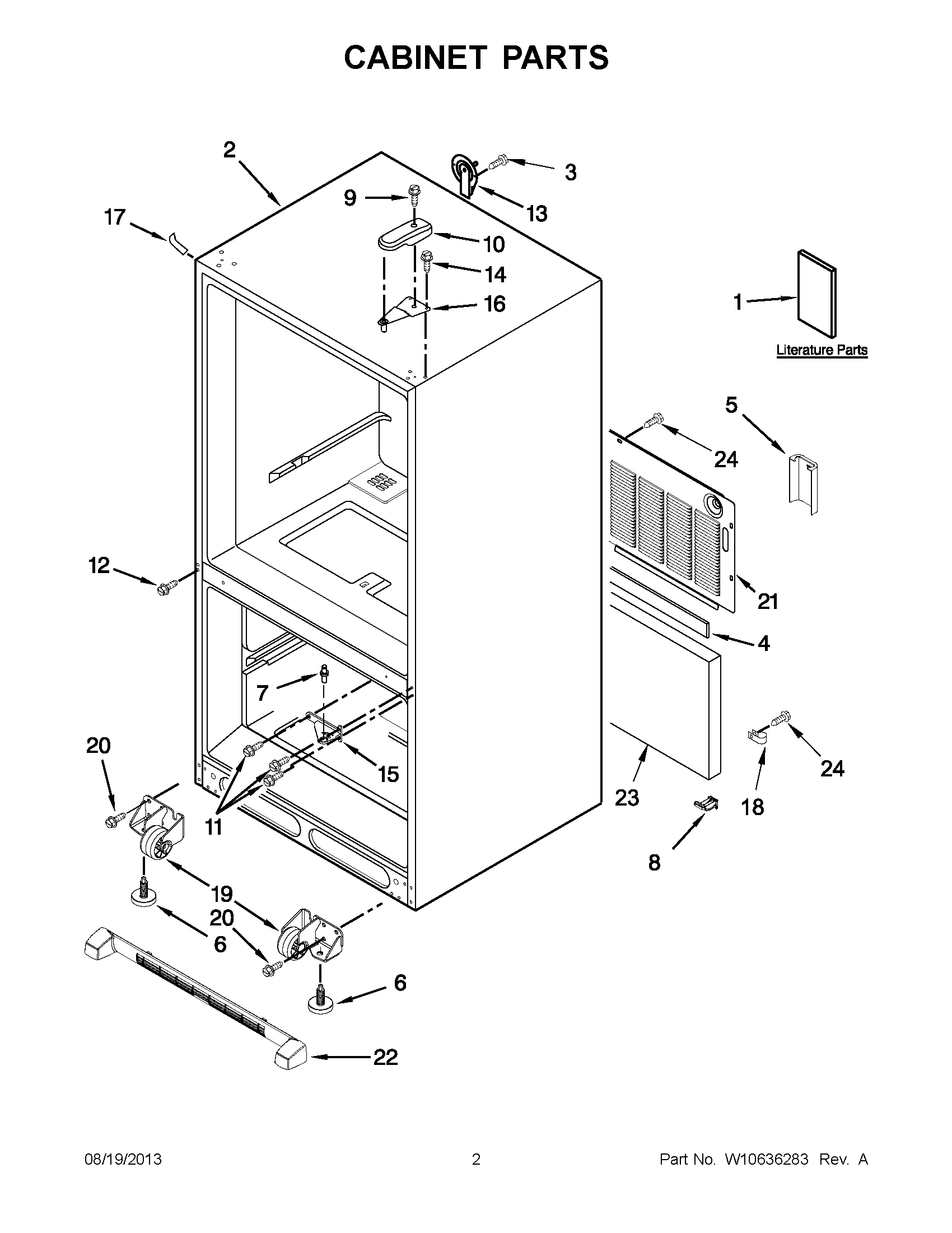

MBF1958XES6 02 – CABINET PARTS

Products

Position	Product
1	MAY W10325960
1	MAY W10366206SP
1	MAY W10517966
2	LINER (NOT A SERVICEABLE PART)
3	MAY 12990504
4	MAY B5759655
5	GUARD-WATER VALVE
6	Brake, Foot
7	MAY 10351006
8	MAY W10216614
9	MAY 12992602
10	MAY 12477601W
10	COVER, HINGE(BLACK)
11	MAY 12990101
12	Screw (8)
13	MAY 12726003
14	SCREW (6)
15	MAY 12607104ED
15	MAY 12607103WD
16	MAY 12566606ED
17	Cover, Corner (2) (White)
17	COVER, CORNER (BLACK)
18	CLAMP, TUBE
19	ROLLER ASSEMBLY (LEFT HAND)
19	ROLLER ASSEMBLY (RIGHT HAND)
20	Screw (8)
21	MAY W10210978
22	ASSEMBLY, GRILLE (BLACK)
22	ASSEMBLY, GRILLE (WHITE)
23	Insulation, Sound
24	SCREW (10)
