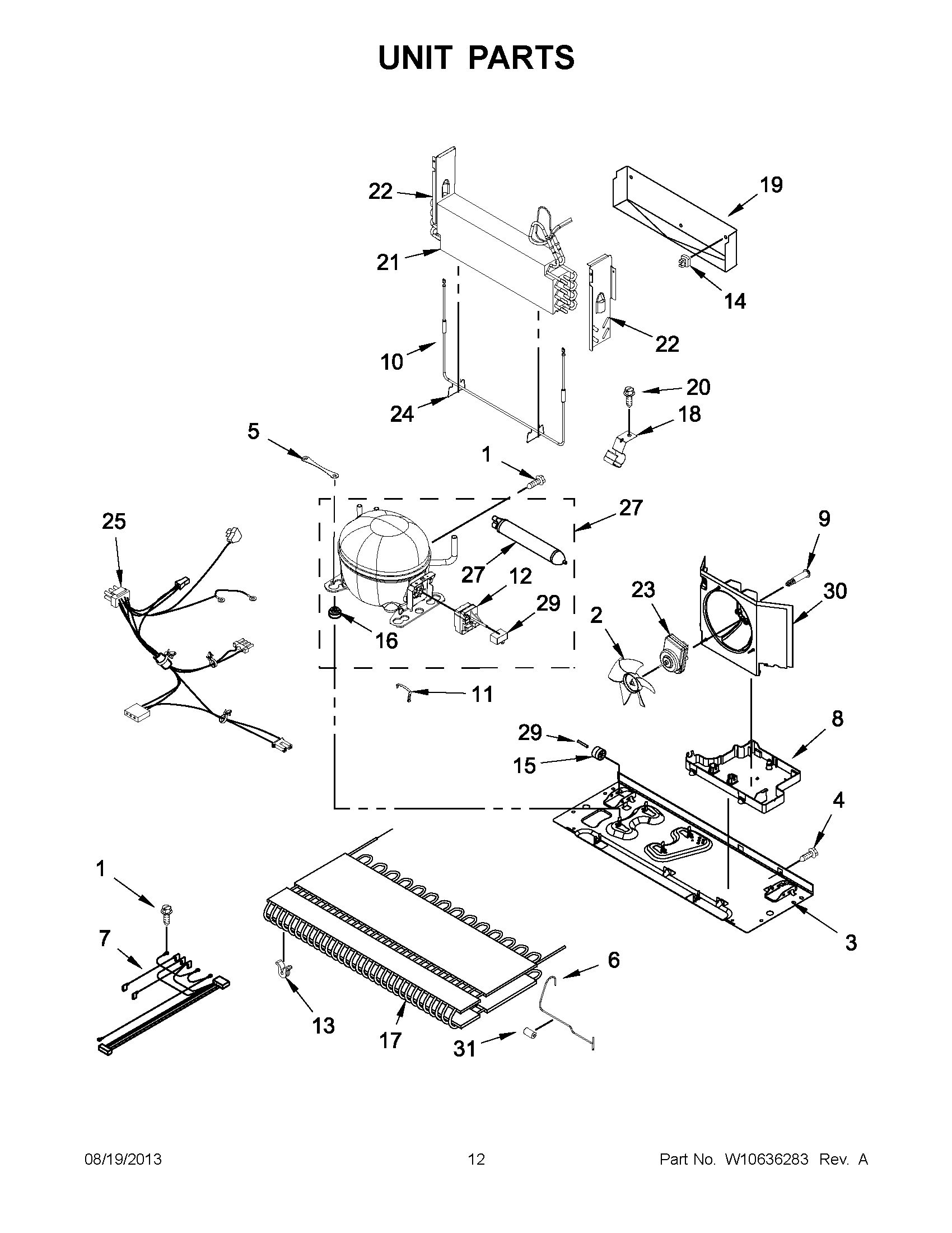

MBF1958XES6 07 – UNIT PARTSadmin2025-04-26T13:09:23+00:00MBF1958XES6 07 – UNIT PARTS
Products
| Position | Product |
|---|
| NI | VALVE, ACCESS (1/4``) |
| NI | Valve, Access (1/2``) |
| NI | VALVE, ACCESS (3/8``) |
| NI | Valve, Access (5/16``) |
| NI | Valve, Access (3/4``) |
| NI | MAY 876764 |
| NI | Valve, Access (5/8``) |
| NI | LINER (NOT A SERVICEABLE PART) |
| 1 | MAY 12992301 |
| 2 | MAY 12825803 |
| 3 | MAY W10480107 |
| 4 | SCREW (10) |
| 5 | MAY W10236396 |
| 6 | MAY W10294014 |
| 7 | HARNESS, EVAPORATOR (INCLUDES HEATER) |
| 8 | MAY W10296784 |
| 9 | MAY W10216919 |
| 10 | HEATER, EVAPORATOR |
| 11 | MAY W10174384 |
| 12 | DEVICE, START |
| 13 | GROMMET, COND (4) |
| 14 | MAY 10623002 |
| 15 | Roller (2) |
| 16 | Grommet (4) |
| 17 | MAY W10346423 |
| 18 | MAY W10281329 |
| 19 | MAY W10292801 |
| 20 | MAY 12990701 |
| 21 | MAY W10317012 |
| 22 | Dam (Right Side) |
| 22 | DAM (LEFT SIDE) |
| 23 | MAY W10239053 |
| 24 | W11673433 Whirlpool Clip |
| 25 | MAY W10234031 |
| 26 | Drier |
| 27 | COMPRESSOR KIT (CONTAINS ITEMS 12, 17, 27, & 29) |
| 28 | MAY W10350564 |
| 29 | Axle, Roller (2) |
| 30 | SHROUD |
| 31 | GROMMET, CONDENSER |
