MBF1958XEW2 01 – CABINET PARTS – Aparts

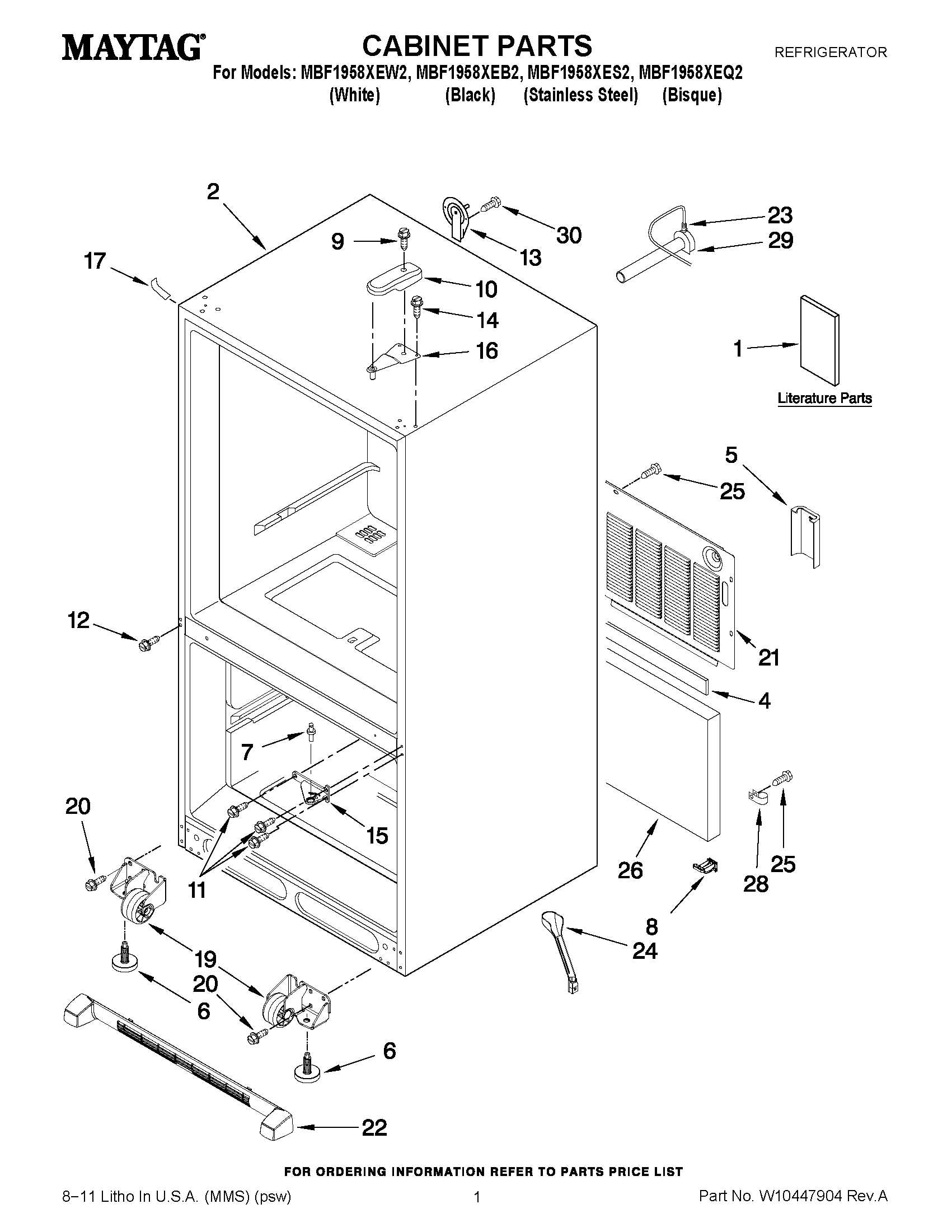

MBF1958XEW2 01 – CABINET PARTS

Products

Position	Product
1	MAY W10325960
1	MAY W10322959
1	MAY W10366206
2	LINER (NOT A SERVICEABLE PART)
4	MAY B5759655
5	GUARD-WATER VALVE
6	Brake, Foot
7	MAY 10351006
8	MAY W10216614
9	MAY 12992602
10	MAY 12477601W
10	COVER, HINGE(BLACK)
10	MAY 12477601C
11	MAY 12990101
12	Screw (8)
13	MAY 12726003
14	SCREW (6)
15	MAY 12607103WD
15	MAY 12607104ED
16	MAY 12566606ED
17	Cover, Corner (Bisque)
17	COVER, CORNER (BLACK)
17	Cover, Corner (2) (White)
19	ROLLER ASSY. (FRONT) (LEFT)
19	ROLLER ASSY. (FRONT) (RIGHT)
20	Screw (8)
21	MAY W10210978
22	Grille Assembly (White)
22	Grille Assembly (Black)
22	MAY W10236651
23	CLIP
24	MAY W10210987
25	SCREW (10)
26	Insulation, Sound
28	CLAMP, TUBE
29	MAY 10463203SP
30	MAY 12990504
