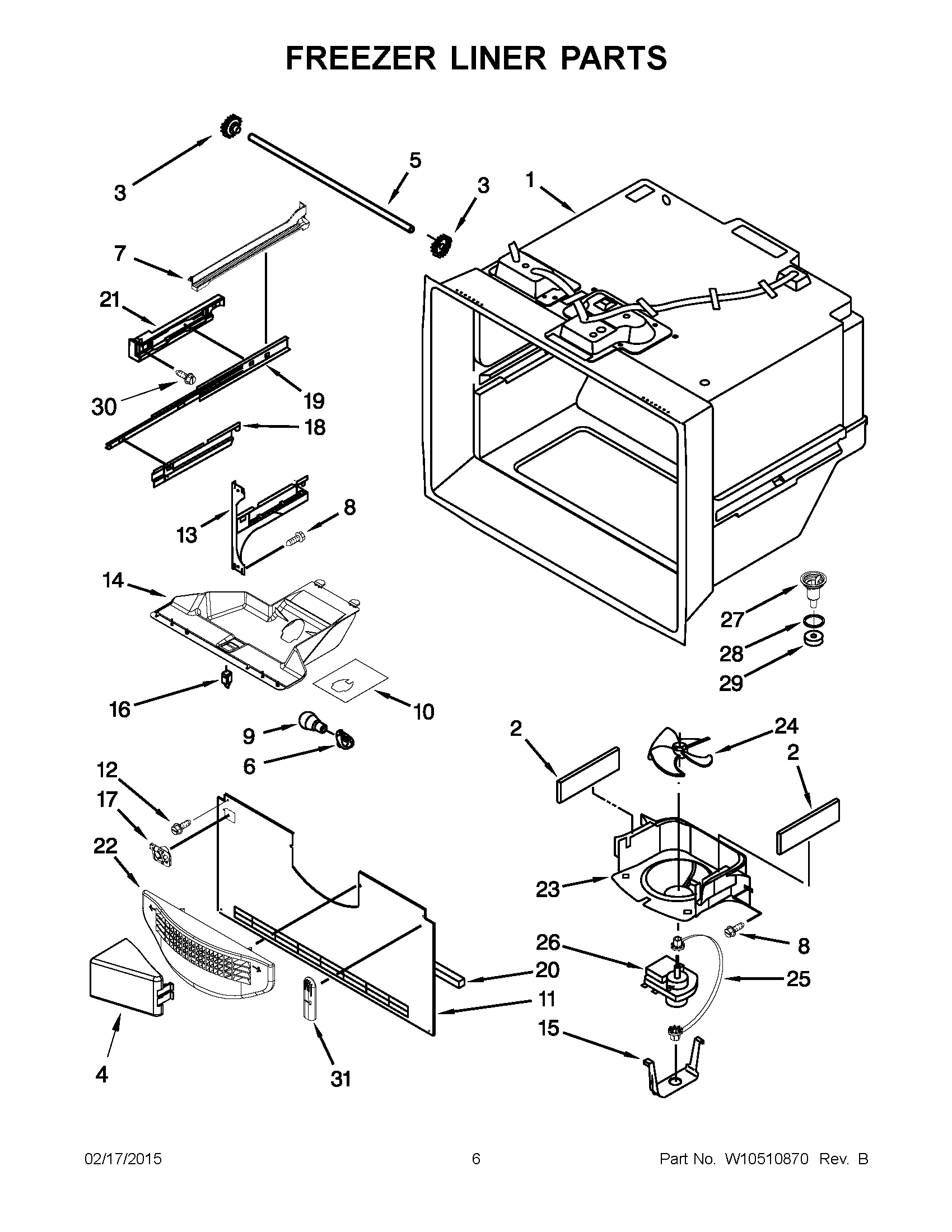

MBF1958XEW3 04 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Gasket, Bottom
3	12002497 Whirlpool Refrigerator Drawer Gear Kit
4	MAY W10157765
5	SHAFT-RACK
6	Socket, Light
7A	RACK-SIDE (RIGHT)
7	RACK-SIDE (LEFT)
8	Screw (8)
9	BULB, LIGHT
10	FOIL-FZ LIGHT
11	MAY W10308414
12	MAY 12990101
13A	BRACKET, DOOR (RIGHT)
13	BRACKET, DOOR (LEFT)
14	MODULE-FZ LIGHT
15	CLIP, EVAP. MOTOR
16	MAY 12466105
17	MAY 12932103
18	CRADLE-BASKET (LEFT HAND)
18A	CRADLE-BASKET (RIGHT HAND)
19	MAY W10120018
20	Gasket, Bottom
21A	ADAPTER, SLIDE (RIGHT HAND)
21	ADAPTER, SLIDE (LEFT HAND)
22	Grille, Fz Air
23	SHROUD, EVAP.FAN
24	Blade, Fan (Evaporator)
25	MAY W10150583
26	MAY 13062901
27	MAY D7753903
28	MAY M0500703
29	Gasket
30	Screw (6)
31	MAY 12815301
