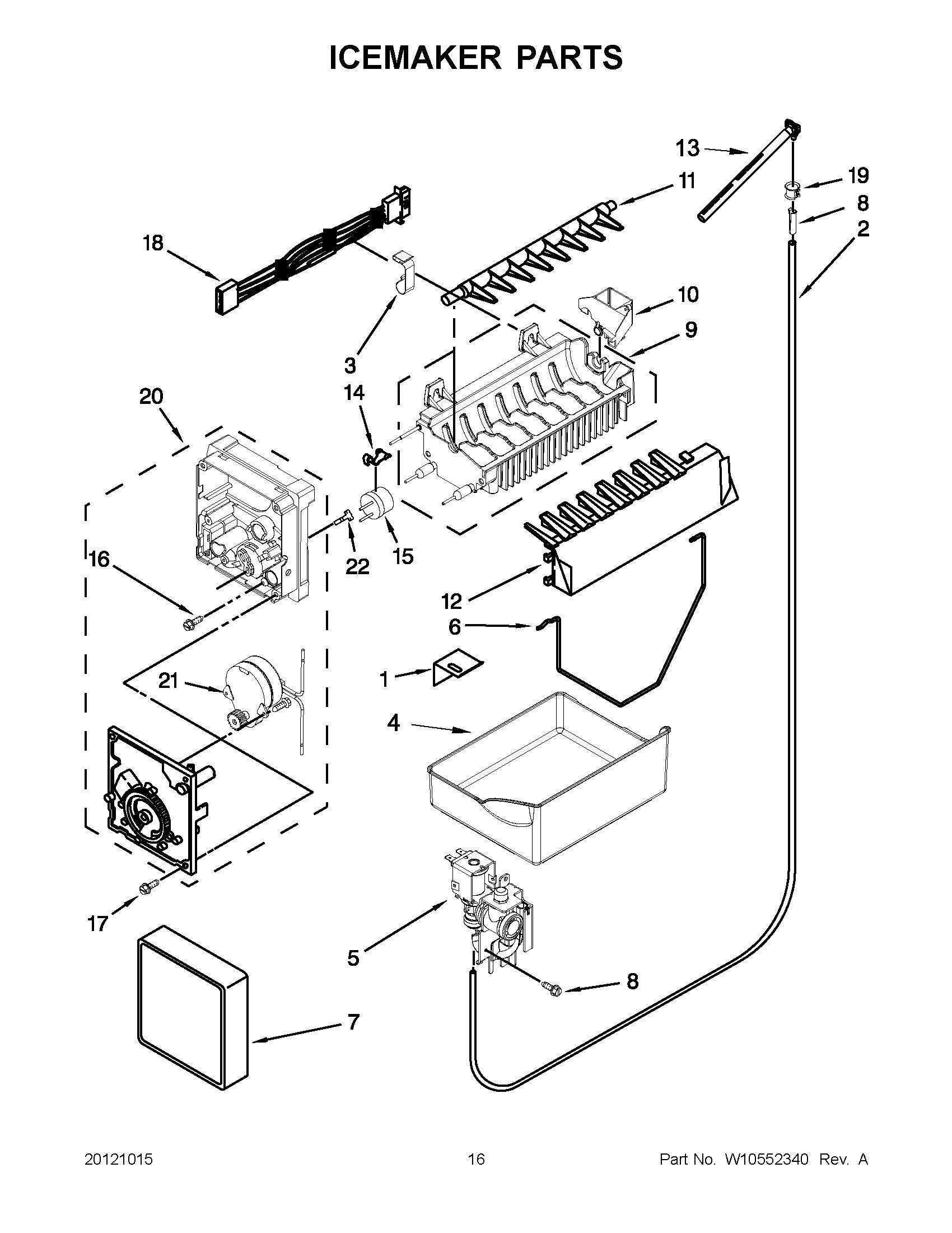

MBF1958XEW5 08 – ICEMAKER PARTS

Products

PositionProduct
1MAY 2256086
2MAY W10449192
3CLAMP, WIRE
4MAY W10171529
5MAY W10420082
6ARM, SHUT OFF
7Cover
8MAY A3223101
9ASSEMBLY, MOLD AND HEATER
10MAY W10410073
11MAY W10318914
12ICE STRIPPER
13MAY 10463203
14Clip
15MAY W10290336
16MAY 8533917
17Screw (3)
18MAY W10458985
19Clip
20ASSEMBLY, MODULE AND MOTOR
21LINER (NOT A SERVICEABLE PART)
22MAY 2315522
100ASSEMBLY, ICEMAKER (COMPLETE)
