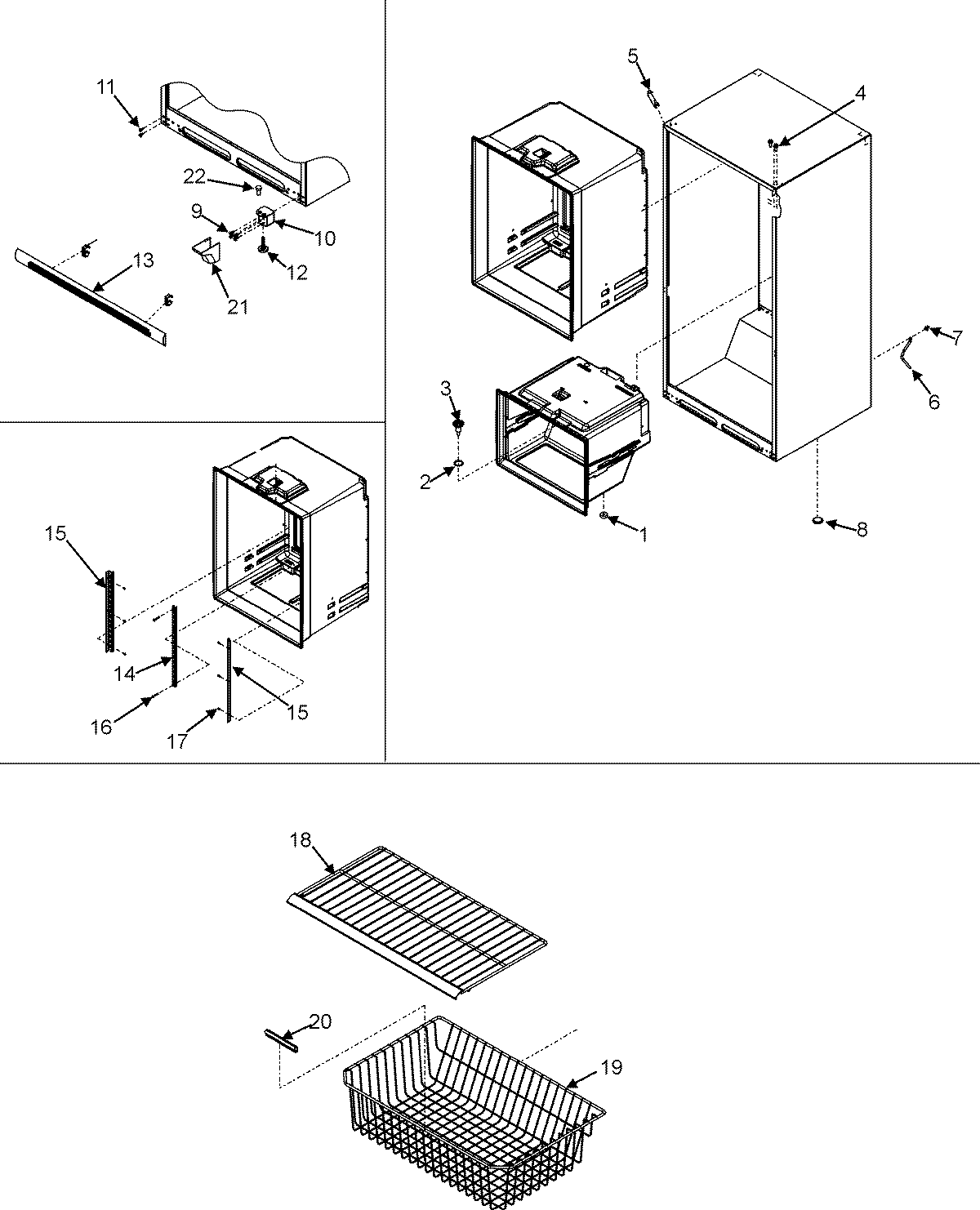

MBF2254HEB 08 – INTERIOR CABINET & FREEZER SHELVES

MBF2254HEB 08 – INTERIOR CABINET & FREEZER SHELVES

Written by

in

MBF2254HEB 08 – INTERIOR CABINET & FREEZER SHELVES

Products

PositionProduct
1Gasket
2MAY M0500703
3MAY D7753903
4MAY A4539607
567003485 Whirlpool Refrigerator Corner Cover (Black)
6MAY 67001066
767001067 Whirlpool Refrigerator Drain Tube Clip
8A3076901 Whirlpool Refrigerator Plug
9MAY 67003858
10MAY 67001068
11MAY M0233847
12MAY 10354001
13Clip, Grille
13WP67002224 Whirlpool Refrigerator Grille Assembly
1467001073 Whirlpool Refrigerator Center Ladder
15LADDER, SIDES
16MAY M0231425
17SCREW, SM
18MAY 67001075
19MAY 67003330
20HANDLE, BASKET/SHELF
21Cover, Lw Hinge (Black)
22PLUG, BUTTON
