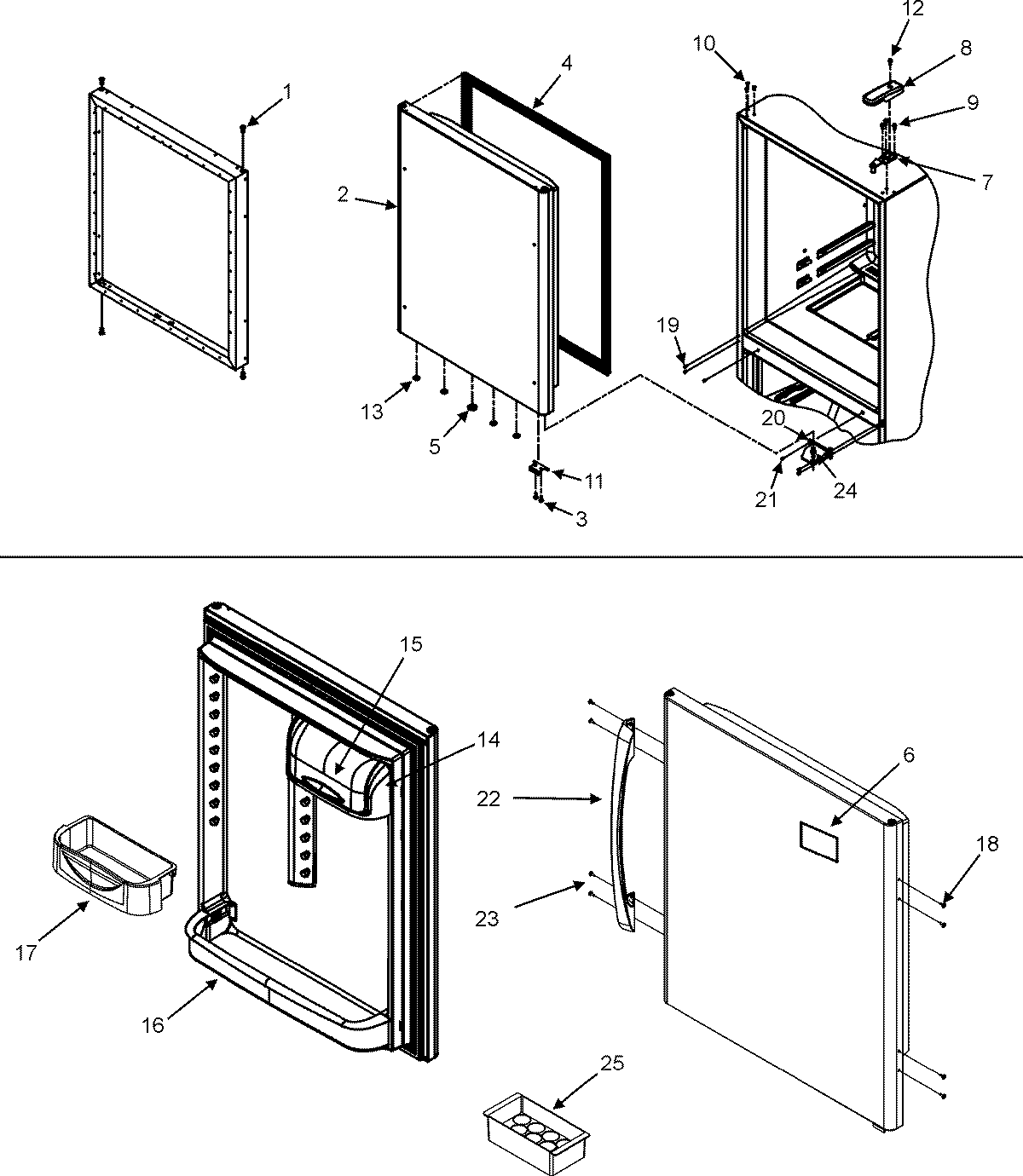

MBF2254HEQ 09 – REFRIGERATOR DOOR

Products

Position	Product
1	WP67004977 Whirlpool Refrigerator Door Hinge Bushing
2	MAY 67004361
4	W10443313 Whirlpool Door Gasket
5	MAY A3080002
6	2324038 Whirlpool Refrigerator Nameplate
7	WP12566606ED Whirlpool Refrigerator Door Hinge
8	MAY 67001013
9	MAY M0238731
10	MAY M0310738
11	67003781 Whirlpool Refrigerator Door Stop (BSQ)
12	MAY M0211533
13	10712401 Whirlpool Refrigerator Vent Plug (White)
14	WP67001279 Whirlpool Refrigerator Dairy Tray
15	WP67003637 Whirlpool Dairy Door
16	RETAINER, DOOR
17	67004040 Whirlpool Refrigerator Bucket Door
18	MAY 12246604
19	WP489349 Whirlpool Refrigerator Screw
20	WP12607103WD Whirlpool Refrigerator Center Hinge
21	MAY M0226233
22	MAY 67004043
23	67004707 Whirlpool Refrigerator Hi Torque Screw (BSQ)
24	MAY 10351001
24	MAY M0274057
25	MAY 67215-2
