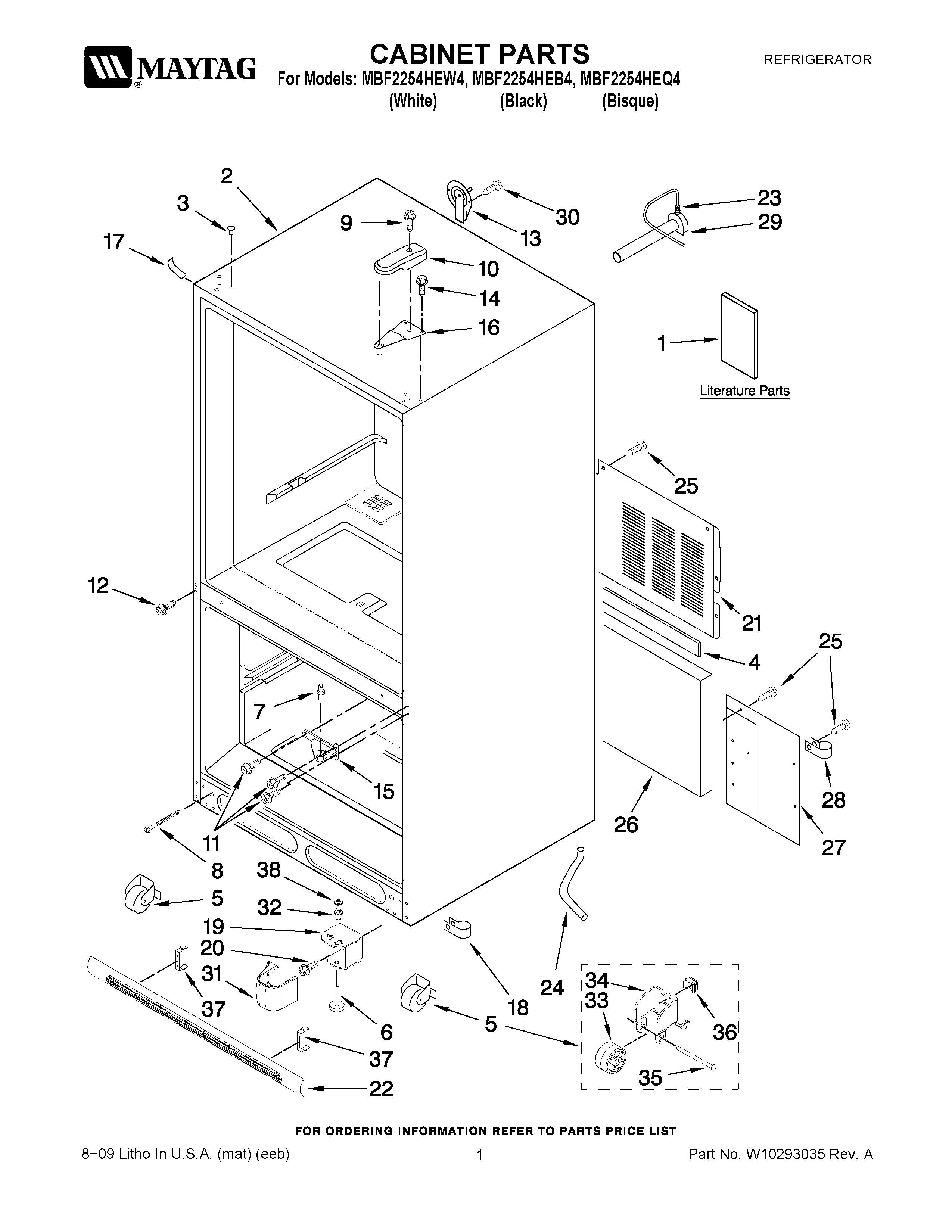

MBF2254HEQ4 01 – CABINET PARTS

Products

Position	Product
1	MAY W10165418
1	MAY W10123884
1	Owners Manual
2	LINER (NOT A SERVICEABLE PART)
3	MAY M0310731
3	MAY M0310729
3	MAY M0310738
4	Gasket
5	Roller Assy.(Rear)
6	W11177593 Whirlpool Leveling Feet
7	WP67006744 Whirlpool Refrigerator Center Pin
8	71003131 Whirlpool Oven Screw
9	WP8281196 Whirlpool Screw
10	MAY 67001013
10	67001014 Whirlpool Refrigerator Top Hinge Cover White
10	67001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
11	MAY 67005822
12	Screw (8)
13	COVER, WATER LINE
14	WP489349 Whirlpool Refrigerator Screw
15	WP12607103WD Whirlpool Refrigerator Center Hinge
15	WP12607104ED Whirlpool Refrigerator Door Hinge
16	Hinge, Top
17	67003484 Whirlpool Refrigerator White Corner Cover
17	MAY 67003486
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
18	67001067 Whirlpool Refrigerator Drain Tube Clip
19	MAY 67001068
19	12465002WD Whirlpool Refrigerator Bottom Hinge
20	MAY 67006564
21	MAY 67006101
22	WP67002224 Whirlpool Refrigerator Grille Assembly
22	MAY 67002390
22	TOE GRILLE ASSY (WHT)
23	Clip
24	MAY 67001066
25	Screw (10)
26	67003796 Whirlpool Refrigerator Fiber Acoustic
27	MAY 67001097
28	W10833902 Whirlpool Refrigerator Clamp
29	MAY W10137519
30	WP98165 Whirlpool Screw
31	Cover, Lw Hinge (Black)
31	MAY 12561901W
31	MAY 12561901C
32	67007018 Whirlpool Refrigerator Bottom Hinge PIN
33	WP10450603 Whirlpool Refrigerator Roller
34	12456801V Whirlpool Refrigerator Bracket
35	MAY M1205302
36	MAY M0286708
37	Clip, Grille
38	MAY M0274057
38	MAY M0274062
