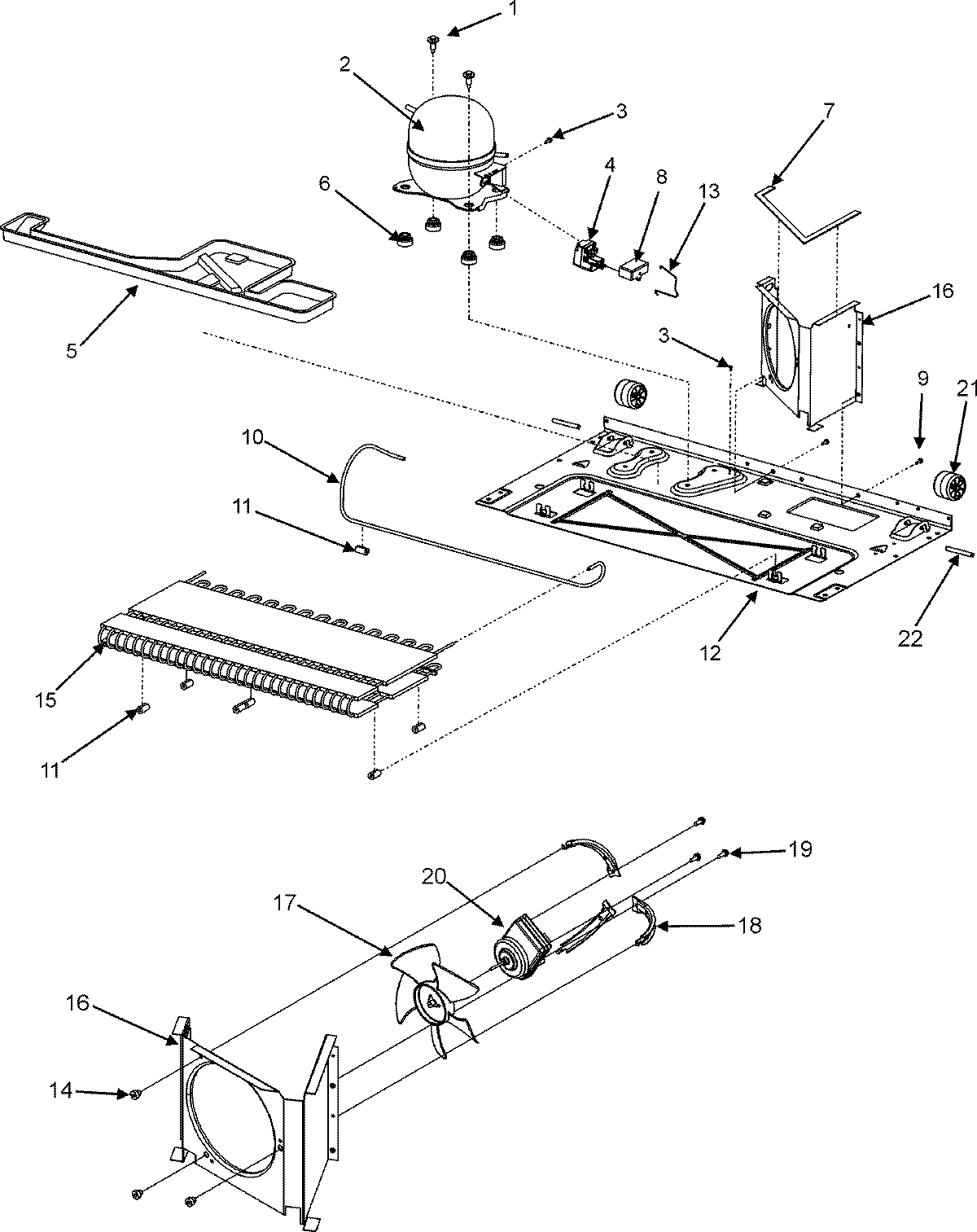

MBF2254HEW 03 – COMPRESSOR (SERIES 11)

Products

Position	Product
1	MAY M0221523
2	W10160407 Whirlpool Refrigerator Compressor
3	MAY M0231604
4	W10613606 Whirlpool Refrigerator Start Device Relay Overload
5	MAY 67001091
6	67003493 Whirlpool Refrigerator Compressor Grommet
7	WP854334 Whirlpool Air Conditioner Sealing Strip
8	CAPACITOR
9	MAY M0238616
10	MAY 67001092
11	67005680 Whirlpool Refrigerator Condenser Grommet
12	MAY 67001089
13	MAY 12576801
14	GROMMET, BRACKET
15	WP67006132 Whirlpool Refrigerator Condenser
16	SHROUD, CONDENSER FAN
17	W10156818 Whirlpool Refrigerator Fan Blade
18	MAY 67004953
19	WP67004954 Whirlpool Refrigerator Screw
20	MAY 67004432
21	WP67005149 Whirlpool Roller
22	67006434 Whirlpool Axle Pin
