MBF2254HEW 09 – REFRIGERATOR DOOR

MBF2254HEW 09 – REFRIGERATOR DOOR

Written by

in

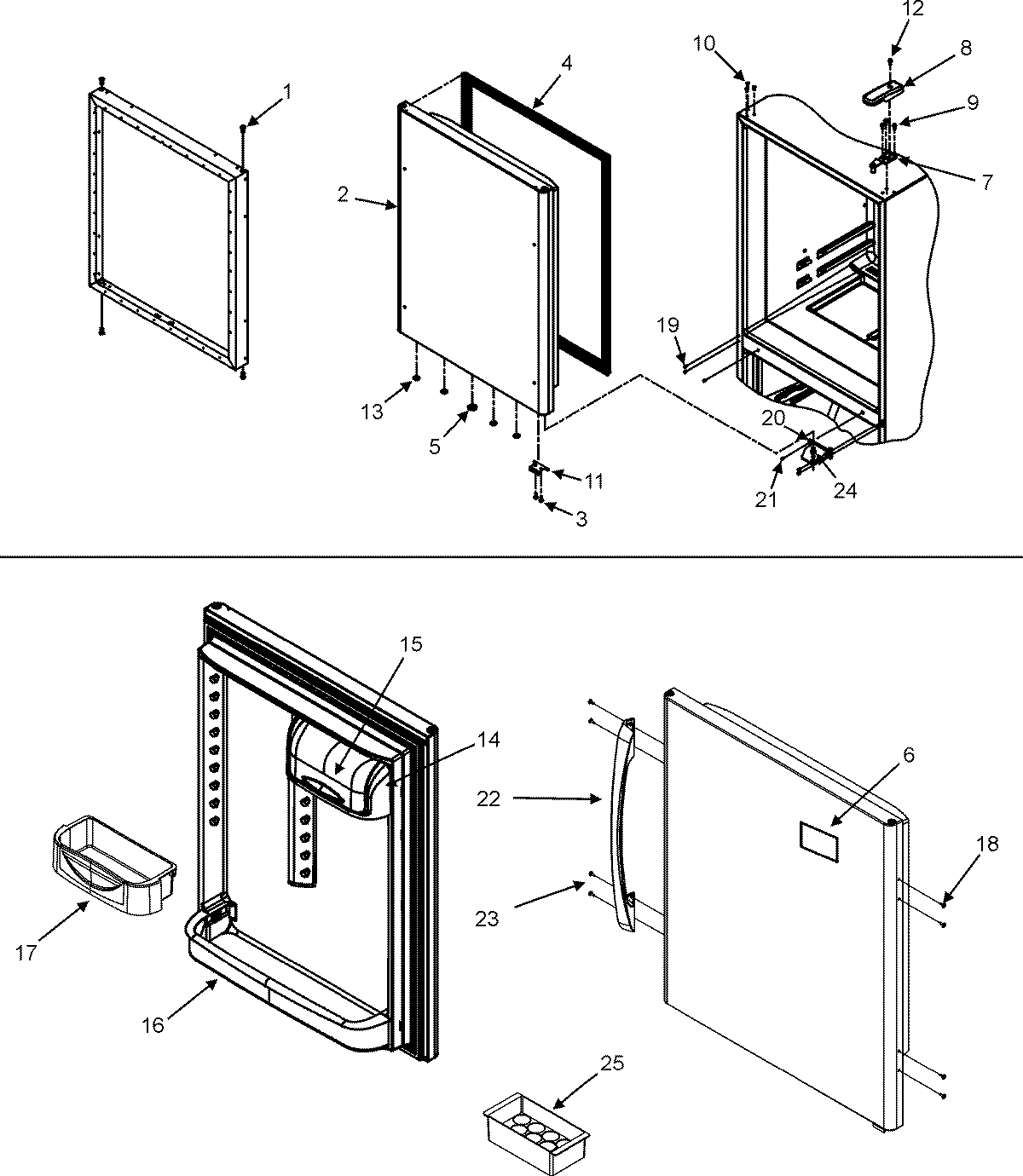

MBF2254HEW 09 – REFRIGERATOR DOOR

Products

PositionProduct
1WP67004977 Whirlpool Refrigerator Door Hinge Bushing
2DOOR ASSY., REF. FOAM (WHT)
4W10443313 Whirlpool Door Gasket
5MAY A3080002
62324038 Whirlpool Refrigerator Nameplate
7WP12566606ED Whirlpool Refrigerator Door Hinge
867001014 Whirlpool Refrigerator Top Hinge Cover White
9MAY M0238731
10MAY M0310729
11MAY 10447108
12MAY M0211533
1310712401 Whirlpool Refrigerator Vent Plug (White)
14WP67001279 Whirlpool Refrigerator Dairy Tray
15WP67003637 Whirlpool Dairy Door
16RETAINER, DOOR
1767004040 Whirlpool Refrigerator Bucket Door
18MAY 12246601
19WP489349 Whirlpool Refrigerator Screw
20WP12607103WD Whirlpool Refrigerator Center Hinge
21MAY M0226233
22MAY 67004044
23MAY 67004046
24MAY 10351001
24MAY M0274057
25MAY 67215-2
