MBF2254HEW4 04 – REFRIGERATOR LINER PARTS

MBF2254HEW4 04 – REFRIGERATOR LINER PARTS

Written by

in

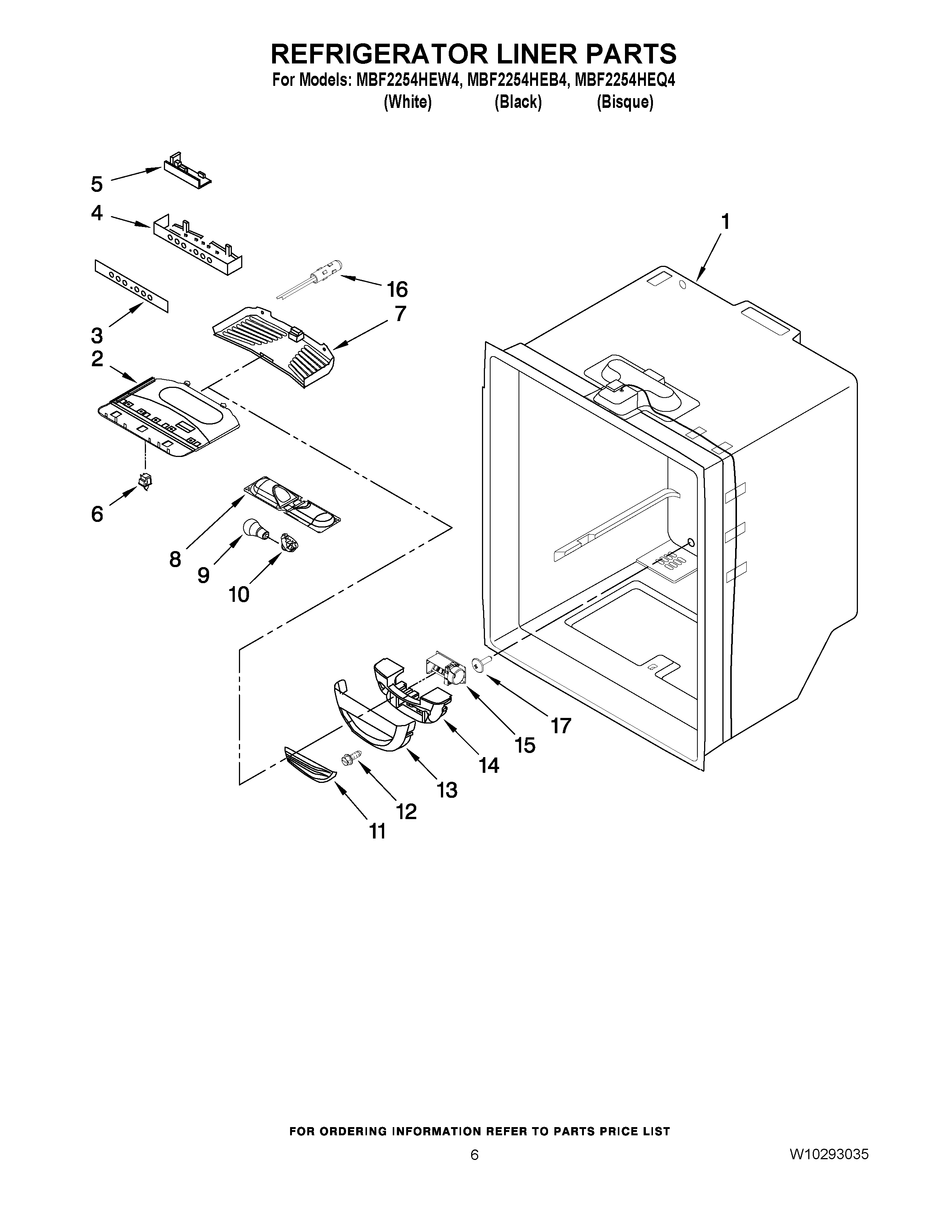

MBF2254HEW4 04 – REFRIGERATOR LINER PARTS

Products

PositionProduct
NIW11619328 Whirlpool Wire Harness
1LINER (NOT A SERVICEABLE PART)
2MAY Y67003896
3MAY 67004058
4WPW10464769 Whirlpool Refrigerator Housing
5Board, Control
6Switch, Light (2)
7W11284721 Whirlpool Refrigerator Cover
812806601 Whirlpool Refrigerator Light Housing
9RANGE ONLY 40W 120V APPL BULB
10Socket, Light (2)
1167003900 Whirlpool Refrigerator Insert Damper Cover
12MAY 67006602
13WP12806701 Whirlpool Refrigerator Box Cover
14MAY 67006604
15Control, Damper
1612002355 Whirlpool Refrigerator Thermistor Kit
17PLUG, BUTTON
