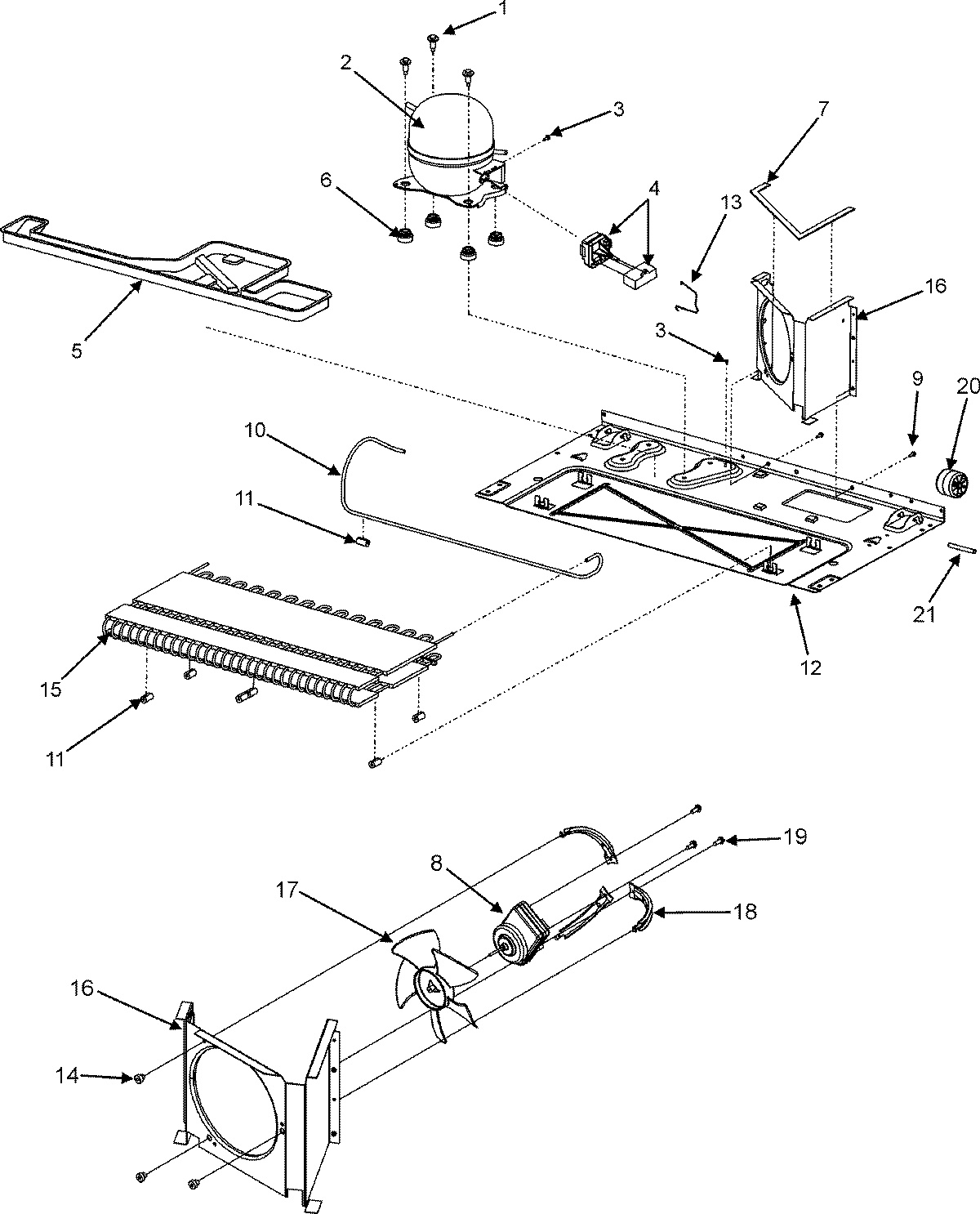

MBF2255KEQ 02 – COMPRESSOR/COND MOTOR/REAR ROLLERS

Products

Position	Product
1	MAY 67006432
2	W10160407 Whirlpool Refrigerator Compressor
3	MAY 67006433
4	W10613606 Whirlpool Refrigerator Start Device Relay Overload
5	Drain Pan
6	67003493 Whirlpool Refrigerator Compressor Grommet
7	WP854334 Whirlpool Air Conditioner Sealing Strip
8	MAY 67004432
9	Screw (10)
10	MAY 67004262
11	67005680 Whirlpool Refrigerator Condenser Grommet
12	BASEPAN, MACHINE COMPARTMENT
13	MAY 12576801
14	GROMMET, BRACKET
15	WP67006132 Whirlpool Refrigerator Condenser
16	SHROUD, CONDENSER FAN
17	W10156818 Whirlpool Refrigerator Fan Blade
18	MAY 67004953
19	WP67004954 Whirlpool Refrigerator Screw
20	WP67005149 Whirlpool Roller
21	67006434 Whirlpool Axle Pin
