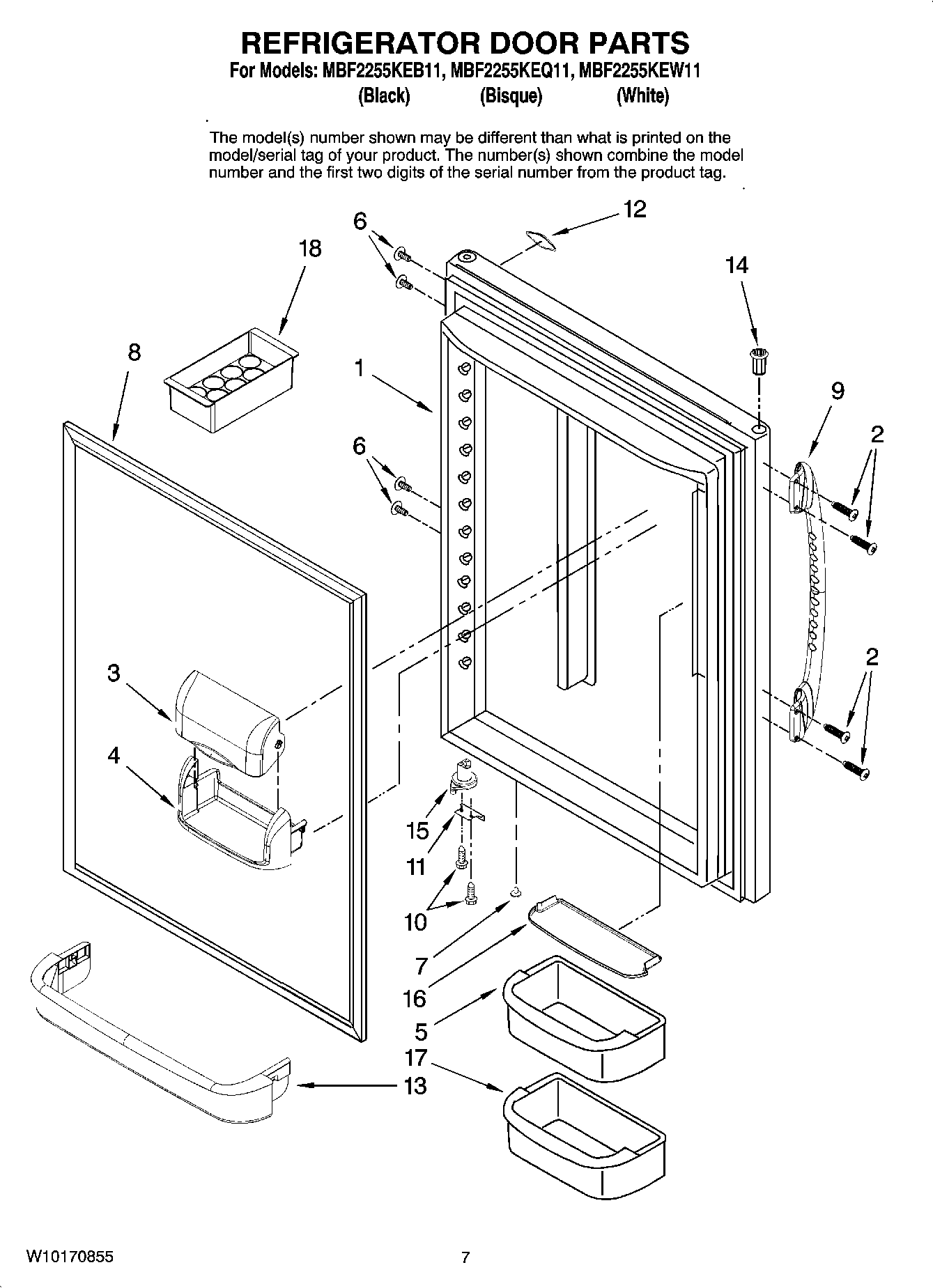

MBF2255KEQ11 05 – REFRIGERATOR DOOR PARTS

MBF2255KEQ11 05 – REFRIGERATOR DOOR PARTS

Written by

in

MBF2255KEQ11 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1MAY 67004361
1MAY 67004329
1DOOR ASSY., REF. FOAM (WHT)
267004707 Whirlpool Refrigerator Hi Torque Screw (BSQ)
267006806 Whirlpool Refrigerator Screw HI Torque Black
3WP67003637 Whirlpool Dairy Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WPW10371193 Whirlpool Refrigerator Door Bin
6SCREW (BLK)
6MAY 12991104
6MAY 12991103
710712401 Whirlpool Refrigerator Vent Plug (White)
767004838 Whirlpool Refrigerator Button Vent Plug
8GASKET, REF DOOR (WHT)
8GASKET, REF DOOR (BLK)
9MAY 67006120
9MAY 67006119
9MAY 67006887
10WP98165 Whirlpool Screw
1167003781 Whirlpool Refrigerator Door Stop (BSQ)
11W11708403 Whirlpool Door Stop
1112968202W Whirlpool Refrigerator Door Stop
122324038 Whirlpool Refrigerator Nameplate
13RETAINER, DOOR
14WP67004977 Whirlpool Refrigerator Door Hinge Bushing
1467004978 Whirlpool Refrigerator Black Door Bushing
15WP67003638 Whirlpool Closing Cam
15WP67003639 Whirlpool Refrigerator Closer
16GRIPPER, BUCKET
18MAY 67215-2
