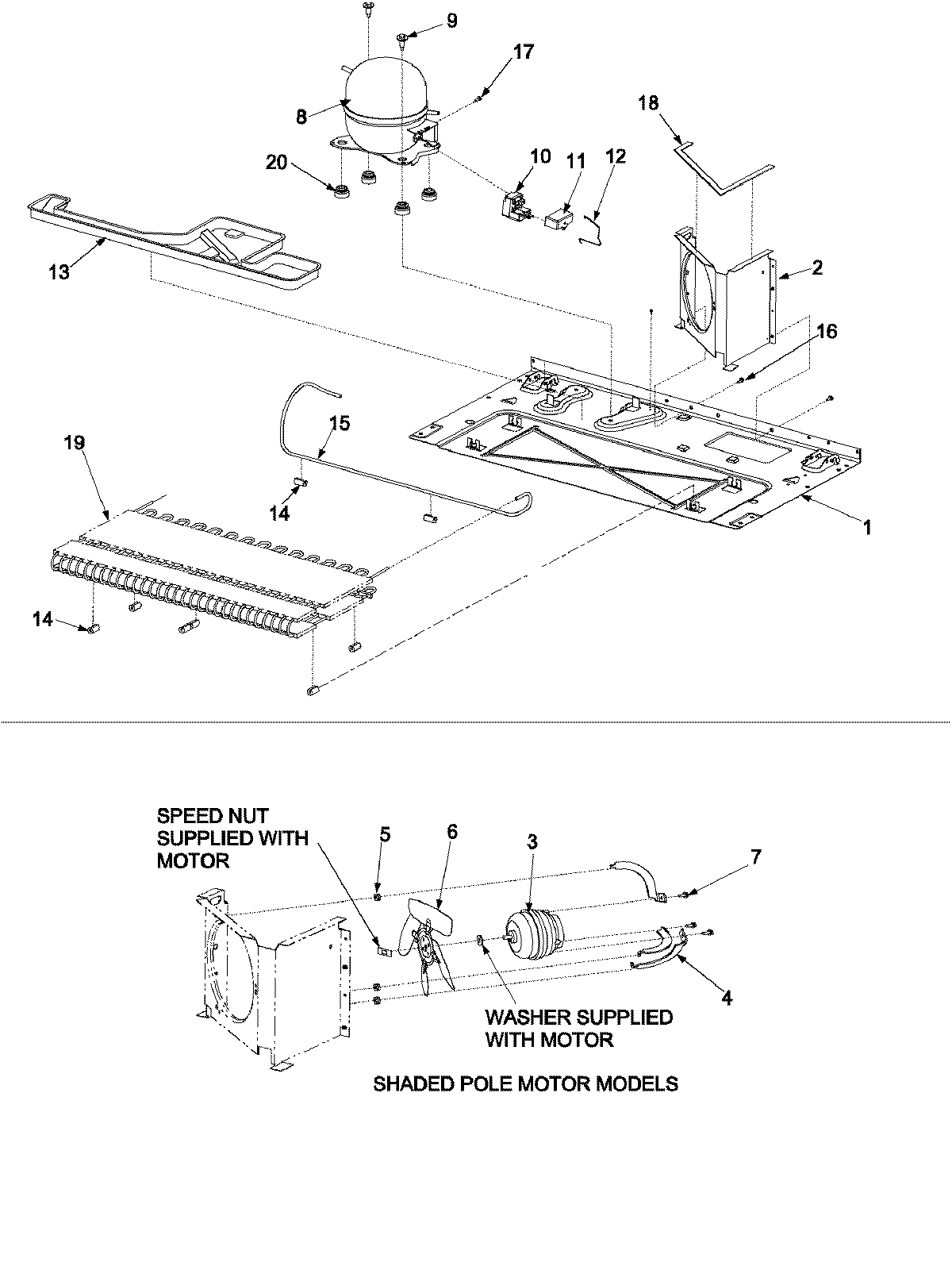

MBF2256HES 02 – COMPRESSOR (SERIES 10)

Products

Position	Product
1	MAY 67001089
2	SHROUD, CONDENSER FAN
3	833697 Whirlpool Condenser Fan Motor
4	Bracket, Motor (3)
5	GROMMET, BRACKET
6	WP12587601 Whirlpool Refrigerator Condenser Blade
7	Screw (3)
8	W10160407 Whirlpool Refrigerator Compressor
9	MAY M0221523
10	W10613606 Whirlpool Refrigerator Start Device Relay Overload
11	CAPACITOR
12	MAY 12576801
13	MAY 67001091
14	67005680 Whirlpool Refrigerator Condenser Grommet
15	MAY 67004262
16	MAY M0238616
17	MAY M0231604
18	WP854334 Whirlpool Air Conditioner Sealing Strip
19	MAY 67004263
20	67003493 Whirlpool Refrigerator Compressor Grommet
21	MAY 67003823
