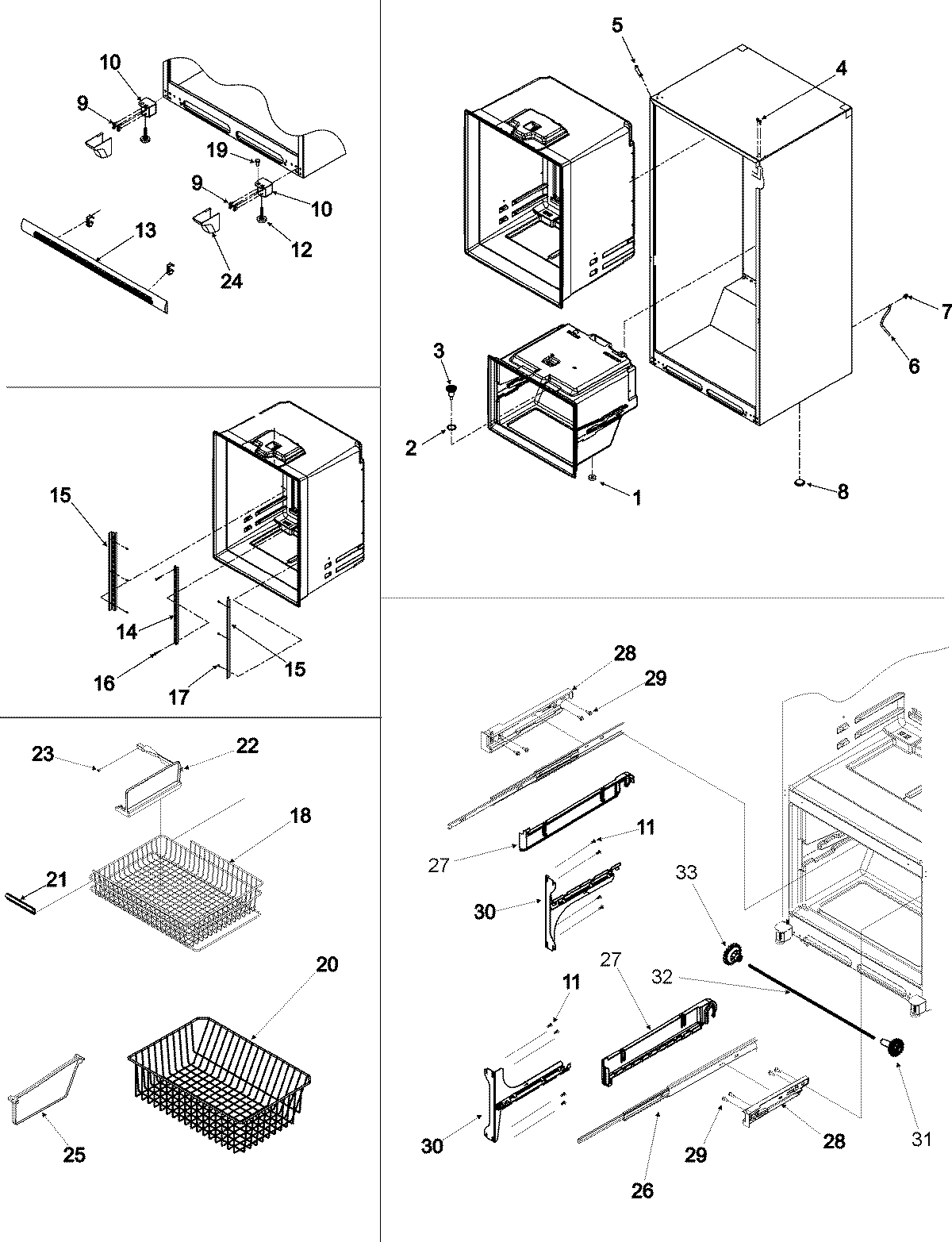

MBF2256HES 08 – INTERIOR CABINET & FREEZER SHELVES

MBF2256HES 08 – INTERIOR CABINET & FREEZER SHELVES

Written by

in

MBF2256HES 08 – INTERIOR CABINET & FREEZER SHELVES

Products

PositionProduct
1Gasket
2MAY M0500703
3MAY D7753903
4MAY A4539607
567003485 Whirlpool Refrigerator Corner Cover (Black)
6MAY 67001066
767001067 Whirlpool Refrigerator Drain Tube Clip
8A3076901 Whirlpool Refrigerator Plug
9MAY 67003858
10HINGE, BOTTOM E-CT (BLK)
11MAY M0211018
12MAY 10354001
13Clip, Grille
13Grille Assembly (Includes Clips) (Black)
1467001073 Whirlpool Refrigerator Center Ladder
15LADDER, SIDES
16MAY M0231425
17SCREW, SM
18MAY 67002918
19PLUG, BUTTON
20MAY 67004260
21HANDLE, BASKET/SHELF
22MAY 67001723
23MAY 67001310
24Cover, Lw Hinge (Black)
25MAY 67004064
26MAY 67004065
27WPW10280608 Whirlpool Refrigerator Bracket
27WPW10280613 Whirlpool Refrigerator Bracket
28MAY 67004011
28MAY 67004010
29SCREW 1“
30BRACKET, DRAWER SLIDE (LT)
30BRACKET, DRAWER SLIDE (RT)
31MAY 67004066
32SHAFT, RACK
33MAY 67004016
