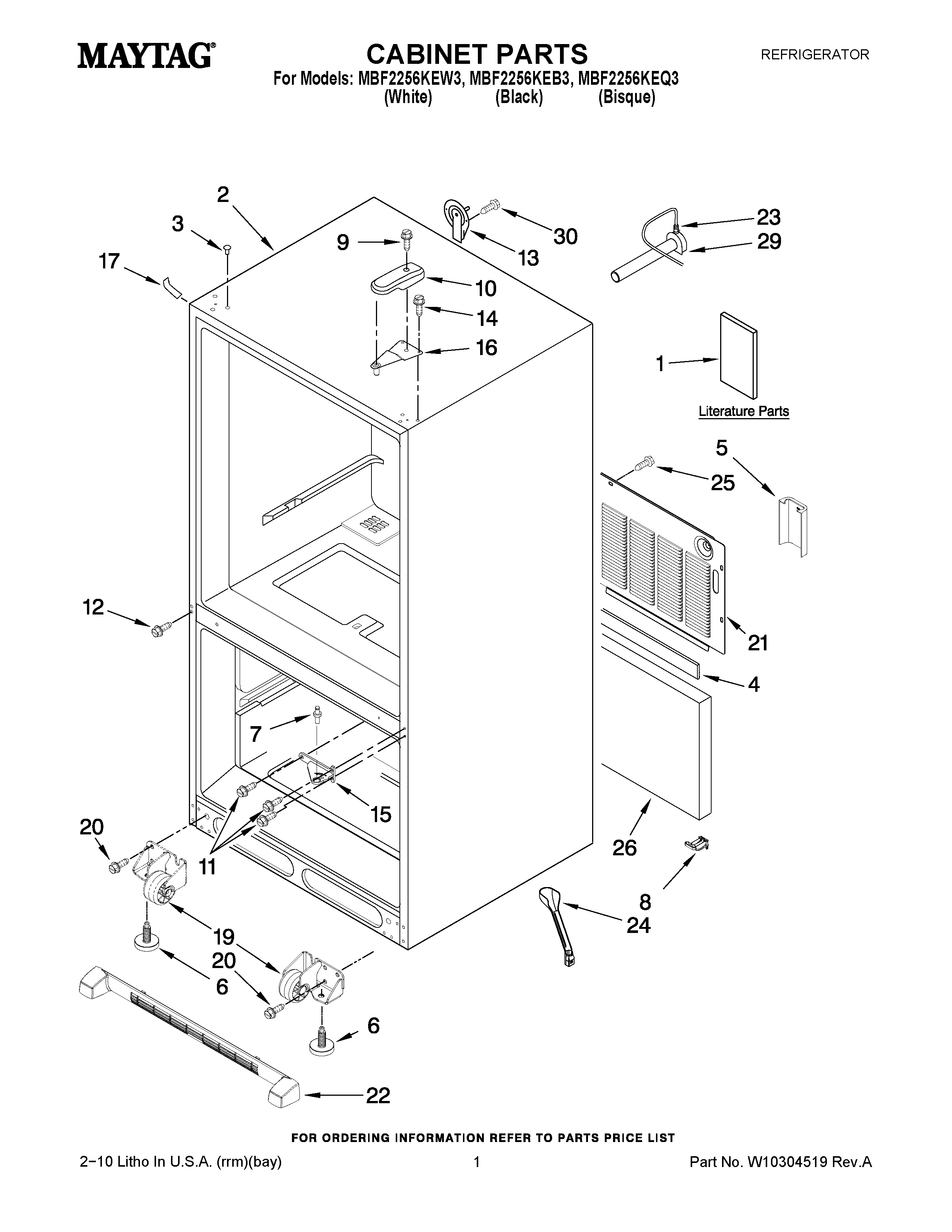

MBF2256KEB3 01 – CABINET PARTS

Products

Position	Product
1	MAY W10183257
1	MAY W10279329
1	Owners Manual
2	LINER (NOT A SERVICEABLE PART)
3	MAY M0310729
3	MAY M0310731
3	MAY M0310738
4	MAY B5759655
5	GUARD-WATER VALVE
6	Brake, Foot
7	MAY 10351006
8	MAY W10216614
9	MAY 12992602
10	MAY 12477601W
10	COVER, HINGE(BLACK)
10	MAY 12477601C
11	MAY 12990101
12	Screw (8)
13	MAY 12726003
14	SCREW (6)
15	MAY 12607103WD
15	MAY 12607104ED
16	Hinge, Top
17	Cover, Corner (Bisque)
17	Cover, Corner (2) (White)
17	COVER, CORNER (BLACK)
19	ROLLER ASSY. (FRONT) (LEFT)
19	ROLLER ASSY. (FRONT) (RIGHT)
20	Screw (8)
21	MAY W10210979
22	MAY W10236195
22	MAY W10236196
22	GRILLE ASSEMBLY (INCLUDES CLIPS) (BISQUE)
23	CLIP
24	MAY W10210988
25	SCREW (10)
26	Insulation, Sound
29	MAY 10463203SP
30	MAY 12990504
