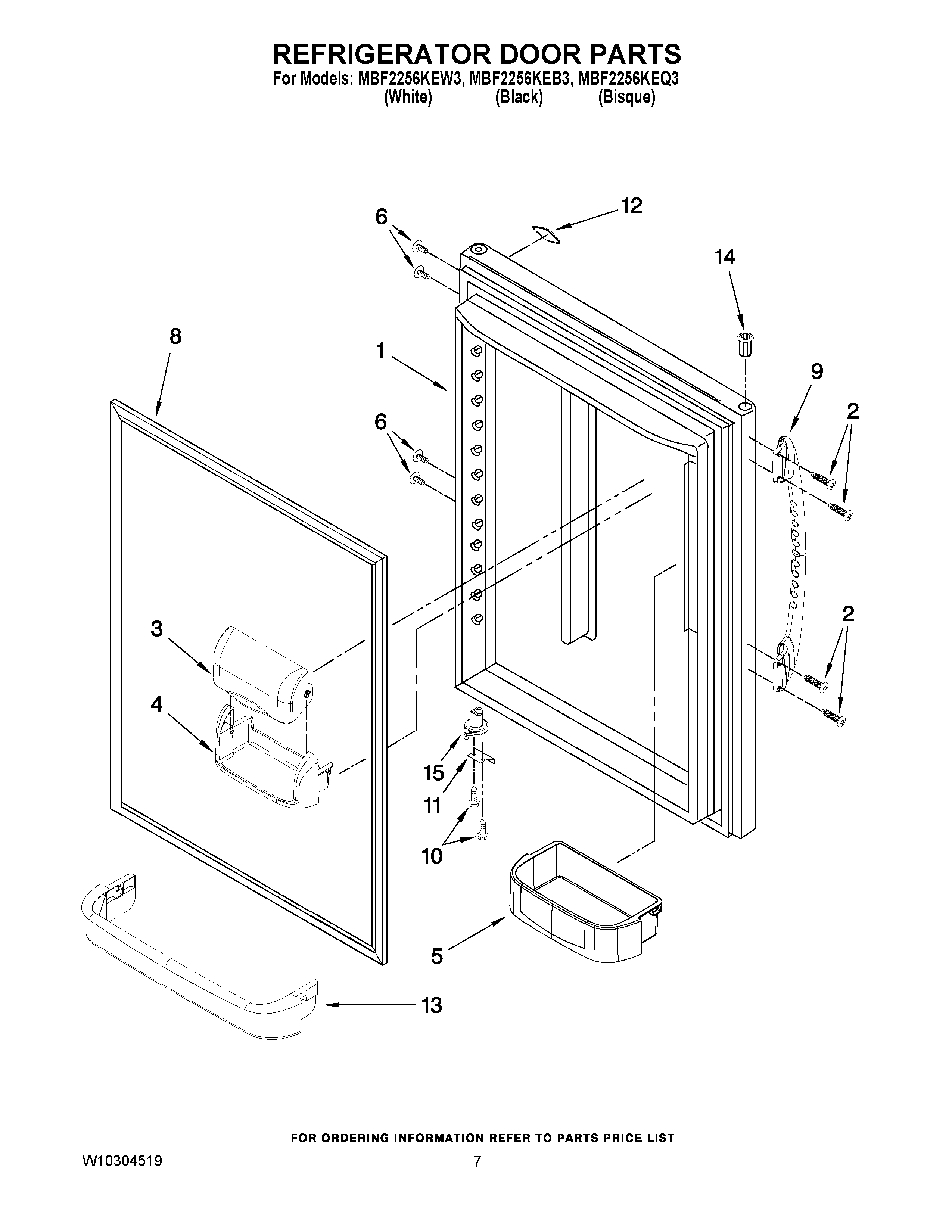

MBF2256KEB3 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	MAY 12658530WQ
1	MAY 12658530BQ
1	MAY 12658530CQ
2	Screw
2	MAY M1261616
2	Screw
3	MAY 12804701SP
4	MAY 12369502SP
5	MAY 12801902V
6	MAY 12991104
6	MAY 12991103
6	Screw,Handle Hole (Black)
8	GASKET, DOOR MAGNETIC (BLACK)
8	GASKET, DOOR MAGNETIC (WHITE)
9	MAY 12781004WN
9	MAY 12781004BN
9	MAY 12781004QN
10	MAY 12990504
11	MAY 10447111
11	Stop, Door (Black)
11	MAY 10447113
12	Nameplate
13	RETAINER, DOOR
14	Bushing (Black)
14	BUSHING, DOOR UPPER RIGHT (WHITE)
15	MAY 12028505B
15	MAY 12028505W
