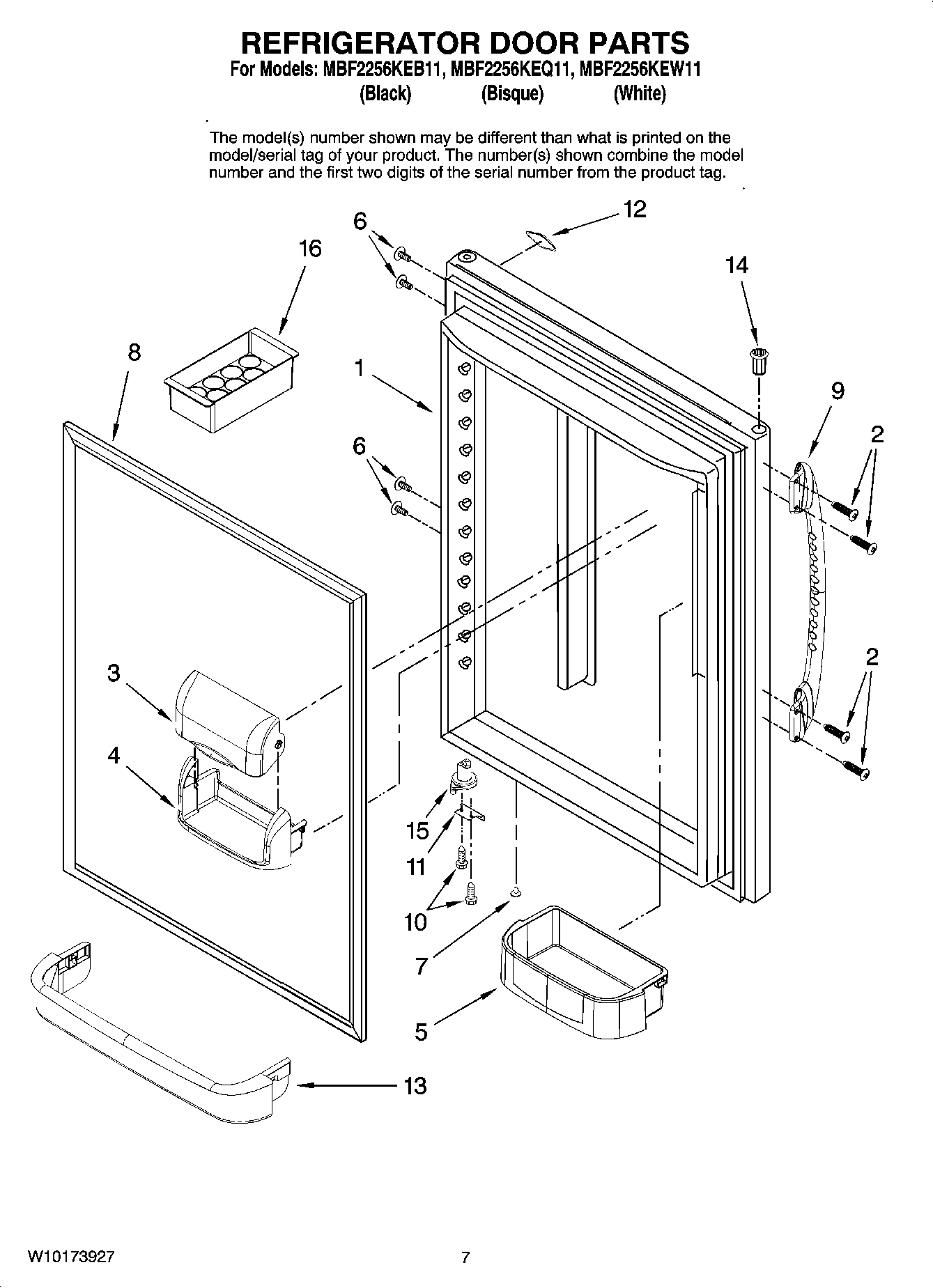

MBF2256KEQ11 05 – REFRIGERATOR DOOR PARTS

MBF2256KEQ11 05 – REFRIGERATOR DOOR PARTS

Written by

in

MBF2256KEQ11 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1MAY 67004329
1MAY 67004361
1DOOR ASSY., REF. FOAM (WHT)
267004707 Whirlpool Refrigerator Hi Torque Screw (BSQ)
267006806 Whirlpool Refrigerator Screw HI Torque Black
3WP67003637 Whirlpool Dairy Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
567004040 Whirlpool Refrigerator Bucket Door
6SCREW (BLK)
6MAY 12991104
6MAY 12991103
767004838 Whirlpool Refrigerator Button Vent Plug
710712401 Whirlpool Refrigerator Vent Plug (White)
8GASKET, REF DOOR (WHT)
8GASKET, REF DOOR (BLK)
9MAY 67006119
9MAY 67006120
9MAY 67006887
10WP98165 Whirlpool Screw
1167003781 Whirlpool Refrigerator Door Stop (BSQ)
1112968202W Whirlpool Refrigerator Door Stop
11W11708403 Whirlpool Door Stop
122324038 Whirlpool Refrigerator Nameplate
13RETAINER, DOOR
14WP67004977 Whirlpool Refrigerator Door Hinge Bushing
1467004978 Whirlpool Refrigerator Black Door Bushing
15WP67003639 Whirlpool Refrigerator Closer
15WP67003638 Whirlpool Closing Cam
16MAY 67215-2
