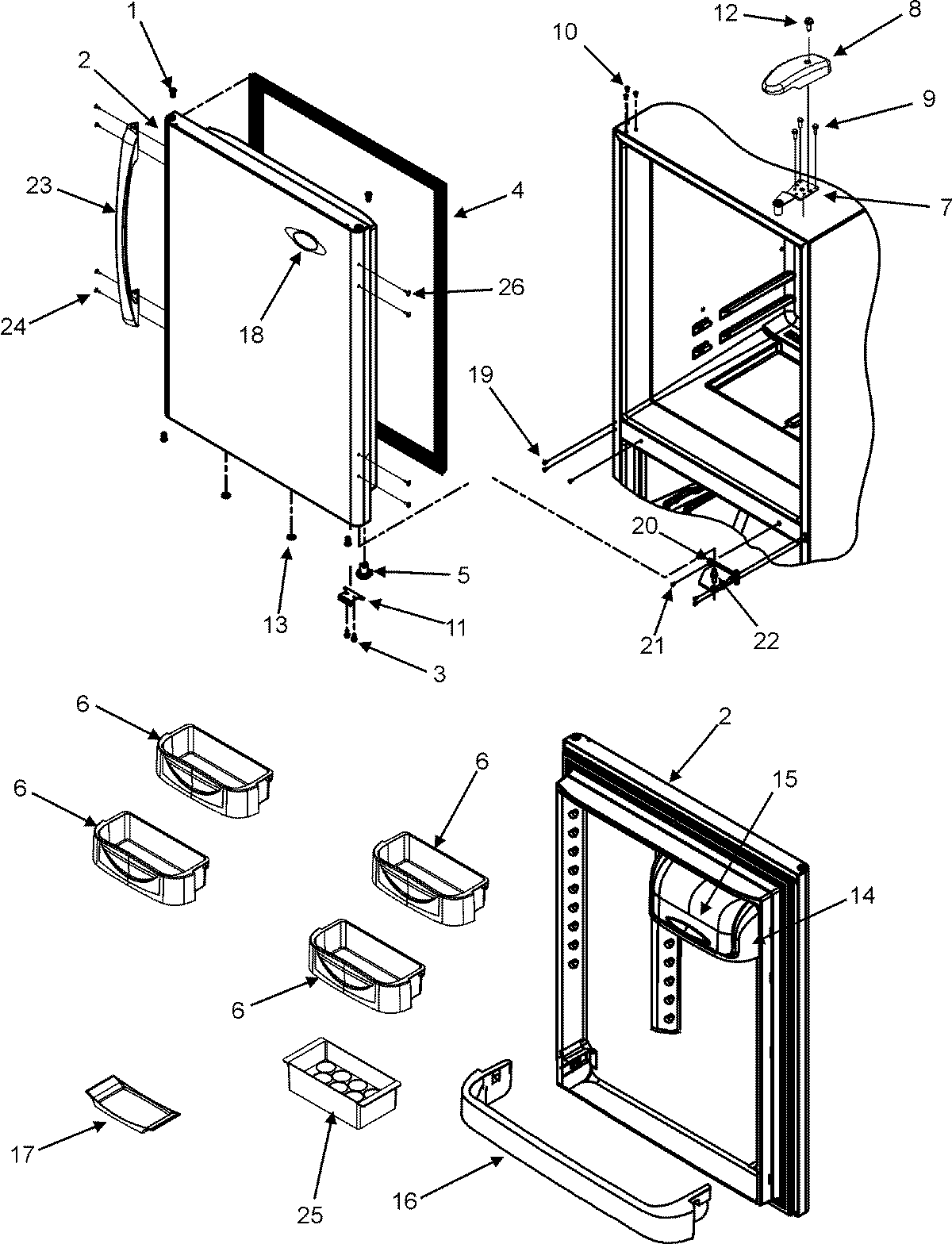

MBF2256KEW 09 – REFRIGERATOR DOOR

MBF2256KEW 09 – REFRIGERATOR DOOR

Written by

in

MBF2256KEW 09 – REFRIGERATOR DOOR

Products

PositionProduct
1WP67004977 Whirlpool Refrigerator Door Hinge Bushing
2DOOR ASSY., REF. FOAM (WHT)
3WP98165 Whirlpool Screw
4W10443313 Whirlpool Door Gasket
5WP67003638 Whirlpool Closing Cam
667004040 Whirlpool Refrigerator Bucket Door
7WP12566606ED Whirlpool Refrigerator Door Hinge
867001014 Whirlpool Refrigerator Top Hinge Cover White
9WP489349 Whirlpool Refrigerator Screw
10MAY M0310729
1112968202W Whirlpool Refrigerator Door Stop
12WP8281196 Whirlpool Screw
1310712401 Whirlpool Refrigerator Vent Plug (White)
14WP67001279 Whirlpool Refrigerator Dairy Tray
15WP67003637 Whirlpool Dairy Door
16RETAINER, DOOR
17MAY 67004412
182324038 Whirlpool Refrigerator Nameplate
20WP12607103WD Whirlpool Refrigerator Center Hinge
21WP67006380 Whirlpool Screw
22WP67006642 Whirlpool Refrigerator Pin
23MAY 67005147
25MAY 67215-2
26MAY 12246601
