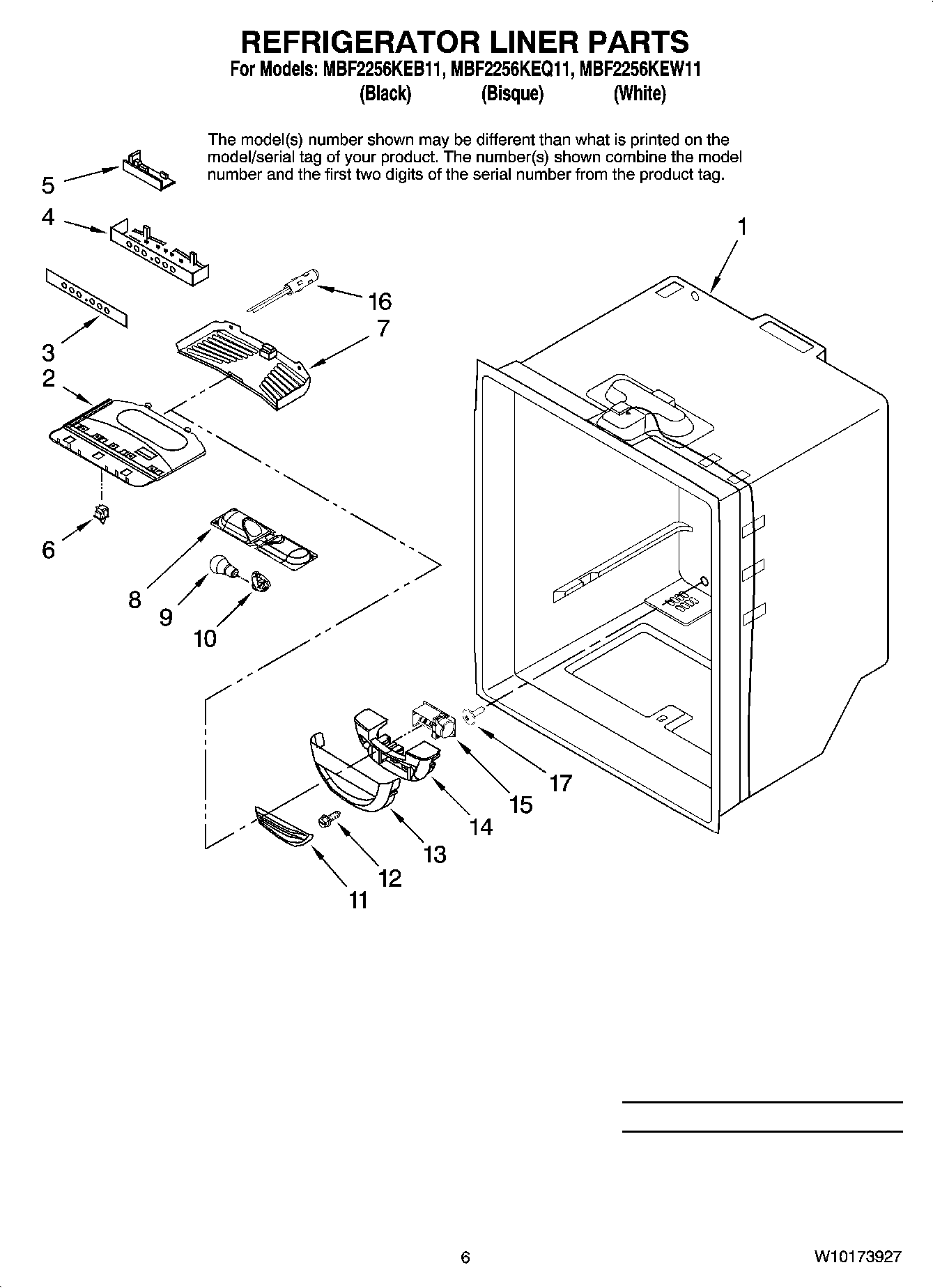

MBF2256KEW11 04 – REFRIGERATOR LINER PARTS

Products

Position	Product
NI	W11619328 Whirlpool Wire Harness
1	TUBE
2	MAY Y67003896
3	MAY 67004058
4	WPW10464769 Whirlpool Refrigerator Housing
5	Board, Control
6	Switch, Light (2)
7	W11284721 Whirlpool Refrigerator Cover
8	12806601 Whirlpool Refrigerator Light Housing
9	RANGE ONLY 40W 120V APPL BULB
10	Socket, Light (2)
11	67003900 Whirlpool Refrigerator Insert Damper Cover
12	MAY 67006602
13	WP12806701 Whirlpool Refrigerator Box Cover
14	MAY 67006604
15	Control, Damper
16	12002355 Whirlpool Refrigerator Thermistor Kit
17	PLUG, BUTTON
