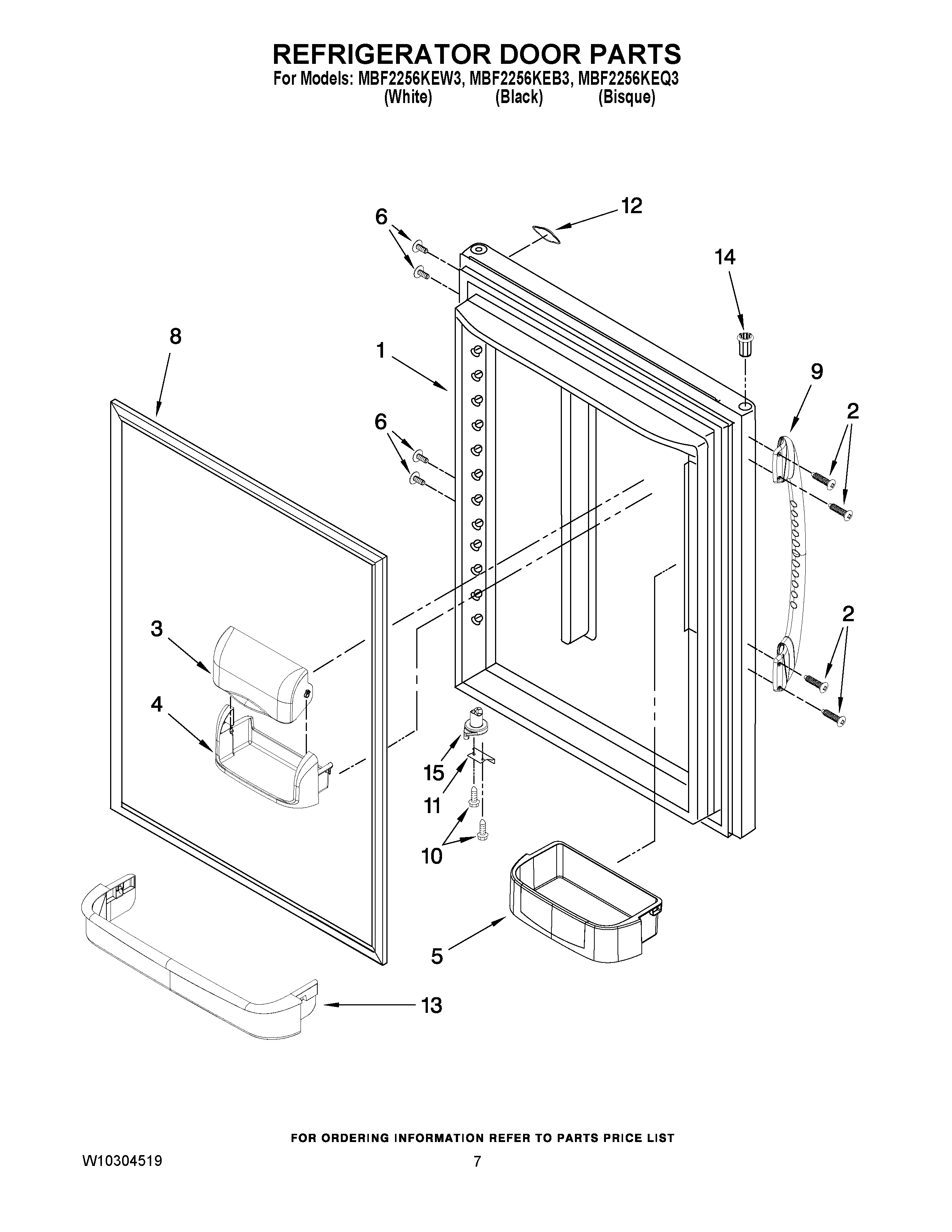

MBF2256KEW3 05 – REFRIGERATOR DOOR PARTS
Written by
in
MBF2256KEW3 05 – REFRIGERATOR DOOR PARTS
Products
Position
Product
1
MAY 12658530WQ
1
MAY 12658530BQ
1
MAY 12658530CQ
2
Screw
2
MAY M1261616
2
Screw
3
MAY 12804701SP
4
MAY 12369502SP
5
MAY 12801902V
6
MAY 12991104
6
MAY 12991103
6
Screw,Handle Hole (Black)
8
GASKET, DOOR MAGNETIC (BLACK)
8
GASKET, DOOR MAGNETIC (WHITE)
9
MAY 12781004WN
9
MAY 12781004BN
9
MAY 12781004QN
10
MAY 12990504
11
MAY 10447111
11
Stop, Door (Black)
11
MAY 10447113
12
Nameplate
13
RETAINER, DOOR
14
Bushing (Black)
14
BUSHING, DOOR UPPER RIGHT (WHITE)
15
MAY 12028505B
15
MAY 12028505W
←
