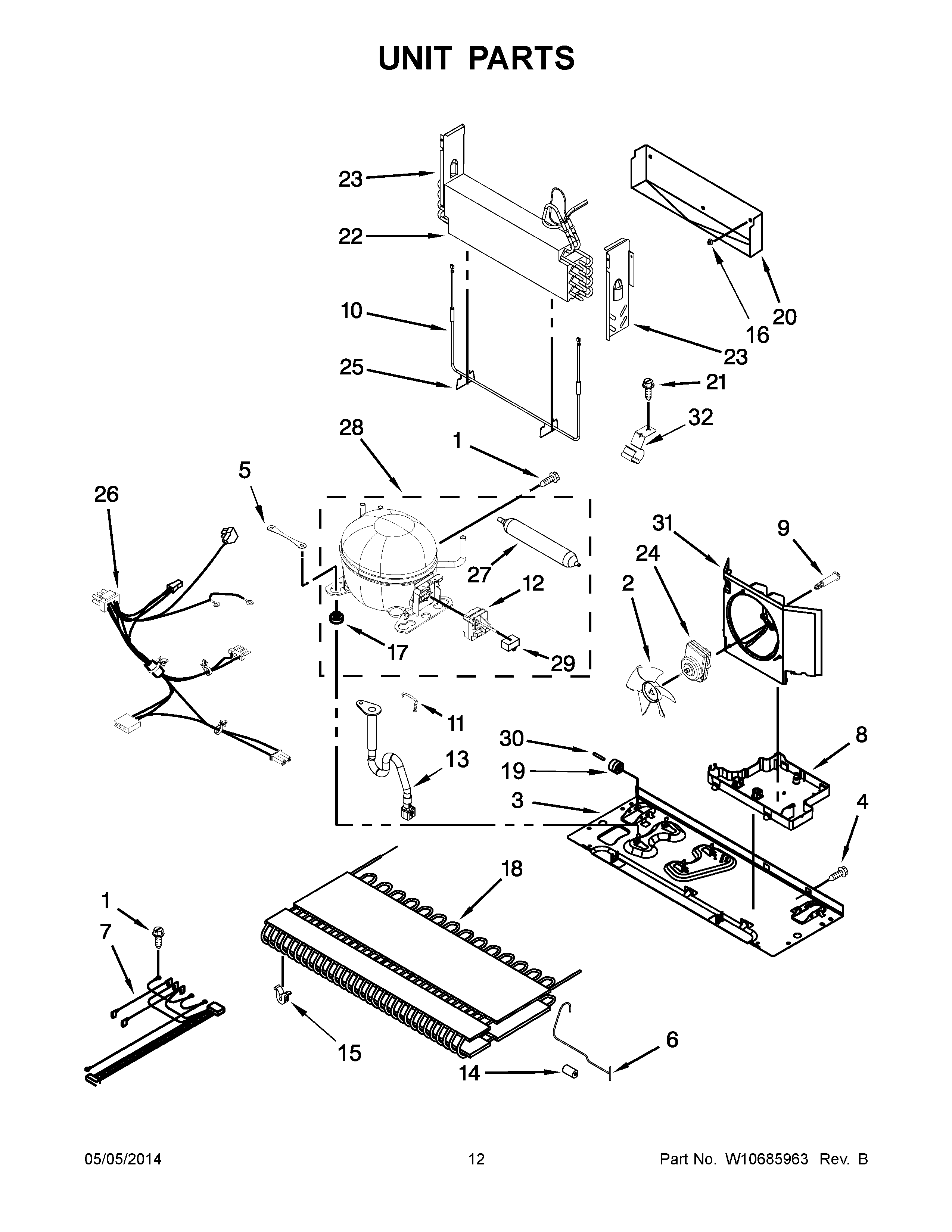

MBF2258DEE00 07 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (1/4“)
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	Valve, Access (1/2“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/16“)
NI	MAY 876764
NI	LINER (NOT A SERVICEABLE PART)
1	MAY 12992301
2	MAY 12825803
3	MAY W10480110
4	SCREW (10)
5	MAY W10236396
6	MAY W10233570
7	HARNESS, EVAPORATOR (INCLUDES HEATER)
8	MAY W10296784
9	MAY W10622701
10	MAY 12729128
11	MAY W10174384
12	DEVICE, START
13	EXTENSION, DRAIN TUBE
14	GROMMET, CONDENSER
15	GROMMET, COND (4)
16	MAY 10623002
17	Grommet (4)
18	MAY W10346420
19	Roller (2)
20	MAY W10292802
21	MAY 12992101
22	MAY W10317013
23	Dam (Right Side)
23	DAM (LEFT SIDE)
24	MAY W10239053
25	W11673433 Whirlpool Clip
26	MAY W10679216
27	Drier
28	COMPRESSOR KIT (CONTAINS ITEMS 12, 17, 27, & 29)
29	MAY W10350564
30	Axle, Roller (2)
31	SHROUD
32	MAY W10281329
