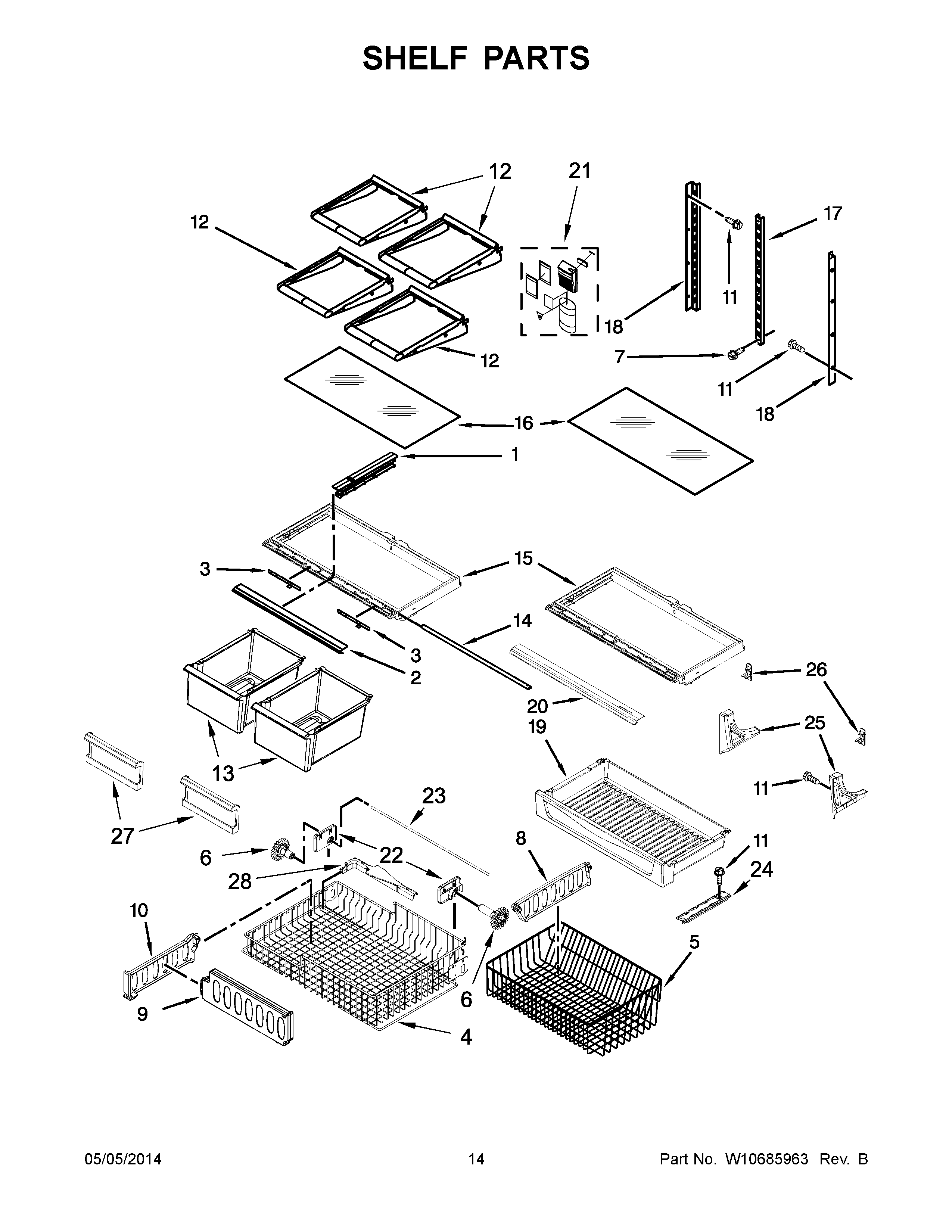

MBF2258DEE00 08 – SHELF PARTS

MBF2258DEE00 08 – SHELF PARTS

Written by

in

MBF2258DEE00 08 – SHELF PARTS

Products

Position	Product
1	MAY W10671238N
2	MAY W10231482
3	MAY 12530805SP
4	BASKET, UPPER
5	MAY W10503183
6	MAY W10474716
6	MAY W10474715
7	MAY W10215666
8	Divider, Lower Basket
9	DIVIDER, UPPER
10	Divider, Upper Basket
11	MAY 12990513
12	MAY 12463509
13	MAY 12530505N
14	BRACE, CRISPER FRAME
15	FRAME, CRISPER
16	MAY 12204822N
17	MAY W10273463
18	MAY W10251969
19	MAY W10328327
20	MAY W10656986
21	MAY W10596756
22	MOUNT-GEAR (RIGHT HAND)
22	MOUNT-GEAR (LEFT HAND)
23	MAY 12812905WD
24	TRACK, PANTRY
25	SUPPORT-RIGHT
25	SUPPORT-LEFT
26	HOOK-LADDER (2)
27	FRAME, CRISPER
28	MAY W10149389N
