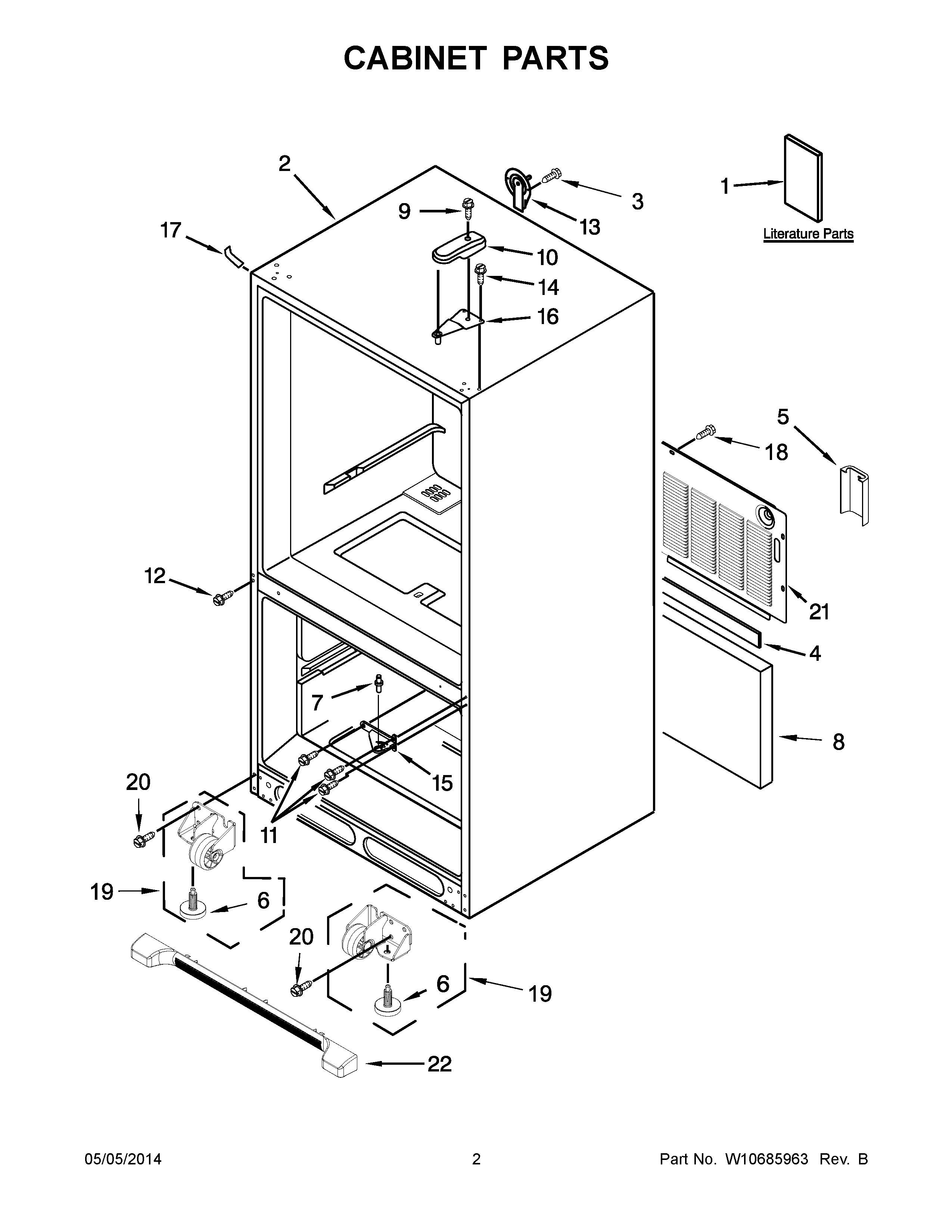

MBF2258DEM00 02 – CABINET PARTS

Products

Position	Product
1	MAY W10667464
1	MAY W10621529
1	MAY W10517966
2	LINER (NOT A SERVICEABLE PART)
3	MAY 12990504
4	MAY B5759655
5	GUARD-WATER VALVE
6	Brake, Foot
7	MAY 10351006
8	Insulation, Sound
9	MAY 12992602
10	MAY 12477601AP
10	MAY 12477601W
10	COVER, HINGE(BLACK)
11	MAY 12990101
12	Screw (8)
13	MAY 12726003
14	SCREW (6)
15	MAY 12607103AP
15	MAY 12607103WD
15	MAY 12607104ED
16	MAY 12566606ED
17	COVER, CORNER (BLACK)
17	Cover, Corner (2) (White)
17	COVER, CORNER (GREY)
18	SCREW (10)
19	ROLLER ASSEMBLY (RIGHT HAND)
19	ROLLER ASSEMBLY (LEFT HAND)
20	Screw (8)
21	MAY W10210979
22	MAY W10534161N
22	GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK)
22	GRILLE ASSEMBLY (INCLUDES CLIPS) (GREY)
