MBF2258FEB00 02 – CABINET PARTS – Aparts

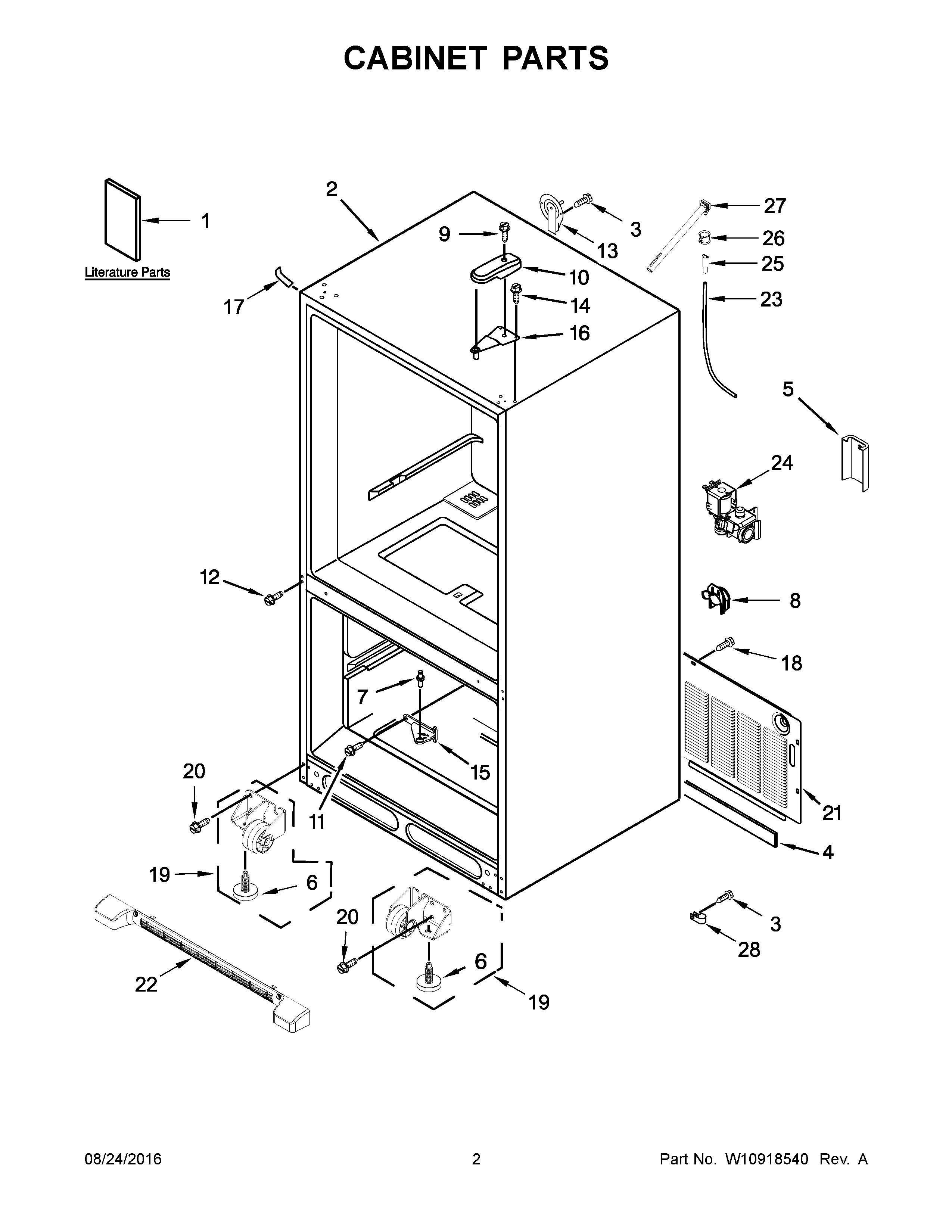

MBF2258FEB00 02 – CABINET PARTS

Products

Position	Product
1A	MAY W10853957
1	MAY W10621529
1B	MAY W10517966
2	LINER (NOT A SERVICEABLE PART)
3	MAY 12990504
4	MAY B5759655
5	GUARD-WATER VALVE
6	Brake, Foot
7	MAY 10351006
8	MAY W10485986
9	MAY 12992602
10	MAY 12477601W
10A	COVER, HINGE(BLACK)
11	MAY 12990101
12	Screw (8)
13	MAY 12726003
14	SCREW (6)
15	MAY 12607103WD
15A	MAY 12607104ED
16	MAY 12566606ED
17A	COVER, CORNER (BLACK)
17	Cover, Corner (2) (White)
18	SCREW (10)
19	ROLLER ASSEMBLY (LEFT HAND)
19A	ROLLER ASSEMBLY (RIGHT HAND)
20	MAY W10709365
21	MAY W10210979
22A	ASSEMBLY, GRILLE (BLACK)
22	ASSEMBLY, GRILLE (WHITE)
23	MAY B5705333
24	MAY W10498976
25	MAY A3223101
26	Clip
27	MAY 10463203
28	CLAMP, TUBE
