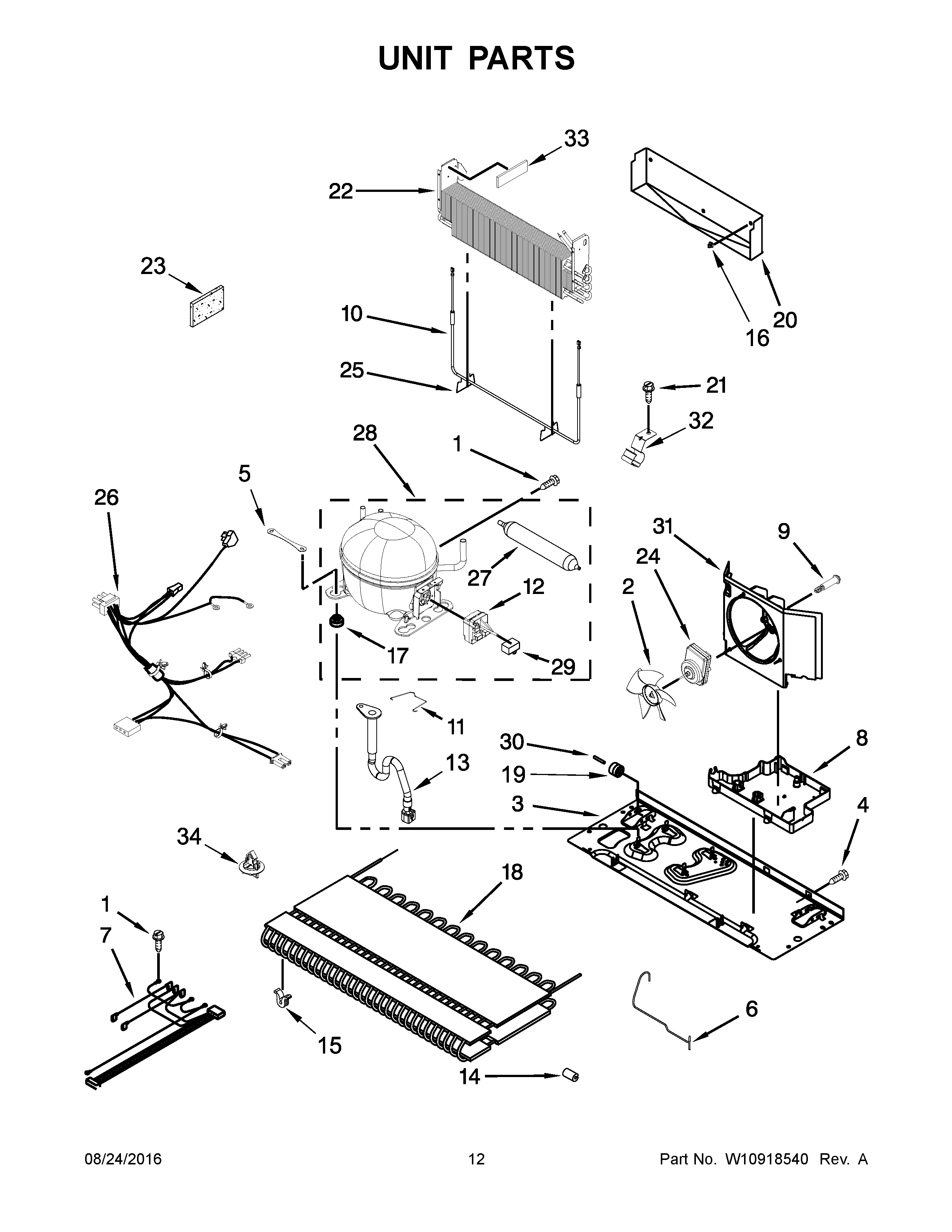

MBF2258FEB00 07 – UNIT PARTSadmin2025-04-26T13:10:02+00:00MBF2258FEB00 07 – UNIT PARTS
Products
| Position | Product |
|---|
| NI | Valve, Access (1/2``) |
| NI | Valve, Access (3/4``) |
| NI | Valve, Access (5/8``) |
| NI | VALVE, ACCESS (3/8``) |
| NI | Valve, Access (5/16``) |
| NI | VALVE, ACCESS (1/4``) |
| NI | MAY 876764 |
| NI | LINER (NOT A SERVICEABLE PART) |
| 1 | MAY 12992301 |
| 2 | MAY 12825803 |
| 3 | MAY W10480110 |
| 4 | SCREW (10) |
| 5 | MAY W10236396 |
| 6 | MAY W10233570 |
| 7 | HARNESS, EVAPORATOR (INCLUDES HEATER) |
| 8 | MAY W10655367 |
| 9 | MAY W10622701 |
| 10 | MAY 12729128 |
| 11 | MAY W10216075 |
| 12 | MAY W10796752 |
| 13 | EXTENSION, DRAIN TUBE |
| 14 | GROMMET, CONDENSER |
| 15 | GROMMET, COND (4) |
| 16 | MAY 10623002 |
| 17 | GROMMET |
| 18 | MAY W10346420 |
| 19 | Roller (2) |
| 20 | MAY W10292802 |
| 21 | MAY 12992101 |
| 22 | EVAPORATOR |
| 23 | SEALER, INSULATION |
| 24 | MAY W10609117 |
| 25 | W11673433 Whirlpool Clip |
| 26 | MAY W10679216 |
| 27 | Drier |
| 28 | MAY W10485433 |
| 29 | MAY W10350564 |
| 30 | Axle, Roller (2) |
| 31 | SHROUD |
| 32 | MAY W10281329 |
| 33 | Gasket, Bottom |
| 34 | MAY W10815863 |
