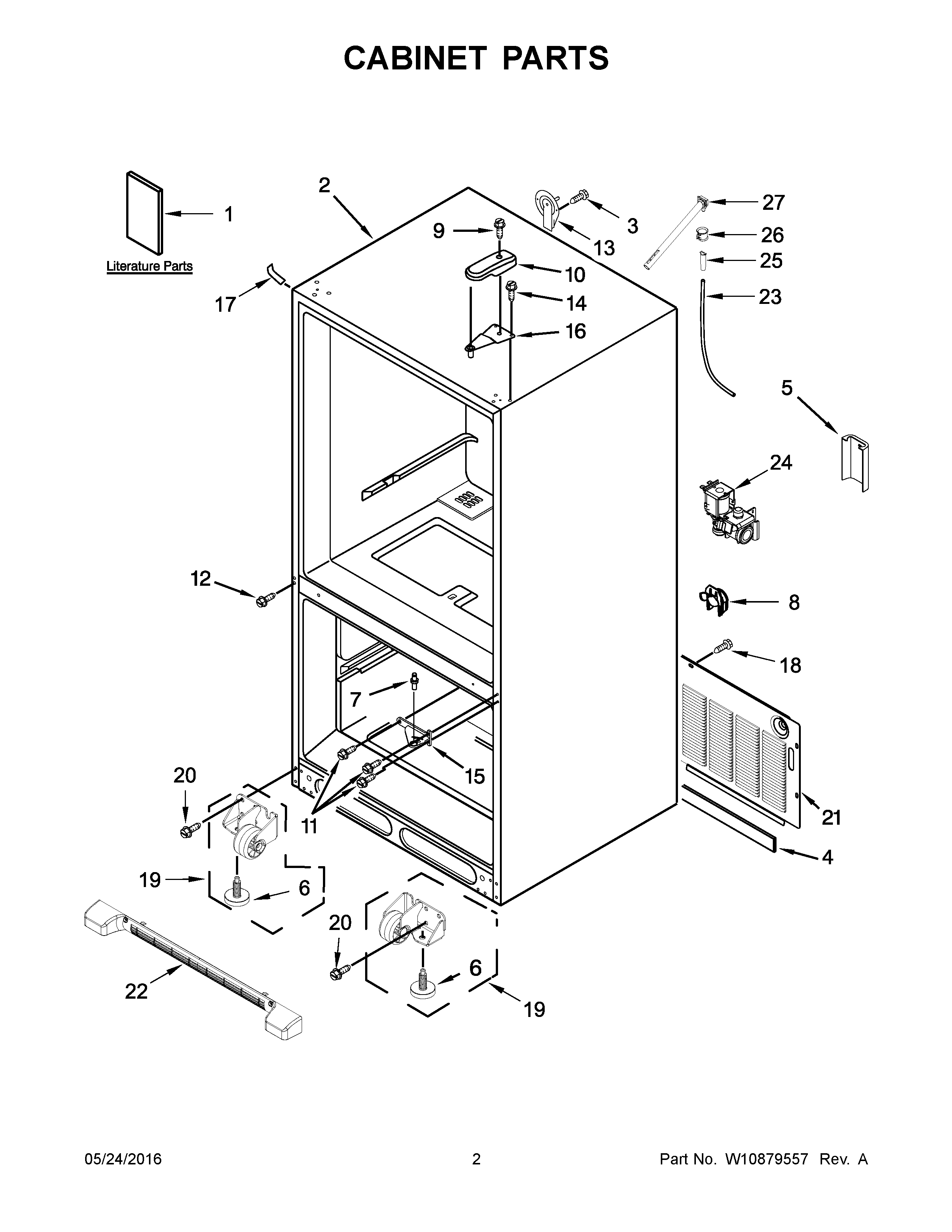

MBF2258FEE00 02 – CABINET PARTS

MBF2258FEE00 02 – CABINET PARTS

Written by

in

MBF2258FEE00 02 – CABINET PARTS

Products

PositionProduct
1AMAY W10853957
1MAY W10621529
1BMAY W10517966
2LINER (NOT A SERVICEABLE PART)
3MAY 12990504
4MAY B5759655
5GUARD-WATER VALVE
6Brake, Foot
7MAY 10351006
8MAY W10485986
9MAY 12992602
10MAY 12477601W
10ACOVER, HINGE(BLACK)
10BMAY 12477601AP
11MAY 12990101
12Screw (8)
13MAY 12726003
14SCREW (6)
15AMAY 12607104ED
15BMAY 12607103AP
15MAY 12607103WD
16MAY 12566606ED
17BCOVER, CORNER (GREY)
17Cover, Corner (2) (White)
17ACOVER, CORNER (BLACK)
18SCREW (10)
19AROLLER ASSEMBLY (RIGHT HAND)
19ROLLER ASSEMBLY (LEFT HAND)
20MAY W10709365
21MAY W10210979
22AASSEMBLY, GRILLE (BLACK)
22ASSEMBLY, GRILLE (WHITE)
22BASSEMBLY, GRILLE (GREY)
23MAY B5705333
24MAY W10498976
25MAY A3223101
26Clip
27MAY 10463203
