MBF2258FEW00 08 – SHELF PARTS – Aparts

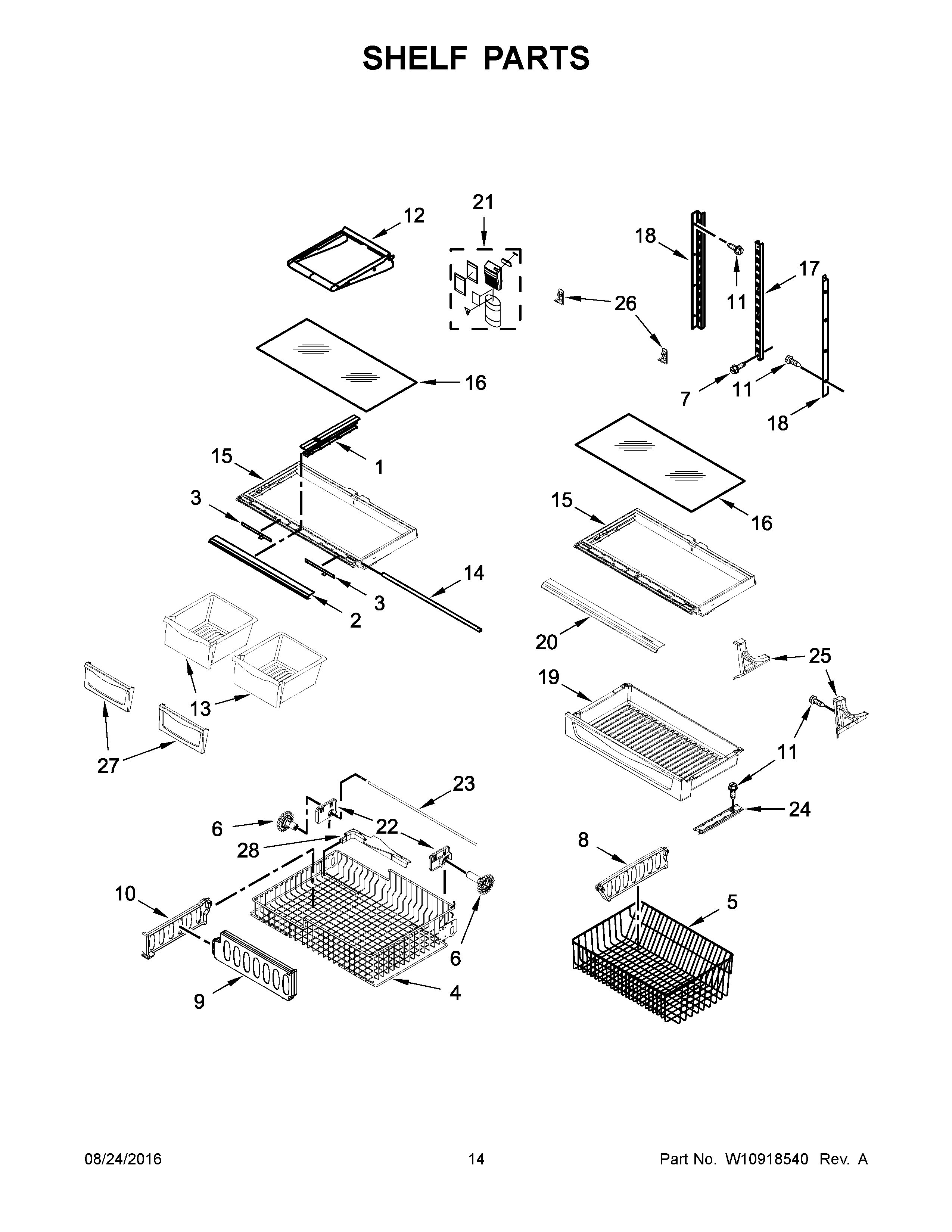

MBF2258FEW00 08 – SHELF PARTS

Products

Position	Product
1	MAY W10671238
2	MAY W10231482
3	MAY 12530805SP
4	BASKET, UPPER
5	MAY W10503183
6	MAY W10474716
6A	MAY W10474715
7	MAY W10215666
8	Divider, Lower Basket
9	DIVIDER, UPPER
10	Divider, Upper Basket
11	MAY 12990513
12	MAY 12463509
13	MAY 12530505SP
14	BRACE, CRISPER FRAME
15	FRAME, CRISPER
16	MAY 12204822
17	MAY W10273463
18	MAY W10251969
19	MAY W10328327
20	MAY W10656986
21	MAY W10596756
22	MOUNT-GEAR (LEFT HAND)
22A	MOUNT-GEAR (RIGHT HAND)
23	SHAFT, RACK
24	TRACK, PANTRY
25	SUPPORT-LEFT
25A	SUPPORT-RIGHT
26	HOOK-LADDER (2)
27	MAY 12643702SP
28	MAY W10149389N
