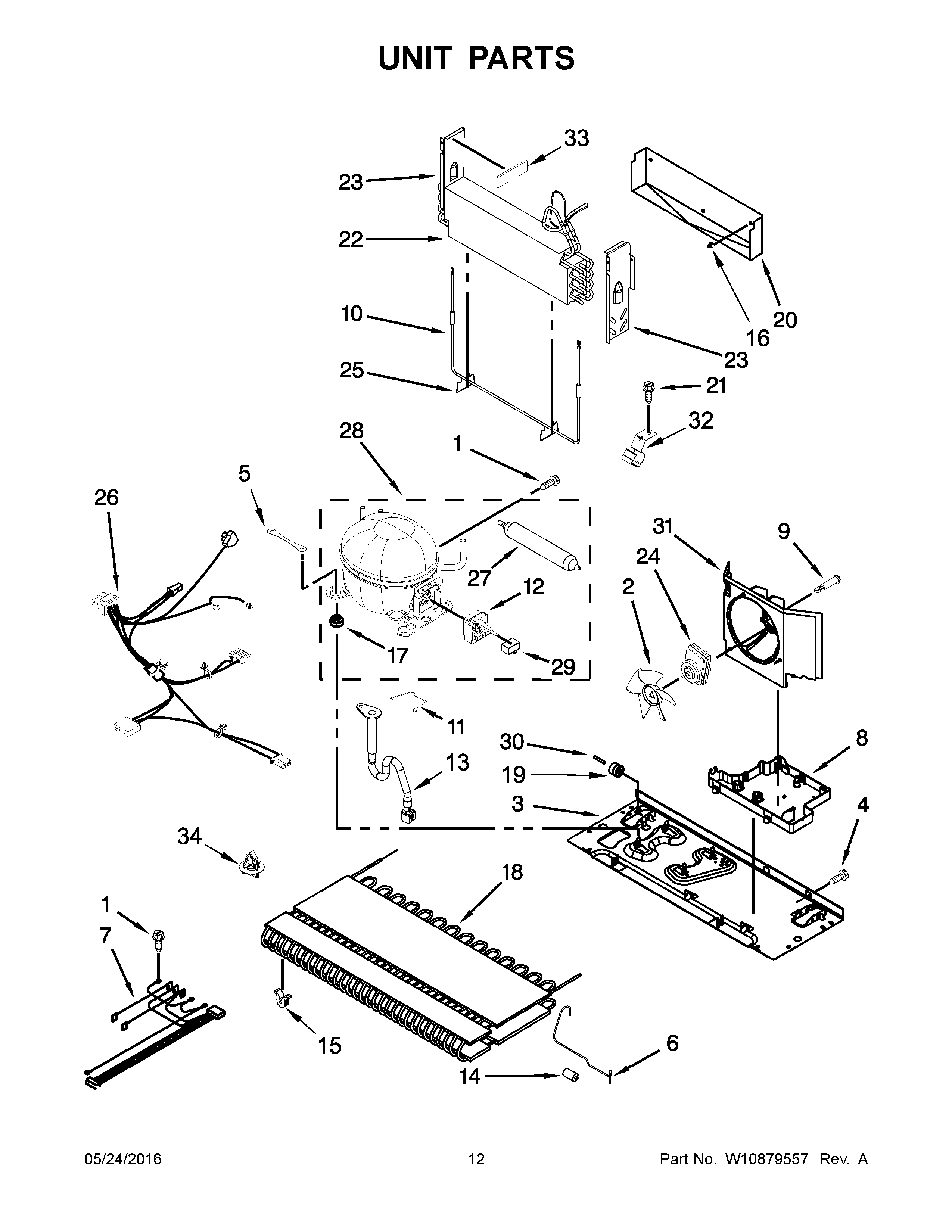

MBF2258FEZ00 07 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (5/16“)
NI	Valve, Access (1/2“)
NI	VALVE, ACCESS (1/4“)
NI	MAY 876764
NI	Valve, Access (5/8“)
NI	Valve, Access (3/4“)
NI	LINER (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (3/8“)
1	MAY 12992301
2	MAY 12825803
3	MAY W10480110
4	SCREW (10)
5	MAY W10236396
6	MAY W10233570
7	HARNESS, EVAPORATOR (INCLUDES HEATER)
8	MAY W10655367
9	MAY W10622701
10	MAY 12729128
11	MAY W10216075
12	MAY W10796752
13	EXTENSION, DRAIN TUBE
14	GROMMET, CONDENSER
15	GROMMET, COND (4)
16	MAY 10623002
17	GROMMET
18	MAY W10346420
19	Roller (2)
20	MAY W10292802
21	MAY 12992101
22	MAY W10317013
23	DAM (LEFT SIDE)
23A	Dam (Right Side)
24	MAY W10609117
25	W11673433 Whirlpool Clip
26	MAY W10679216
27	Drier
28	MAY W10485433
29	MAY W10350564
30	Axle, Roller (2)
31	SHROUD
32	MAY W10281329
33	Gasket, Bottom
34	MAY W10815863
