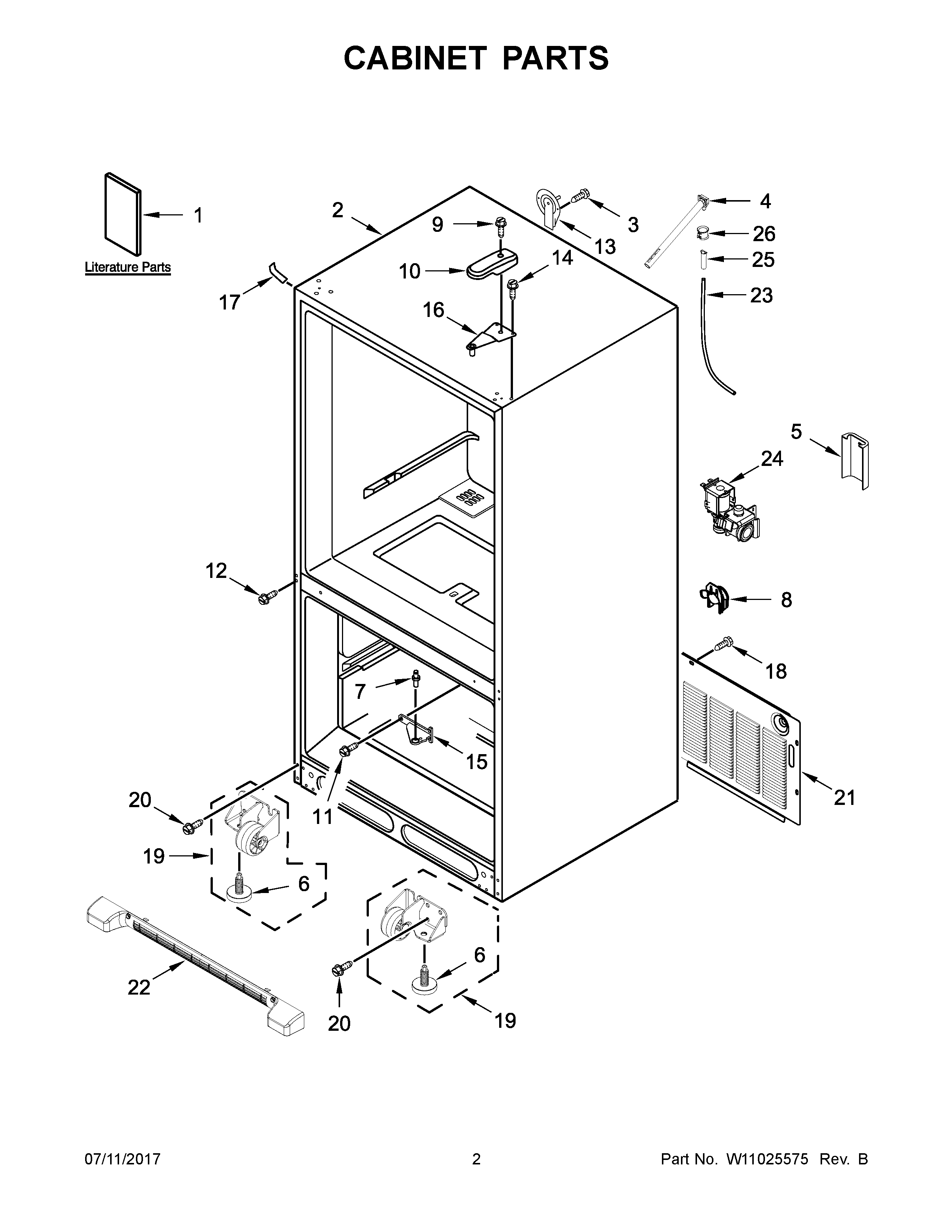

MBF2258FEZ01 02 – CABINET PARTS

MBF2258FEZ01 02 – CABINET PARTS

Written by

in

MBF2258FEZ01 02 – CABINET PARTS

Products

Position	Product
1B	MAY W10517966
1A	MAY W11112807
1	MAY W10621529
2	LINER (NOT A SERVICEABLE PART)
3	MAY 12990504
4	MAY 10463203
5	GUARD-WATER VALVE
6	Brake, Foot
7	MAY 10351006
8	MAY W10485986
9	MAY 12992602
10	MAY 12477601AP
11	MAY 12990101
12	Screw (8)
13	MAY 12726003
14	SCREW (6)
15	MAY 12607103AP
16	MAY 12566606ED
17	COVER, CORNER (GREY)
18	SCREW (10)
19A	ROLLER ASSEMBLY (RIGHT HAND)
19	ROLLER ASSEMBLY (LEFT HAND)
20	MAY W10709365
21	MAY W10210979
22	ASSEMBLY, GRILLE (GREY)
23	TUBING, PLASTIC
24	MAY W10498976
25	MAY A3223101
26	Clip
