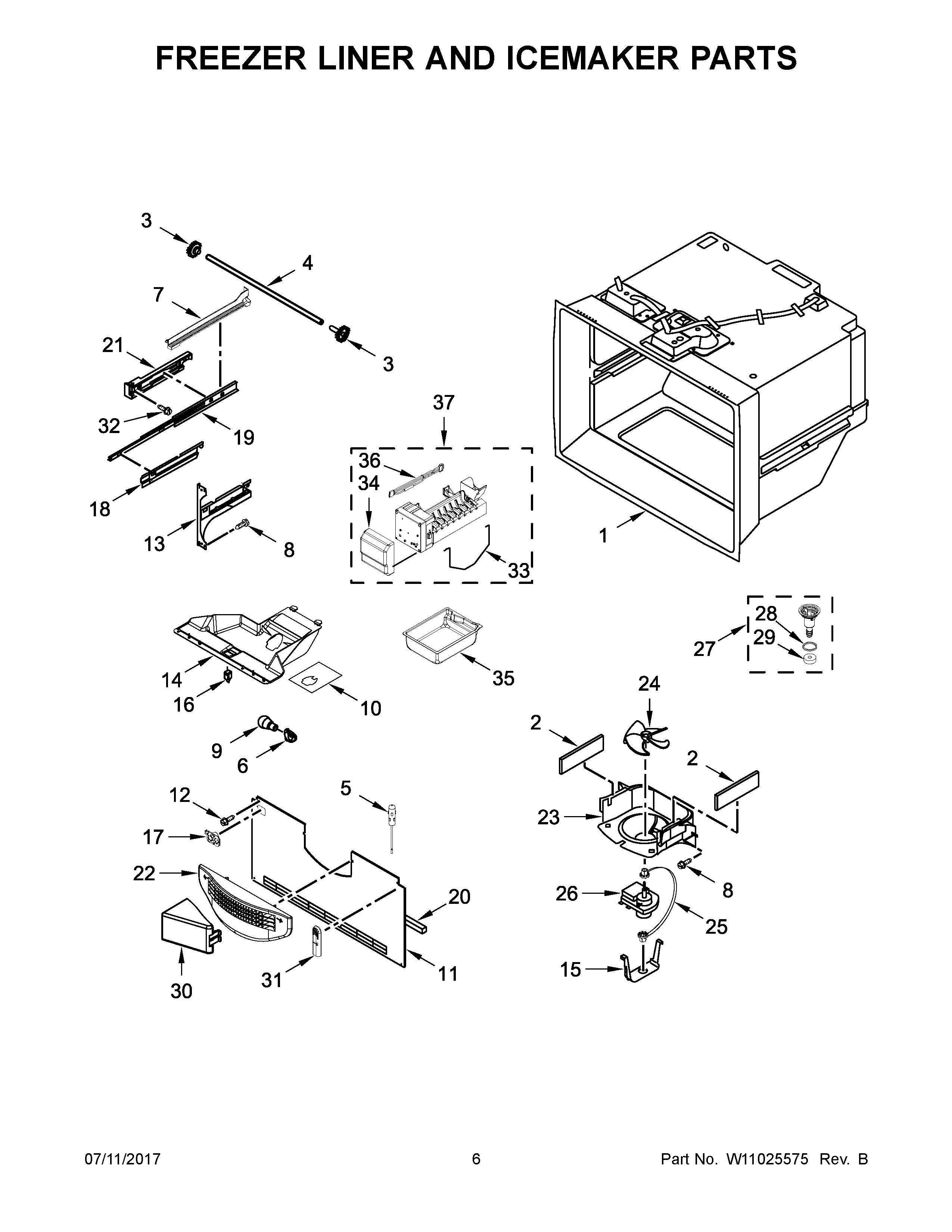

MBF2258FEZ01 04 – FREEZER LINER AND ICEMAKER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2Gasket, Bottom
312002497 Whirlpool Refrigerator Drawer Gear Kit
4SHAFT, RACK
5MAY 12791409SP
6W11447232 Whirlpool Refrigerator Socket
7MAY W10516603
7AMAY W10516602
8Screw (8)
9LAMP, LED
10FOIL-FZ LIGHT
11MAY W10308415
12MAY 12990101
13AMAY W10330993
13MAY W10330991
14MODULE-FZ LIGHT
15CLIP, EVAP. MOTOR
16MAY 12466105
17MAY 12932103
18CRADLE-BASKET (LEFT HAND)
18ACRADLE-BASKET (RIGHT HAND)
19MAY W10120018
20MAY A3189395
21AADAPTER, SLIDE (RIGHT HAND)
21ADAPTER, SLIDE (LEFT HAND)
22Grille, Fz Air
23SHROUD, EVAP.FAN
24Blade, Fan (Evaporator)
25MAY W10121318
26MAY W10128551
27MAY W10662407
28MAY M0500703
29Gasket
30MAY W10157765
31MAY 12815301
32Screw (6)
33ARM-SHUT OFF
34COVER, ICEMAKER
35MAY W10171529N
36MAY W10793621
37ASSEMBLY, ICEMAKER (COMPLETE)
