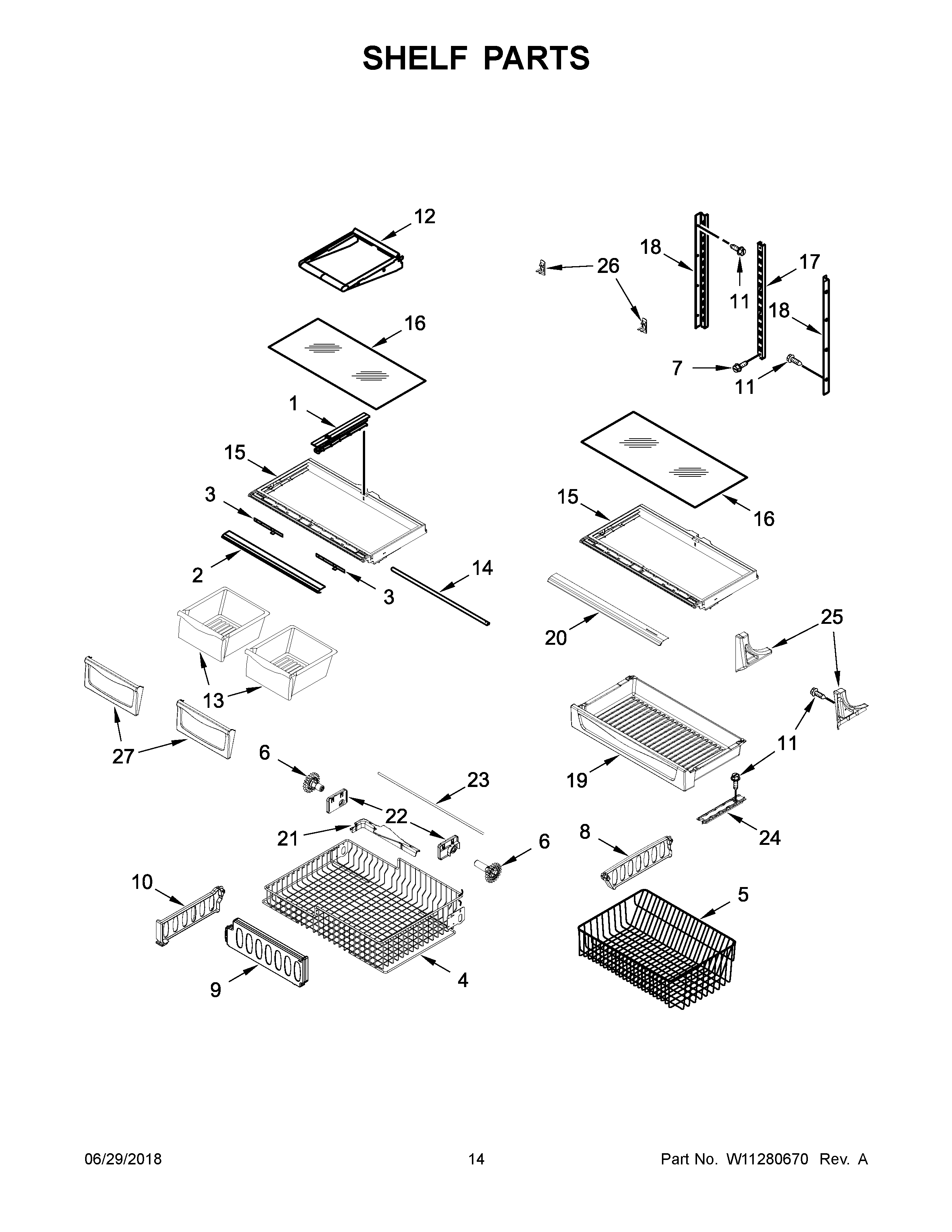

MBF2258FEZ02 08 – SHELF PARTSadmin2025-04-26T13:08:19+00:00MBF2258FEZ02 08 – SHELF PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10671238 |
| 2 | TRIM, CRISPER |
| 3 | MAY 12530805SP |
| 4 | BASKET, FREEZER (UPPER) |
| 5 | BASKET, FREEZER (LOWER) |
| 6 | MAY W10474716 |
| 6A | MAY W10474715 |
| 7 | MAY W10215666 |
| 8 | Divider, Lower Basket |
| 9 | DIVIDER, UPPER |
| 10 | Divider, Upper Basket |
| 11 | MAY 12990513 |
| 12 | MAY 12463509 |
| 13 | MAY 12530505SP |
| 14 | BRACE, CRISPER FRAME |
| 15 | FRAME, CRISPER |
| 16 | MAY 12204822 |
| 17 | MAY W10273463 |
| 18 | MAY W10251969 |
| 19 | MAY W10328327 |
| 20 | MAY W10656986 |
| 21 | MAY W10149389N |
| 22 | MOUNT-GEAR (LEFT HAND) |
| 22A | MOUNT-GEAR (RIGHT HAND) |
| 23 | SHAFT, RACK |
| 24 | TRACK, PANTRY |
| 25A | SUPPORT-RIGHT |
| 25 | SUPPORT-LEFT |
| 26 | HOOK-LADDER (2) |
| 27 | MAY 12643702SP |
