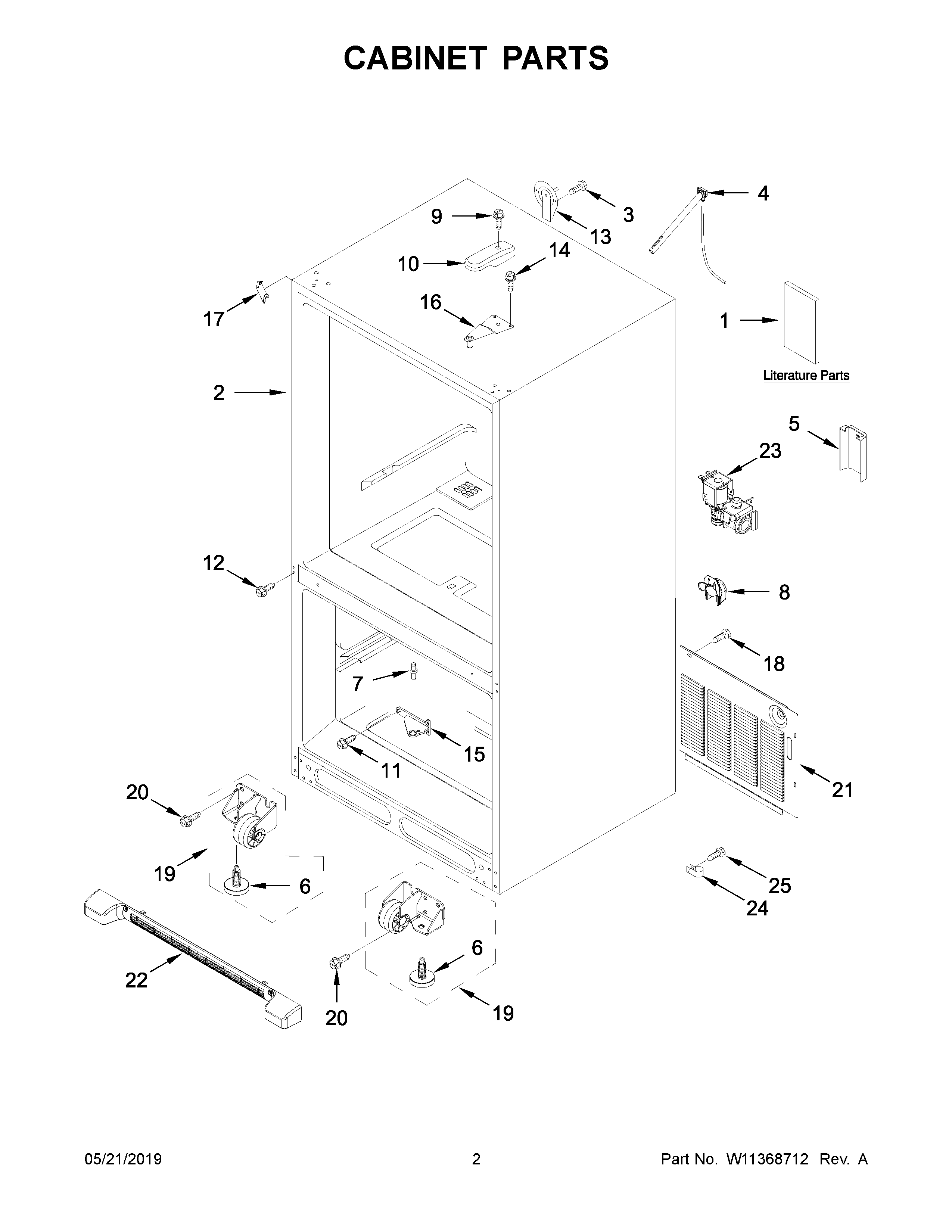

MBF2258FEZ03 02 – CABINET PARTS

Products

Position	Product
1A	MAY W11306941
1B	MAY W11297588
1	MAY W11296634
2	LINER (NOT A SERVICEABLE PART)
3	MAY 12990504
4	ASSEMBLY, FILL TUBE (INCLUDES TUBING, FILL TUBE ELBOW, TUBE INSERT AND CLAMP)
5	GUARD-WATER VALVE
6	Brake, Foot
7	MAY 10351006
8	MAY W10485986
9	MAY 12992602
10	MAY 12477601AP
11	MAY 12990101
12	Screw (8)
13	MAY 12726003
14	SCREW (6)
15	MAY 12607103AP
16	MAY 12566606ED
17	COVER, CORNER (GREY)
18	SCREW (10)
19	ROLLER ASSEMBLY (LEFT HAND)
19A	ROLLER ASSEMBLY (RIGHT HAND)
20	MAY W10709365
21	MAY W10210979
22	ASSEMBLY, GRILLE (GREY)
23	MAY W10498976
24	CLAMP, TUBE
25	MAY 12991604
