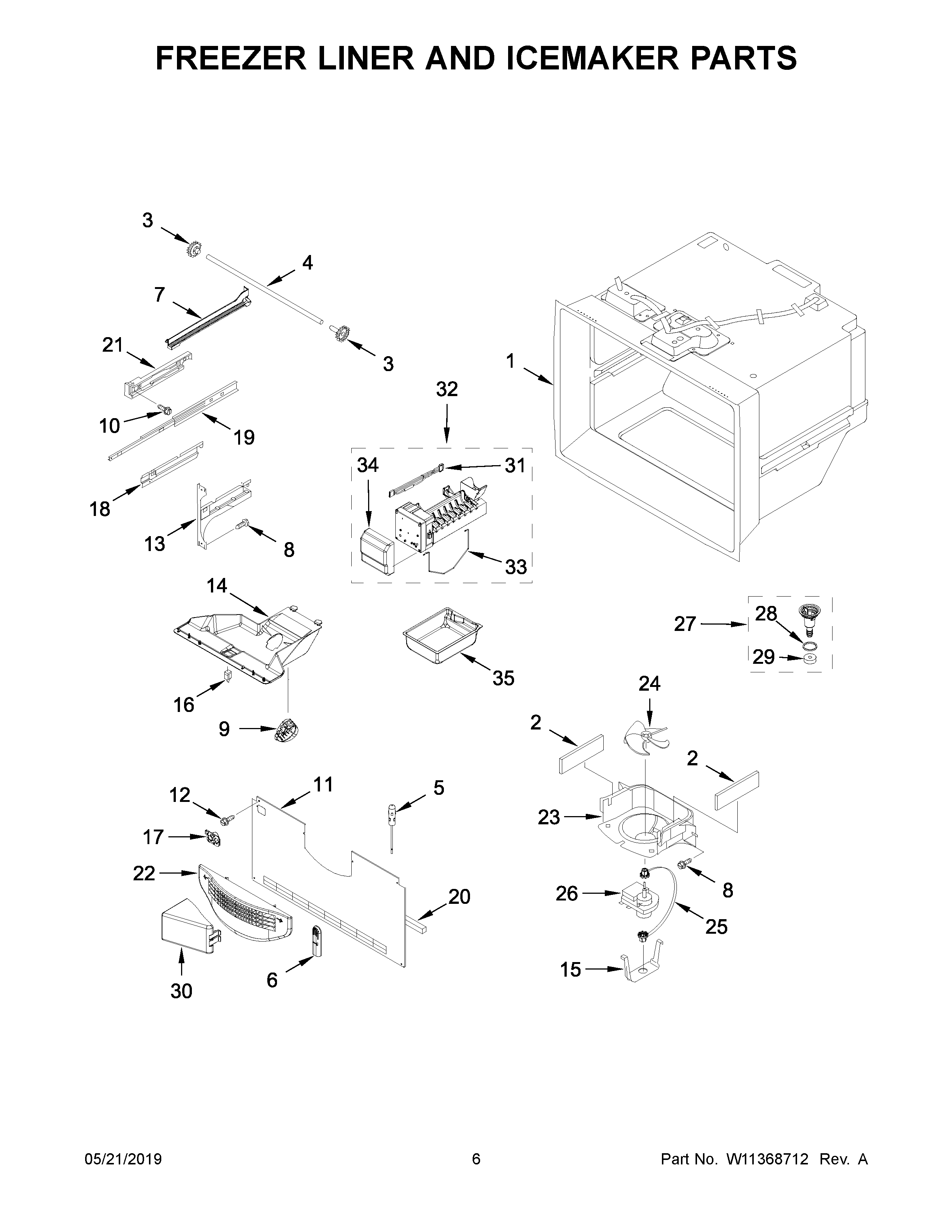

MBF2258FEZ03 04 – FREEZER LINER AND ICEMAKER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2Gasket, Bottom
312002497 Whirlpool Refrigerator Drawer Gear Kit
4SHAFT, RACK
5MAY 12791409SP
6MAY 12815301
7AMAY W10516602
7MAY W10516603
8Screw (8)
9MAY W11251749
10Screw (6)
11MAY W10308415
12MAY 12990101
13MAY W10330991
13AMAY W10330993
14MODULE-FZ LIGHT
15CLIP, EVAP. MOTOR
16SWITCH, LIGHT
17MAY W11261524
18CRADLE-BASKET (LEFT HAND)
18ACRADLE-BASKET (RIGHT HAND)
19MAY W10120018
20MAY A3189395
21ADAPTER, SLIDE (LEFT HAND)
21AADAPTER, SLIDE (RIGHT HAND)
22Grille, Fz Air
23SHROUD, EVAP.FAN
24Blade, Fan (Evaporator)
25MAY W10121318
26MAY W10128551
27MAY W10662407
28MAY M0500703
29Gasket
30MAY W10157765
31MAY W10793621
32ASSEMBLY, ICEMAKER (COMPLETE)
33ARM-SHUT OFF
34COVER
35MAY W10171529N
