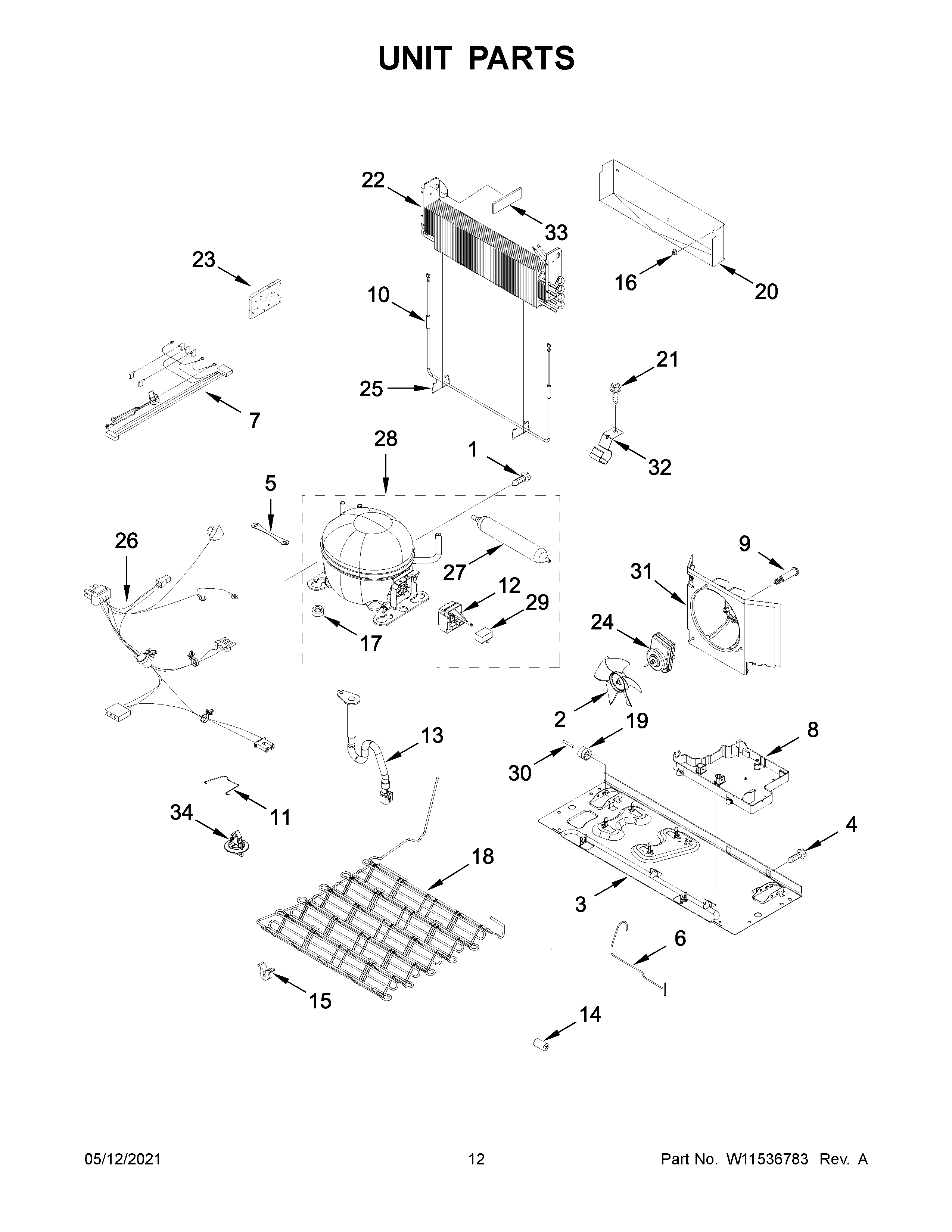

MBF2258FEZ06 07 – UNIT PARTS

MBF2258FEZ06 07 – UNIT PARTS

Written by

in

MBF2258FEZ06 07 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	12992301 Whirlpool Refrigerator Screw
2	WP12825803 Whirlpool Refrigerator Fan Blade
3	W10480110 Whirlpool Refrigerator Plate
4	67006425 Whirlpool Refrigerator Screw
5	W10236396 Whirlpool Refrigerator Strap
6	W11566600 Whirlpool Tube
7	W11524653 Whirlpool Refrigerator Wire Harness
8	WPW10655367 Whirlpool Refrigerator Drip Pan
9	W10829281 Whirlpool Refrigerator Screw
10	W11524652 Whirlpool Refrigerator Heater
11	WPL W11379613
12	W11524472 Whirlpool Refrigerator Start Device
13	W10619951 Whirlpool Drain Tube with Grommet
14	W10852725 Whirlpool Refrigerator Grommet
15	WPW10137529 Whirlpool Refrigerator Grommet
16	CLIP, EVAP (2)
17	WPW10169124 Whirlpool Refrigerator Grommet
18B	W11504432 Whirlpool Refrigerator Coupler
18A	W11506623 Whirlpool Refrigerator Coupler
18	W11482308 Whirlpool Refrigerator Condenser
19	WP67005149 Whirlpool Roller
20	TRAY, DRIP
21	Screw
22A	W11504423 Whirlpool Refrigerator Coupler
22	W11598432 Whirlpool Refrigerator Evaporator Repair
22B	W11504415 Whirlpool Refrigerator Coupler
23	W11553819 Whirlpool Refrigerator Insulation
24	W11613295 Whirlpool Condenser Motor
25	W11380964 Whirlpool Clip Assembly
26	W11741475 Whirlpool Wire Harness
27	W11109499 Whirlpool Refrigerator Tube
27A	W11504445 Whirlpool Refrigerator Coupler
27B	W11504447 Whirlpool Refrigerator Coupler
28B	W11504431 Whirlpool Microwave Coupler
28A	W11504416 Whirlpool Refrigerator Coupler
28D	W11506635 Whirlpool Refrigerator Valve Coupler
28C	W11506621 Whirlpool Refrigerator Coupler
28	W11547313 Whirlpool Refrigerator Compressor
29	WPW10350564 Whirlpool Refrigerator Freezer Capacitor
30	67006434 Whirlpool Axle Pin
31	W11556315 Whirlpool Shroud
32	W10281329 Whirlpool Clamp
33	W11451451 Whirlpool Refrigerator Gasket
34	W10815863 Whirlpool Clip
