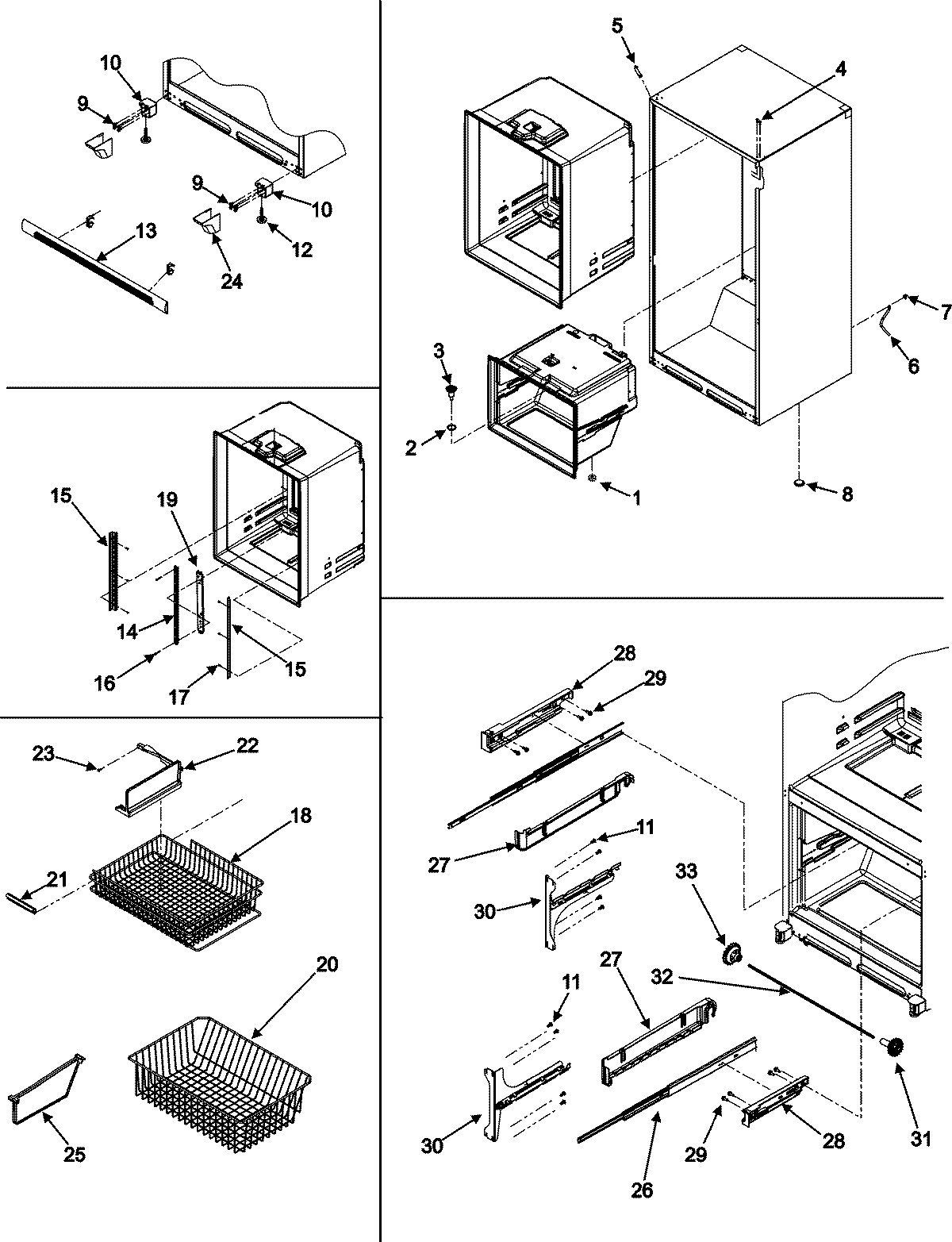

MBF2258HEB 08 – INTERIOR CABINET & FREEZER SHELVES

Products

Position	Product
1	Gasket
2	MAY M0500703
3	MAY D7753903
4	MAY A4539607
5	67003485 Whirlpool Refrigerator Corner Cover (Black)
6	MAY 67001066
7	67001067 Whirlpool Refrigerator Drain Tube Clip
8	A3076901 Whirlpool Refrigerator Plug
9	MAY 67003858
10	HINGE, BOTTOM E-CT (BLK)
11	MAY M0211018
12	MAY 10354001
13	Clip, Grille
13	Grille Assembly (Includes Clips) (Black)
14	Ladder, Center
15	MAY 67004440
15	MAY 67004441
16	MAY M0231425
17	SCREW, SM
18	MAY 67002918
19	MAY 67003721
20	MAY 67004260
21	HANDLE, BASKET/SHELF
22	MAY 67001723
23	MAY 67001310
24	Cover, Lw Hinge (Black)
25	MAY 67004064
26	MAY 67004065
27	WPW10280608 Whirlpool Refrigerator Bracket
27	WPW10280613 Whirlpool Refrigerator Bracket
28	MAY 67004011
28	MAY 67004010
29	SCREW 1“
30	BRACKET, DRAWER SLIDE (RT)
30	BRACKET, DRAWER SLIDE (LT)
31	MAY 67004066
32	SHAFT, RACK
33	MAY 67004016
