MBF2258HEQ 10 – REFRIGERATOR DOOR

MBF2258HEQ 10 – REFRIGERATOR DOOR

Written by

in

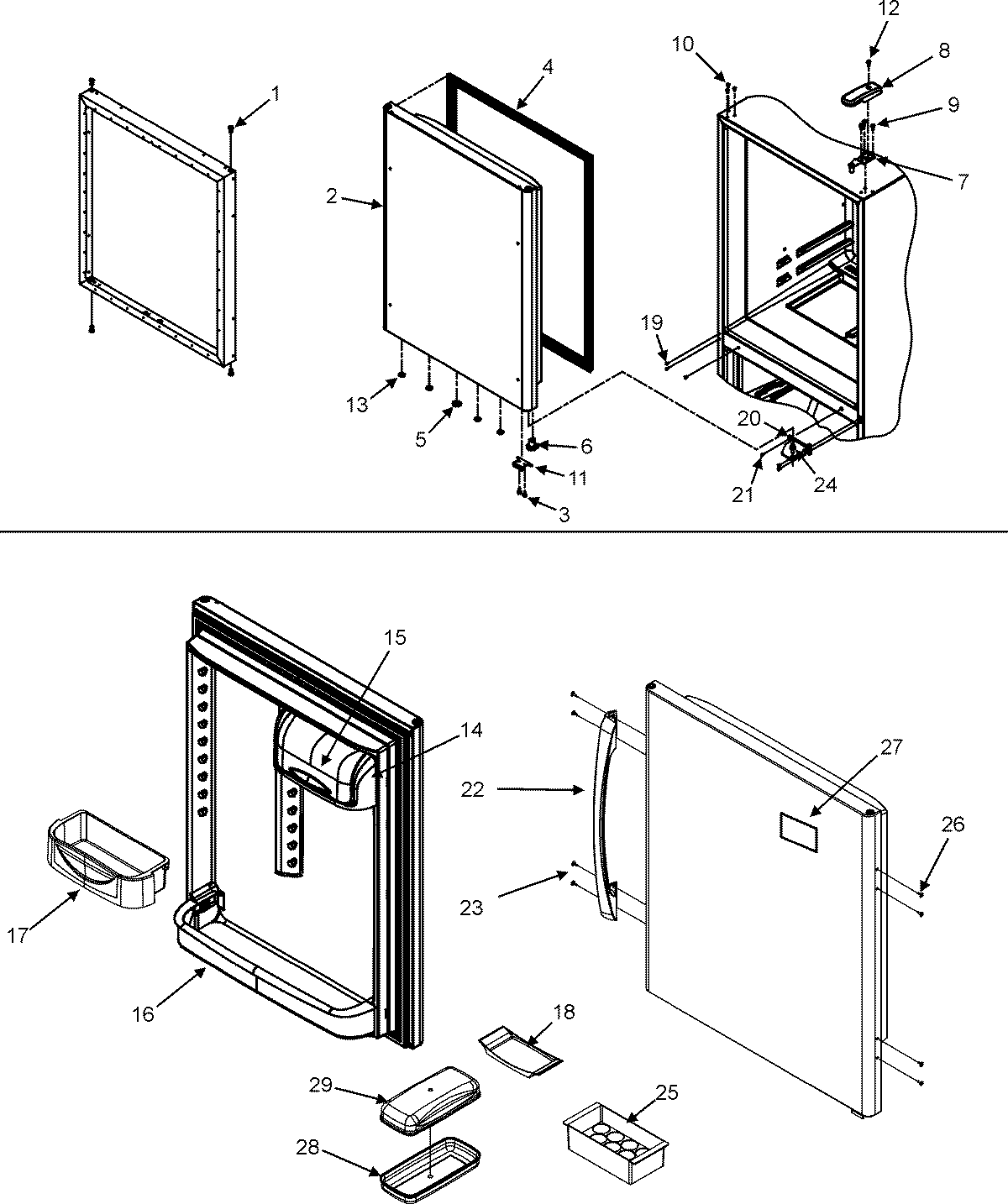

MBF2258HEQ 10 – REFRIGERATOR DOOR

Products

PositionProduct
1WP67004977 Whirlpool Refrigerator Door Hinge Bushing
2MAY 67004361
4W10443313 Whirlpool Door Gasket
5MAY A3080002
6WP67003638 Whirlpool Closing Cam
7WP12566606ED Whirlpool Refrigerator Door Hinge
8MAY 67001013
9MAY M0238731
10MAY M0310738
1167003781 Whirlpool Refrigerator Door Stop (BSQ)
12MAY M0211533
1310712401 Whirlpool Refrigerator Vent Plug (White)
14WP67001279 Whirlpool Refrigerator Dairy Tray
15WP67003637 Whirlpool Dairy Door
16RETAINER, DOOR
1767004040 Whirlpool Refrigerator Bucket Door
18MAY 29936-2
19WP489349 Whirlpool Refrigerator Screw
20WP12607103WD Whirlpool Refrigerator Center Hinge
21MAY M0226233
22MAY 67004402
2367004707 Whirlpool Refrigerator Hi Torque Screw (BSQ)
24WP67006642 Whirlpool Refrigerator Pin
25MAY 67215-2
26MAY 12246604
272324038 Whirlpool Refrigerator Nameplate
28MAY 67004404
29MAY 67004405
