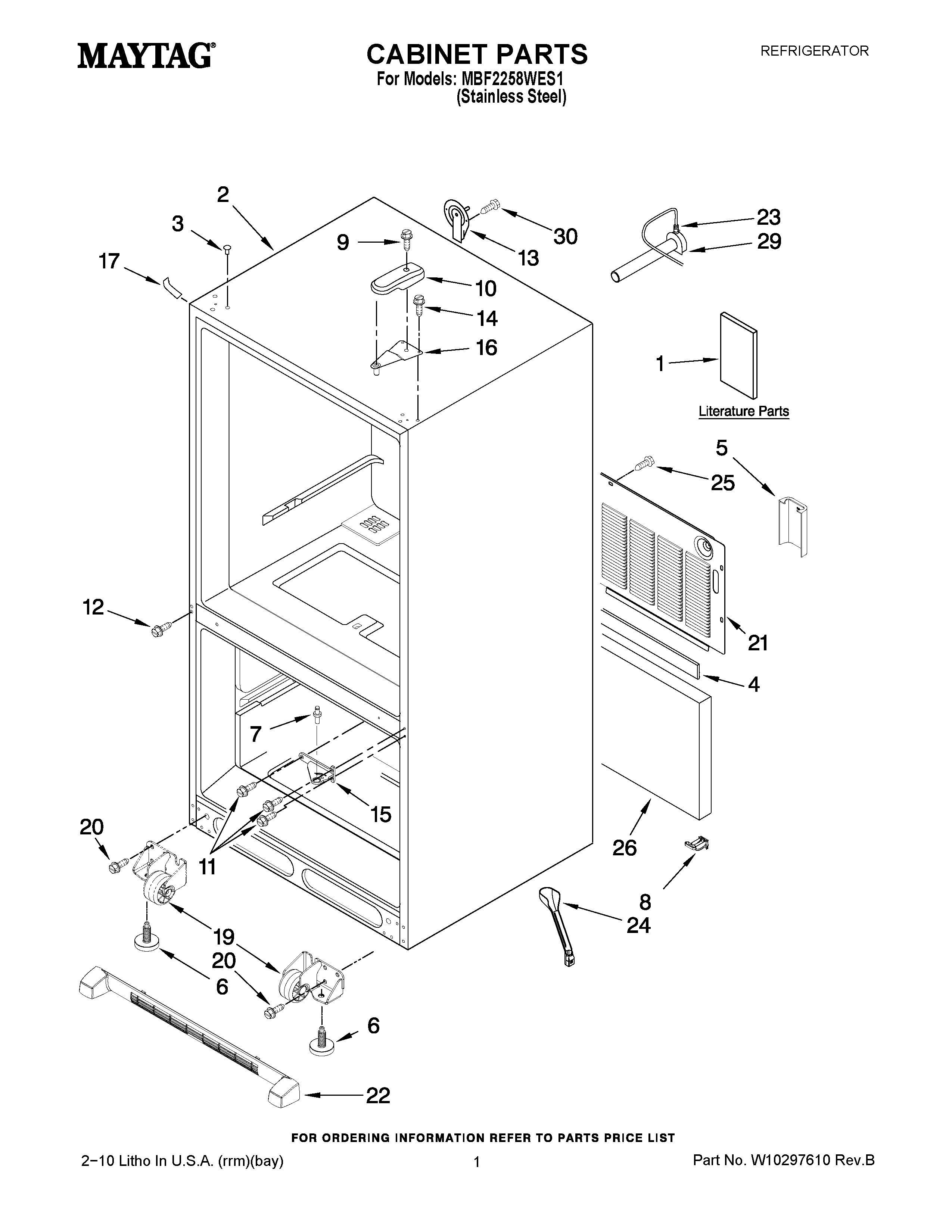

MBF2258WES1 01 – CABINET PARTS

MBF2258WES1 01 – CABINET PARTS

Written by

in

MBF2258WES1 01 – CABINET PARTS

Products

PositionProduct
1MAY W10258250
1OWNERS MANUAL
1MAY W10259132
2LINER (NOT A SERVICEABLE PART)
3MAY M0310731
4MAY B5759655
5GUARD-WATER VALVE
6Brake, Foot
7MAY 10351006
8MAY W10216614
9MAY 12992602
10COVER, HINGE(BLACK)
11MAY 12990101
12Screw (8)
13MAY 12726003
14SCREW (6)
15MAY 12607104ED
16Hinge, Top
17COVER, CORNER (BLACK)
19ROLLER ASSY. (FRONT) (RIGHT)
19ROLLER ASSY. (FRONT) (LEFT)
20Screw (8)
21MAY W10210979
22MAY W10236196
23CLIP
24MAY W10210988
25SCREW (10)
26Insulation, Sound
29MAY 10463203SP
30MAY 12990504
