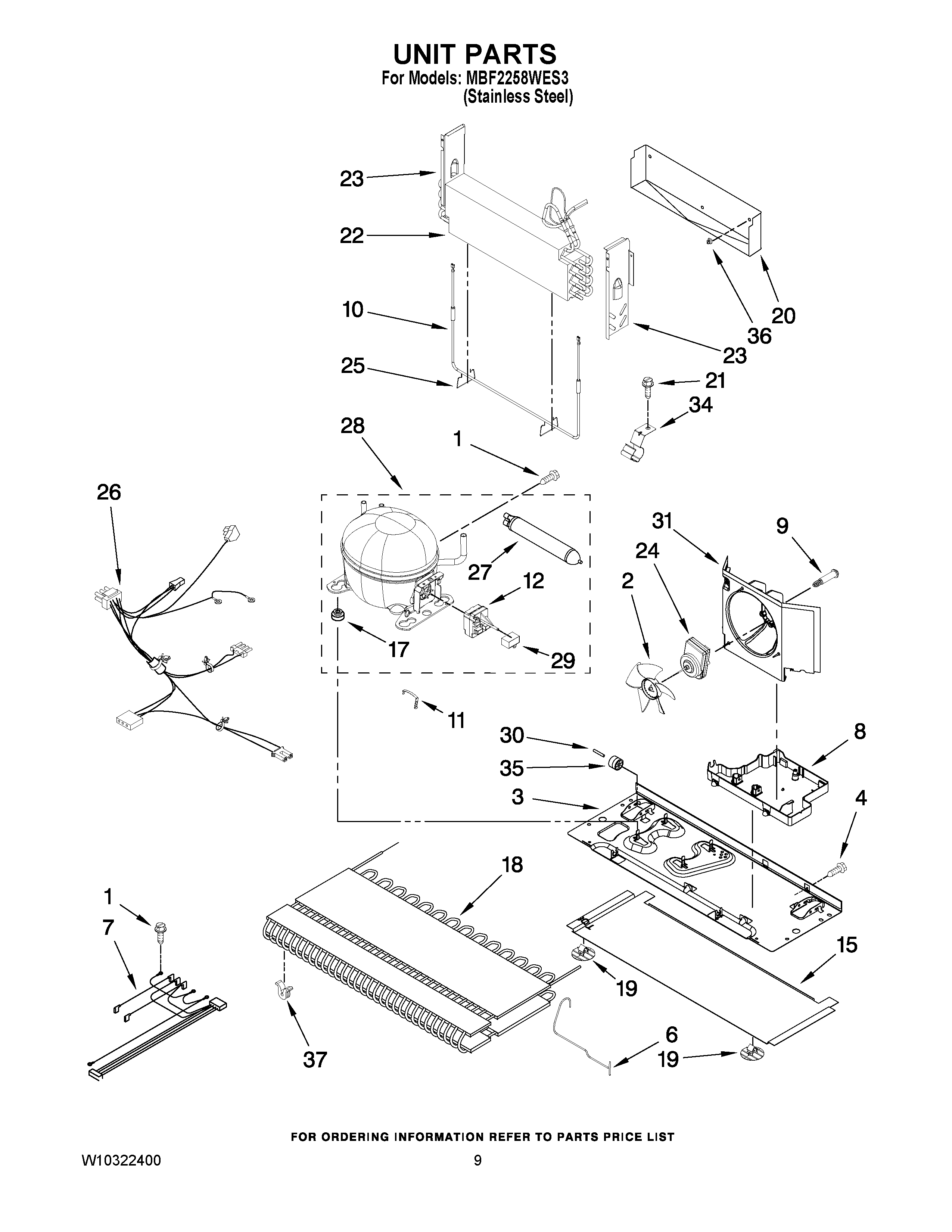

MBF2258WES3 06 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (1/2“)
NI	Valve, Access (5/8“)
NI	Valve, Access (3/4“)
NI	LINER (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/4“)
1	MAY 12992301
2	MAY 12825803
3	MAY W10210983
4	SCREW (10)
6	MAY W10217748
7	HARNESS, EVAPORATOR (INCLUDES HEATER)
8	MAY W10296784
9	MAY W10216919
10	MAY 12729128
11	Clip, Retaining
12	START DEVICE, COMBINATION (START RELAY AND OVERLOAD FOR PRODUCTION COMPRESSOR ONLY) (PRODUCTION)
12	MAY W10136414
15	MAY W10206337
17	Grommet (4)
18	MAY W10135027
19	MAY W10206339
20	MAY W10292802
21	MAY 12990701
22	MAY 12726402
23	Dam (Right Side)
23	DAM (LEFT SIDE)
24	MAY W10239053
25	W11673433 Whirlpool Clip
26	HARNESS, UNIT (INCLUDES POWER CORD)
27	Drier
28	Compressor (Includes items 11,12,17,27,29)
29	Capacitator (Production)
30	Axle, Roller (2)
31	SHROUD
34	MAY 10547003
35	Roller (2)
36	MAY 10623002
37	GROMMET, COND (4)
