MBF2258WES3 07 – SHELF PARTS – Aparts

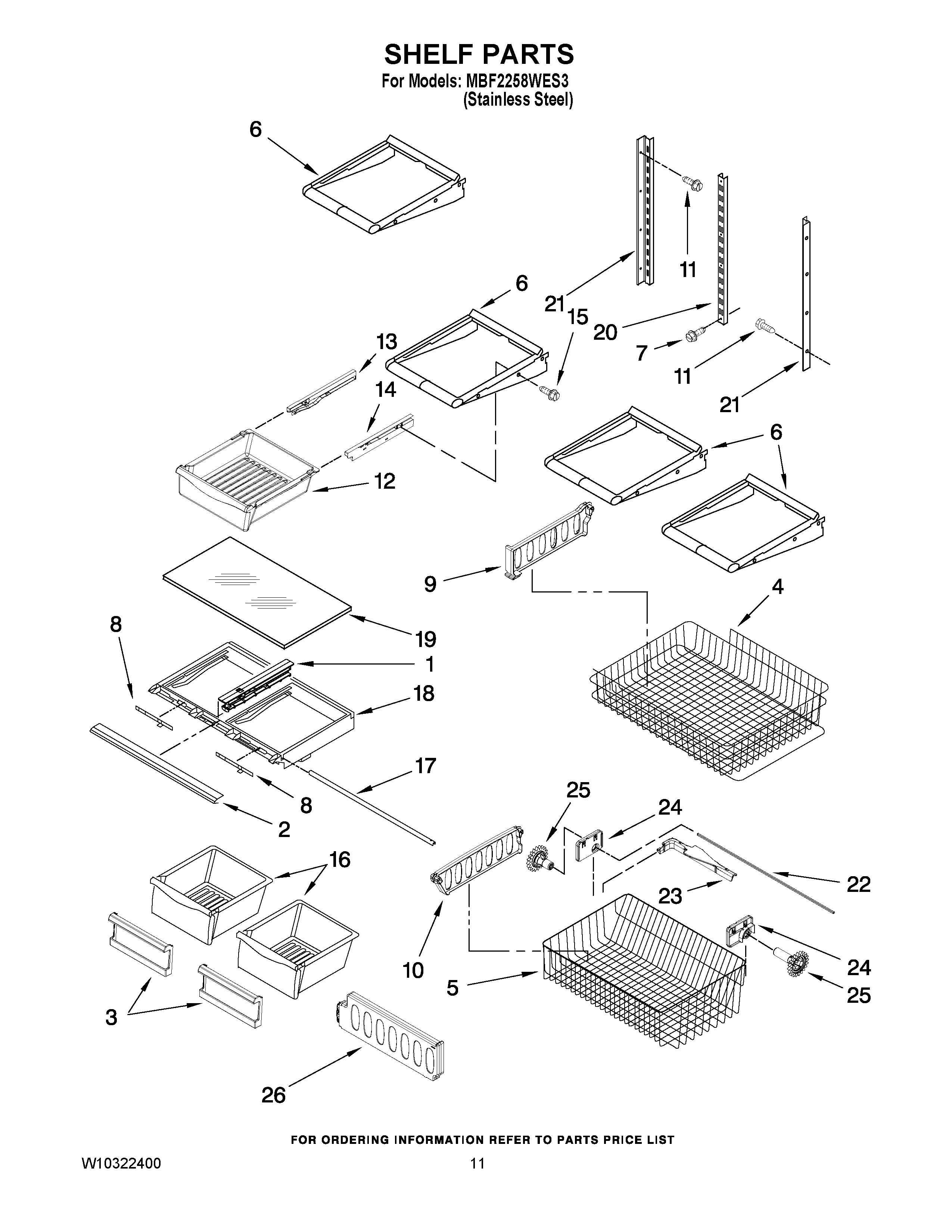

MBF2258WES3 07 – SHELF PARTS

Products

Position	Product
1	Rail, Center Crisper
2	TRIM, CRISPER
3	MAY 12643702SP
4	MAY W10169950
5	MAY W10150038
6	MAY 12463509
7	MAY W10215666
8	MAY 12530805SP
9	Divider, Upper Basket
10	MAY W10205416
11	MAY 12990513
12	PAN, DELI
13	GLIDE, LEFT
14	GLIDE, RIGHT
15	SCREW
16	MAY 12530505SP
17	BRACE, CRISPER FRAME
18	FRAME, CRISPER
19	MAY 12204822
20	MAY W10273463
21	MAY W10251969
22	MAY 12812905WD
23	MAY W10149389N
24	MAY W10233899
24	MAY W10233898
25	MAY W10158749
25	MAY W10146446
26	DIVIDER, UPPER
