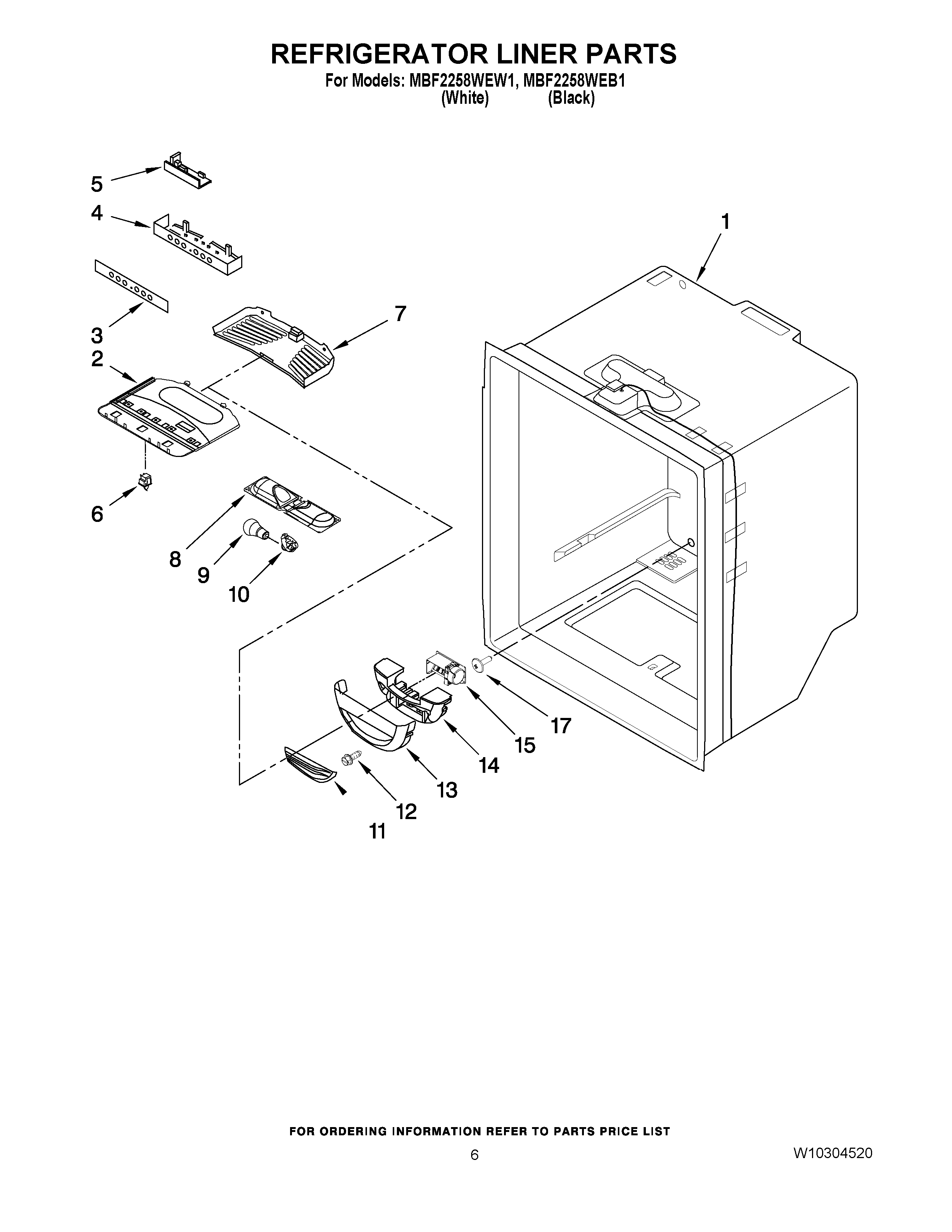

MBF2258WEW1 04 – REFRIGERATOR LINER PARTS

MBF2258WEW1 04 – REFRIGERATOR LINER PARTS

Written by

in

MBF2258WEW1 04 – REFRIGERATOR LINER PARTS

Products

PositionProduct
NIMAY 12868701
1LINER (NOT A SERVICEABLE PART)
2MAY 12806301
3Overlay
4Housing, Electronic Control
5MAY 12784415V
6SWITCH, LIGHT (2)
7MAY 12806501
8MAY 12806601V
9Bulb, Light (2)
10Socket, Light
11MAY 12806801
12MAY 12990604
13MAY 12806701
14INSULATION
15DAMPER, CONTROL
17PLUG, BUTTON
