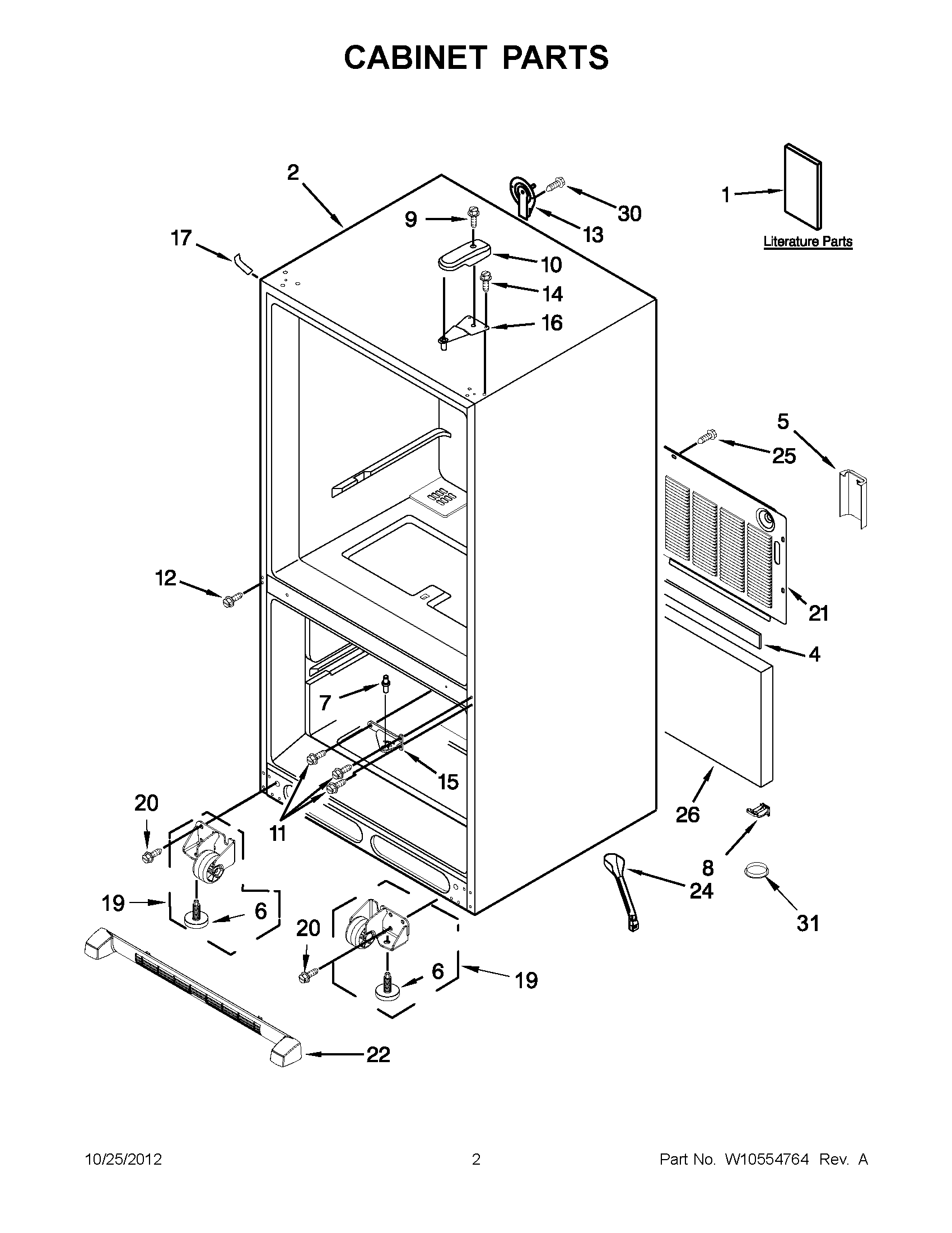

MBF2258XEB5 01 – CABINET PARTS

Products

Position	Product
1	MAY W10366206SP
1	MAY W10517966
1	MAY W10325962
2	LINER (NOT A SERVICEABLE PART)
4	MAY B5759655
5	GUARD-WATER VALVE
6	Brake, Foot
7	MAY 10351006
8	MAY W10485986
9	MAY 12992602
10	COVER, HINGE(BLACK)
10	MAY 12477601W
11	MAY 12990101
12	Screw (8)
13	MAY 12726003
14	SCREW (6)
15	MAY 12607104ED
15	MAY 12607103WD
16	MAY 12566606ED
17	COVER, CORNER (BLACK)
17	Cover, Corner (2) (White)
19	ROLLER ASSEMBLY (LEFT HAND)
19	ROLLER ASSEMBLY (RIGHT HAND)
20	Screw (8)
21	MAY W10210979
22	GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK)
22	GRILLE ASSEMBLY (INCLUDES CLIPS) (WHITE)
24	TUBE-DRAIN
25	SCREW (10)
26	Insulation, Sound
30	MAY 12990504
31	A3076901 Whirlpool Refrigerator Plug
