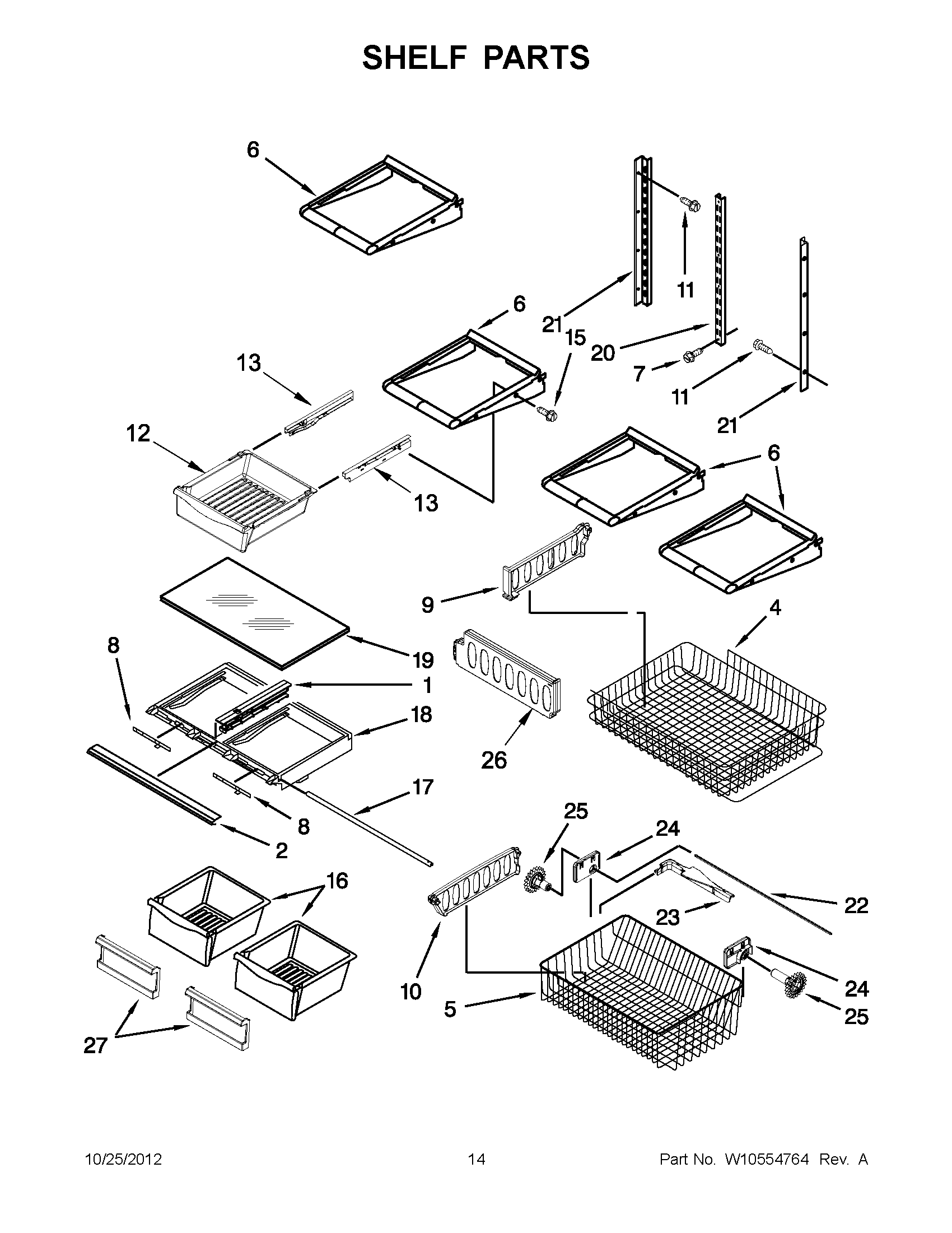

MBF2258XEB5 07 – SHELF PARTS

MBF2258XEB5 07 – SHELF PARTS

Written by

in

MBF2258XEB5 07 – SHELF PARTS

Products

Position	Product
1	MAY 12530701N
2	MAY W10231343N
4	BASKET, UPPER
5	MAY W10503183
6	SHELF (3)
7	MAY W10215666
8	MAY 12530805SP
9	Divider, Upper Basket
10	Divider, Lower Basket
11	MAY 12990513
12	MAY 12656404V
13	MAY 12656601V
13	MAY 12656602V
15	MAY 12990302V
16	MAY 12530505N
17	BRACE, CRISPER FRAME
18	FRAME, CRISPER
19	MAY 12204822N
20	MAY W10273463
21	MAY W10251969
22	MAY 12812905WD
23	MAY W10149389N
24	MOUNT-GEAR (LEFT HAND)
24	MOUNT-GEAR (RIGHT HAND)
25	MAY W10474716
25	MAY W10474715
26	DIVIDER, UPPER
27	FRAME, CRISPER
