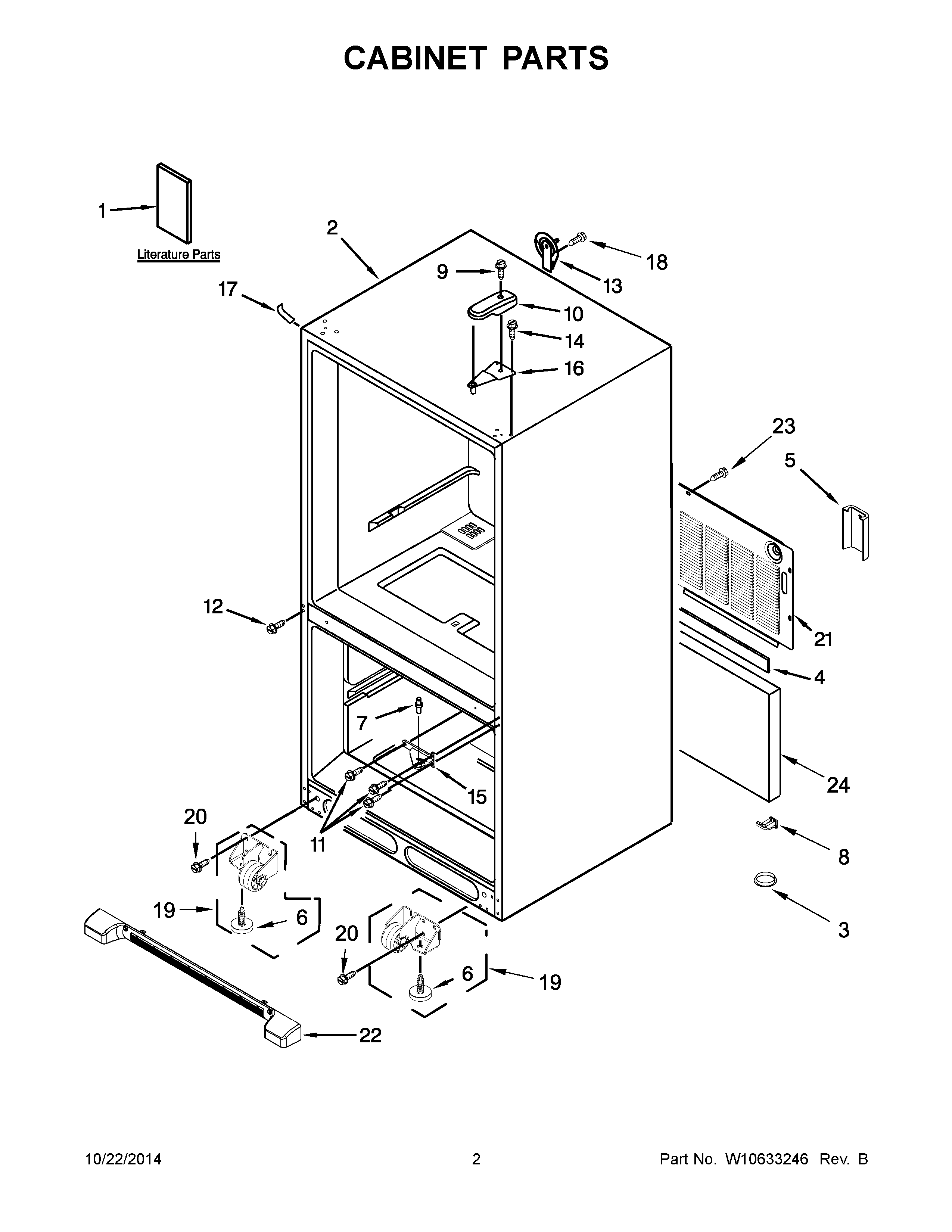

MBF2258XEB6 02 – CABINET PARTS

Products

Position	Product
1	MAY W10366206SP
1A	MAY W10325962
1B	MAY W10517966
2	LINER (NOT A SERVICEABLE PART)
3	A3076901 Whirlpool Refrigerator Plug
4	MAY B5759655
5	GUARD-WATER VALVE
6	Brake, Foot
7	MAY 10351006
8	MAY W10485986
9	MAY 12992602
10	MAY 12477601W
10A	COVER, HINGE(BLACK)
11	MAY 12990101
12	Screw (8)
13	MAY 12726003
14	SCREW (6)
15A	MAY 12607104ED
15	MAY 12607103WD
16	MAY 12566606ED
17	Cover, Corner (2) (White)
17A	COVER, CORNER (BLACK)
18	MAY 12990504
19	ROLLER ASSEMBLY (LEFT HAND)
19A	ROLLER ASSEMBLY (RIGHT HAND)
20	Screw (8)
21	MAY W10210979
22	MAY W10534161N
22A	GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK)
23	SCREW (10)
24	Insulation, Sound
