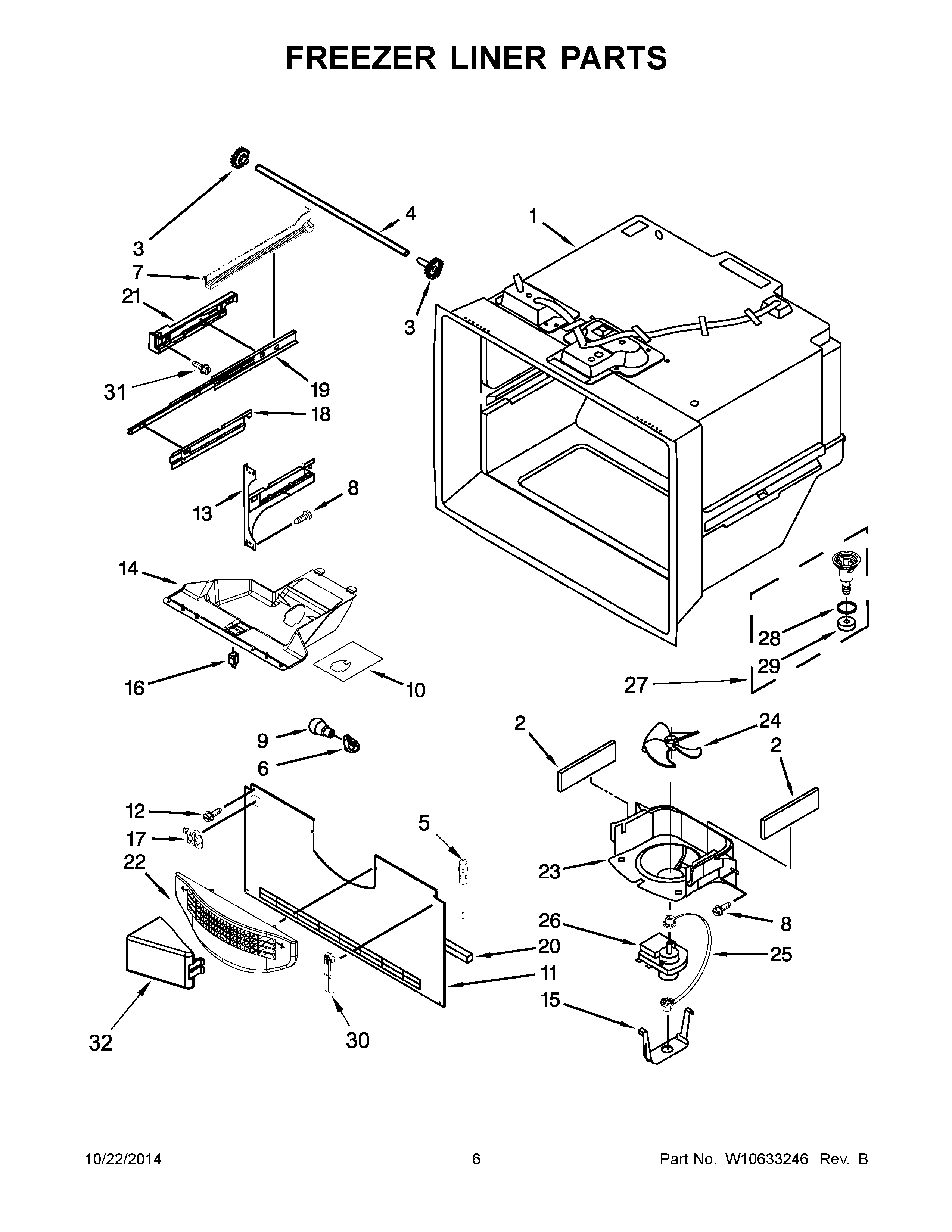

MBF2258XEB6 04 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Gasket, Bottom
3	12002497 Whirlpool Refrigerator Drawer Gear Kit
4	MAY 12812902WD
5	MAY 12791409SP
6	W11447232 Whirlpool Refrigerator Socket
7	MAY W10516603
7A	MAY W10516602
8	Screw (8)
9	BULB, LIGHT
10	FOIL-FZ LIGHT
11	MAY W10308415
12	MAY 12990101
13	MAY W10330991
13A	MAY W10330993
14	MODULE-FZ LIGHT
15	CLIP, EVAP. MOTOR
16	MAY 12466105
17	MAY 12932103
18	CRADLE-BASKET (LEFT HAND)
18A	CRADLE-BASKET (RIGHT HAND)
19	MAY W10120018
20	Gasket, Bottom
21	ADAPTER, SLIDE (LEFT HAND)
21A	ADAPTER, SLIDE (RIGHT HAND)
22	Grille, Fz Air
23	SHROUD, EVAP.FAN
24	Blade, Fan (Evaporator)
25	MAY W10121318
26	MAY W10128551
27	MAY W10662407
28	MAY M0500703
29	Gasket
30	MAY 12815301
31	Screw (6)
32	MAY W10157765
