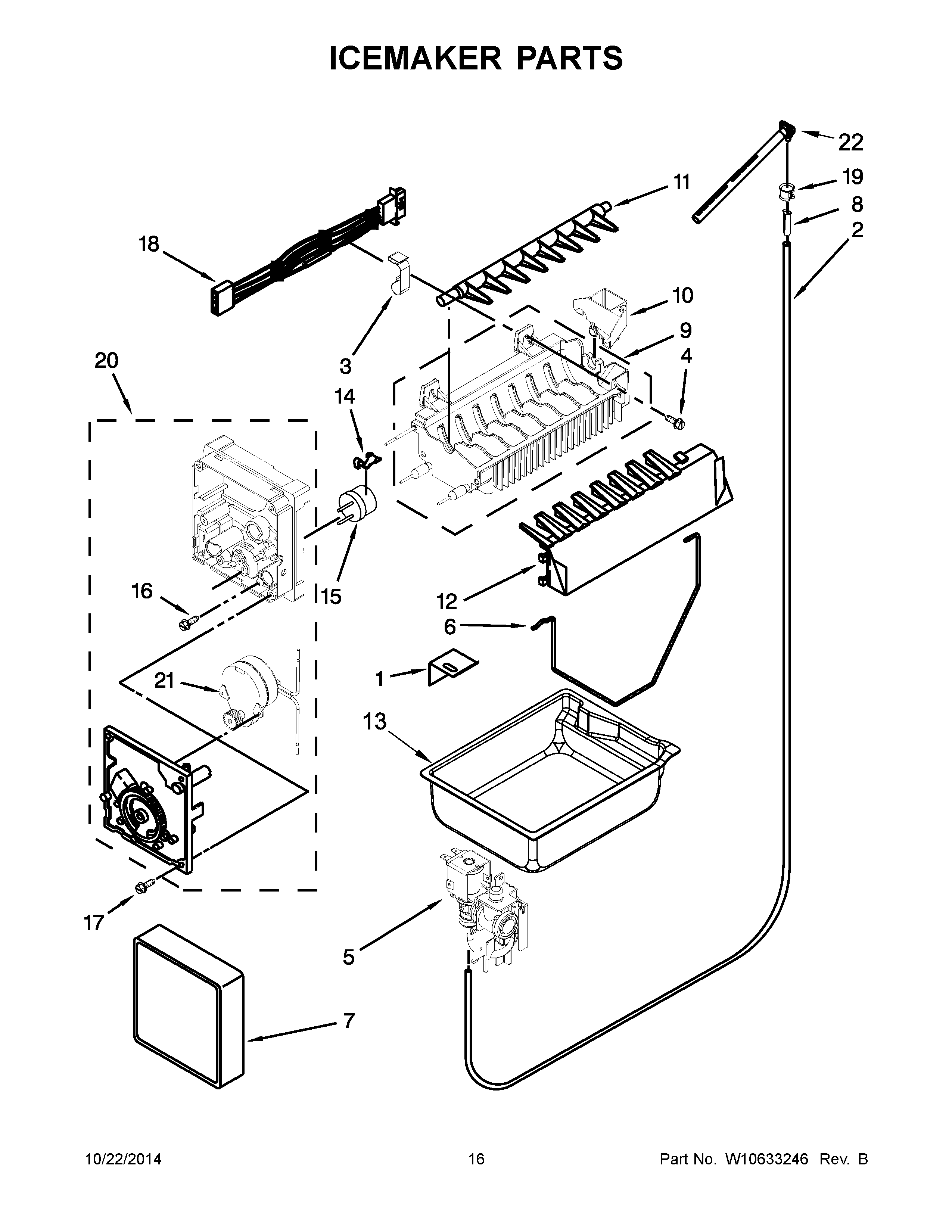

MBF2258XEB6 09 – ICEMAKER PARTS

Products

Position	Product
1	MAY 2256086
2	MAY B5705333
3	CLAMP, WIRE
4	Screw (3)
5	MAY W10498976
6	ARM, SHUT OFF
7	MAY W10377174
8	MAY A3223101
9	ASSEMBLY, MOLD AND HEATER
10	MAY W10410073
11	MAY W10318914
12	ICE STRIPPER
13	MAY W10171529N
14	Clip
15	Thermostat (Also Order 542369 Cement Alumilastic)
16	MAY 8533917
17	SCREW, 8 X 1/2
18	MAY W10458985
19	Clip
20	ASSEMBLY, MODULE AND MOTOR
21	LINER (NOT A SERVICEABLE PART)
22	MAY 10463203
100	ASSEMBLY, ICEMAKER (COMPLETE)
